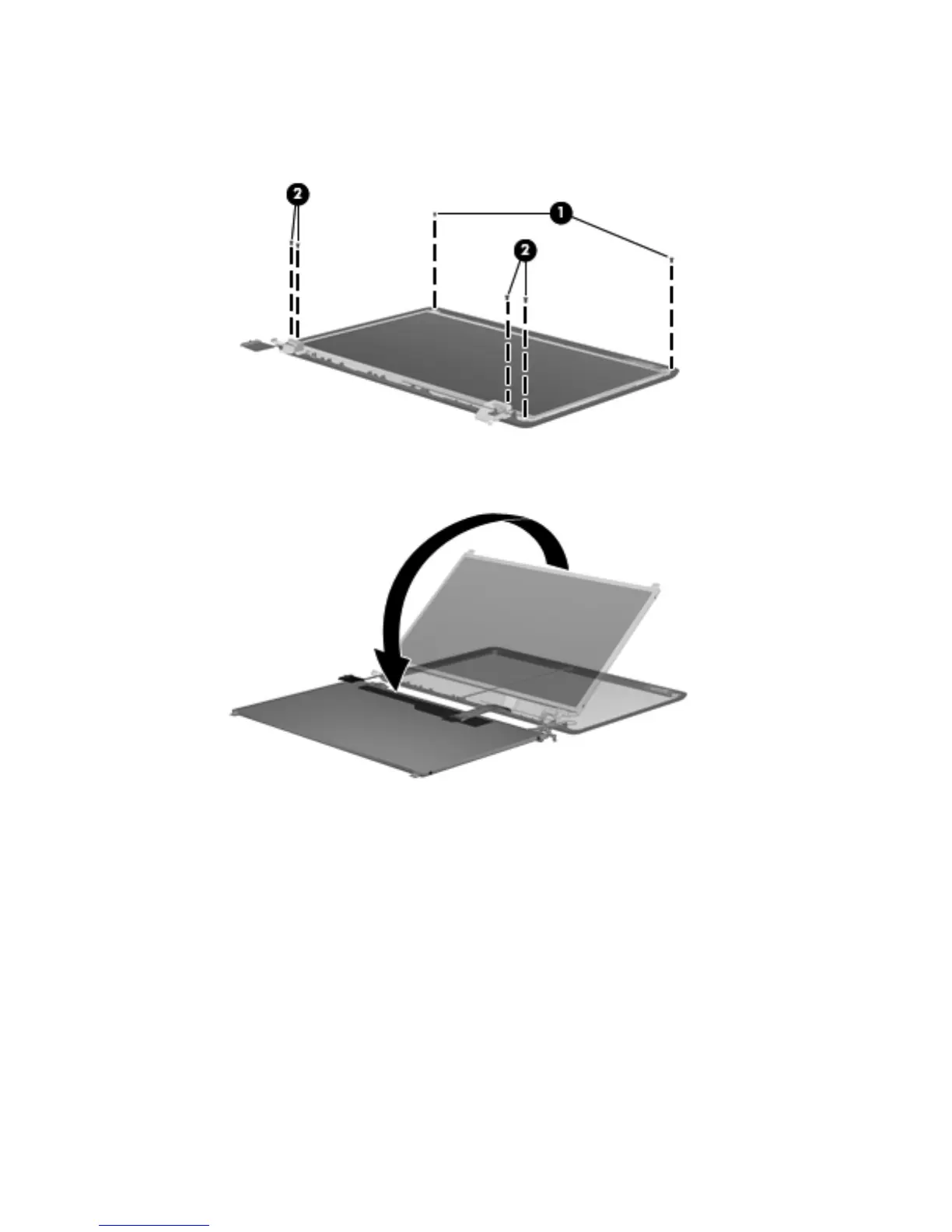

8. If it is necessary to replace the display panel:
a. Remove the two Phillips PM2.5×4.0 screws (1) and four Phillips PM2.5×5.0 screws (2) that
secure the display panel to the display enclosure.
b. Lift the top edge of the display panel, and then swing it up and forward until it rests upside
down in front of the display enclosure.
66 Chapter 4 Removal and replacement procedures
