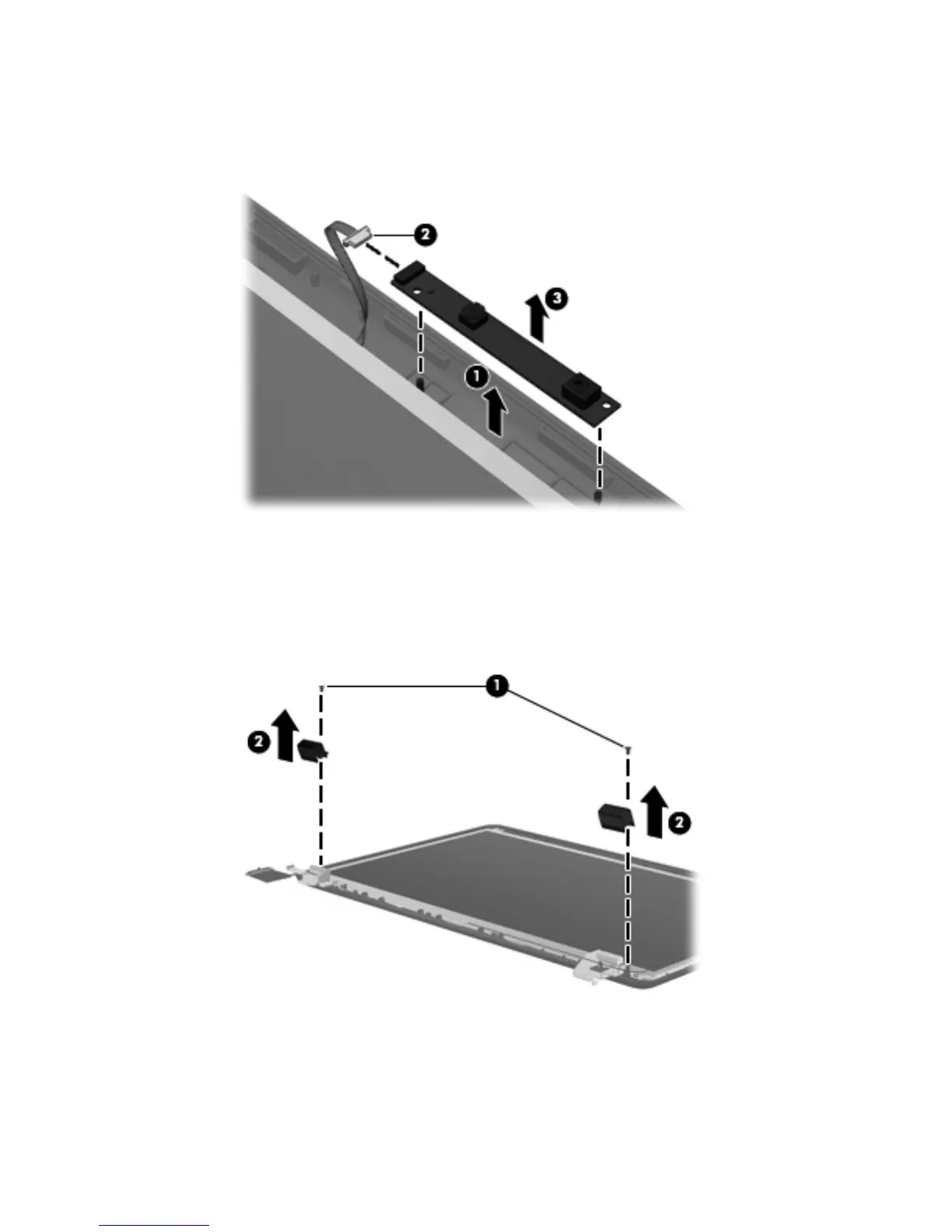

c. Remove the webcam/microphone module (3) or microphone module. The webcam/
microphone module is available using spare part number 646138-001. The microphone
module is available using spare part number 645980-001.
7. If it is necessary to replace the hinge covers:
a. Remove the two Phillips PM2.5×5.0 (1) screws that secure the hinge covers to the
display enclosure.
b. Remove the hinge covers (2). The hinge covers are available using spare part number
646124-001.
Component replacement procedures 65
