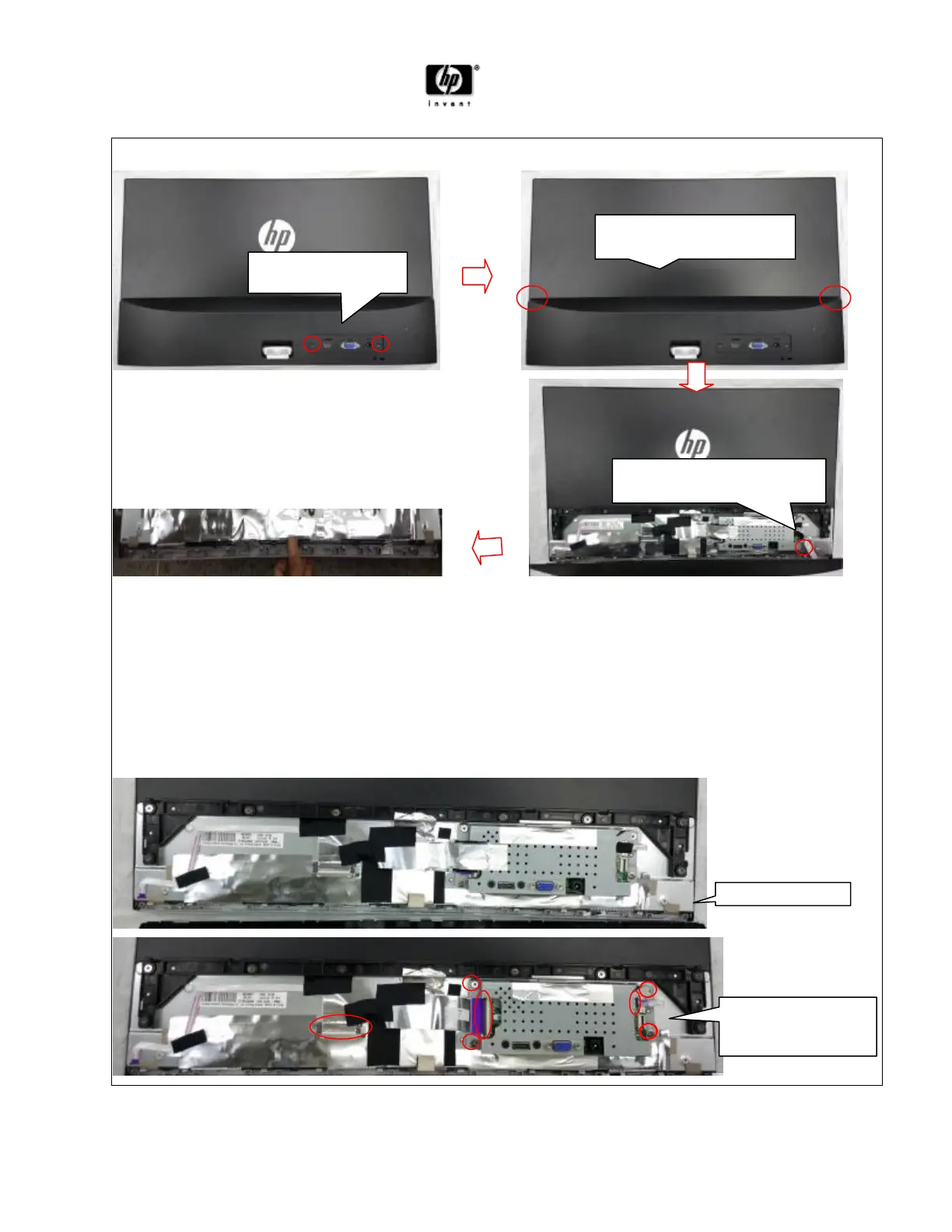

Step 3: To remove the shielding(contain the other material );
(3.1) Remove the acetate tapes covering the LVDS/ LED FFCs;
(3.2) Pull out the LVDS/ LED FFCs to separate the base assembly from the unit;
(3.3) Remove the four screws to separate shielding from CB
(3.4) Dismantle the rear cover supporter
Remove the screws with
Screwdriver
Dismantle the rear cover first
from the two marked position
Remove the 8pin FFC from main
board then remove rear cover
Remove all tapes
Pull out all FFCs
connectors and remove
screws
