HP 27MQ - 3 Illustrated Parts Catalog

7
3 Illustrated parts catalog

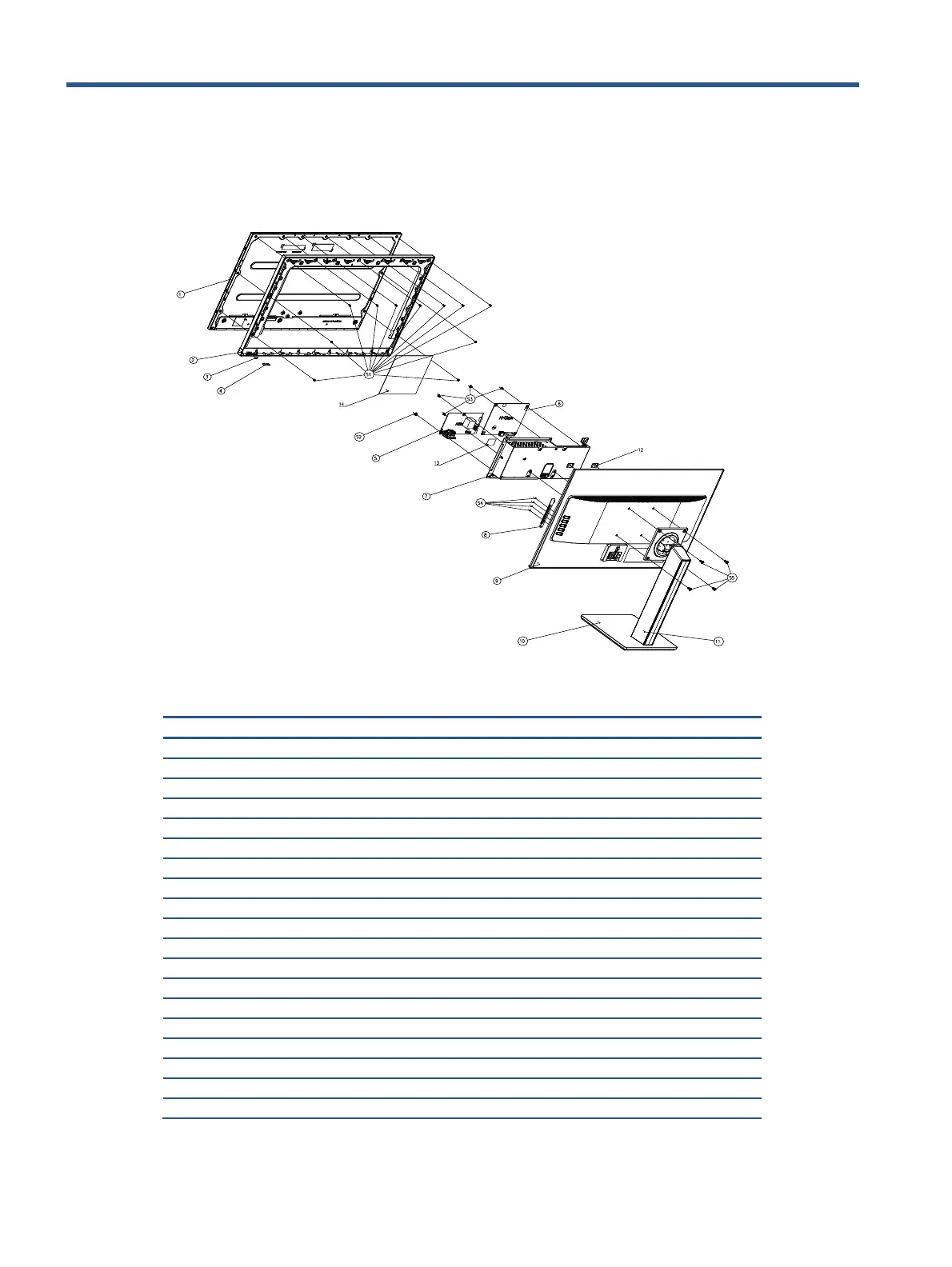

To identify the monitor major components, use this illustration and table.
Item
Description
Qty
1
PANEL
1
2
MIDDLE_FRAME
1
4
LENS
1
5
LED BOARD
1
6
ADAPTER BOARD
1
7
MAIN BOARD
1
8
MAINFRAME
1
9
KEY BOARD
1
10
REAR_COVER
1
10
BASE_ASS’Y
1
11
stand ass'y
1
12
BKT_VESA
1
13
INSULATING SHEET
6
14
INSULATING SHEET
1
S1
SCREW 3 4(MIDDLE FRAME/PANEL)
11
S2
SCREW -- 6mm(POWER BOARD/MAINFRAME)
1
S3
SCREW D3 6(MAIN BOARD/POWER BOARD/MAINFRAME)
5
S4
SCREW(KEY BOARD/MAINFRAME)
4
S5
SCREW M4 10(STAND ASSY/REAR COVER)
4
