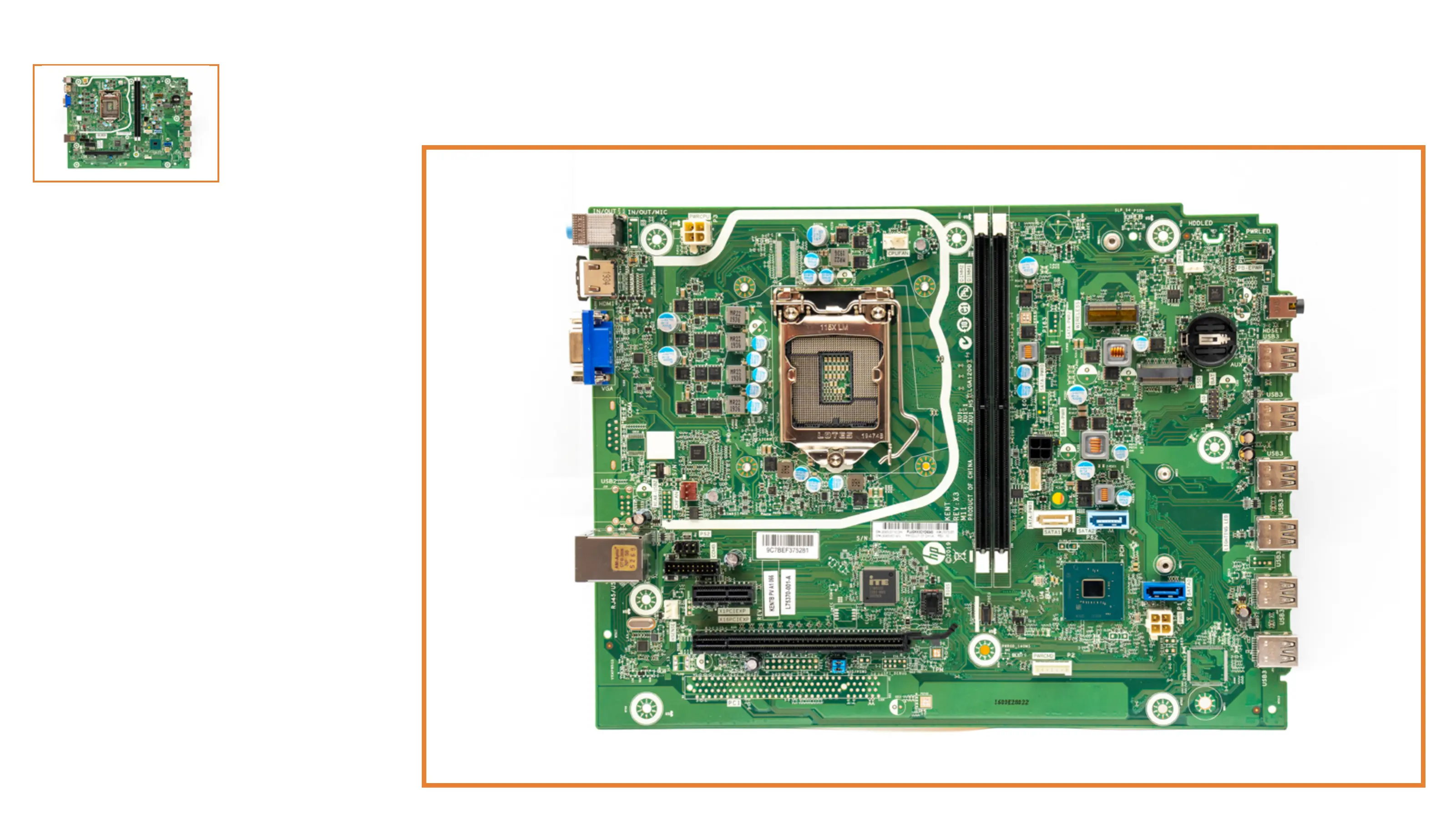

HP 280 G5 Microtower PC - 1 x view

1x view
Back to Welcome Page
1 X
2 X
3 X
4 X
1. USB 2.0 Ports (x2) /RJ45 Port
17. SATA 0/ HDD Connector
9. DIMM DDR4 Slots (x2)
5. HDMI Port
13. Battery
3. CPU Socket
11. M.2 WLAN Socket
7. CPU Power Connector
15. Audio Jack
1
13
7
2
14
8
3
15
9
4
16
10
5
17
11
6
12
3. Chassis Fan Connector
10. HDD Power Connector
6. Headphone/Microphone Jacks
14. Power Button
4. Serial Port
12. M.2 SSD Socket
8. CPU Fan Connector
16. USB 3.1 Ports (x6)
18
19
20
21
22
18. Power connector
19. SATA 1/SATA 2/HDD Connector
20. PCI-Express x16 slot
21. PCI-Express x1 slot
22. Hood Sensor connector
