Remove the keyboard:

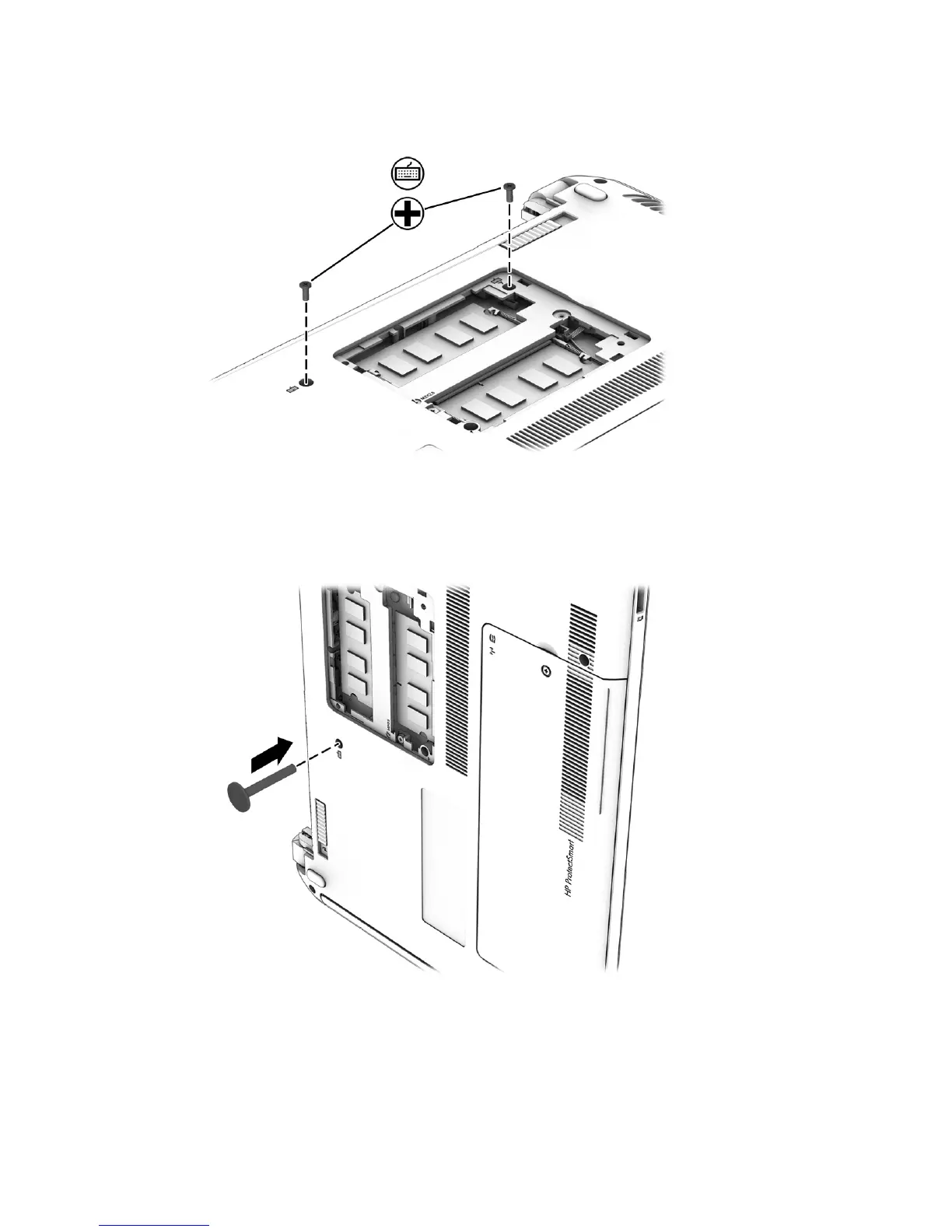

1. Remove the two Phillips PM2.5×6.5 screws that secure the keyboard to the computer.
2. Partially open the computer.
3. Rest and secure the computer on its left side.
4. Insert a thin, plastic tool into the keyboard retention screw hole, and then press on the back of the
keyboard until the keyboard disengages from the computer.
5. Open the computer as far as it will open.
6. Slide the keyboard (1) toward the TouchPad as far as it will slide.
Component replacement procedures 39
