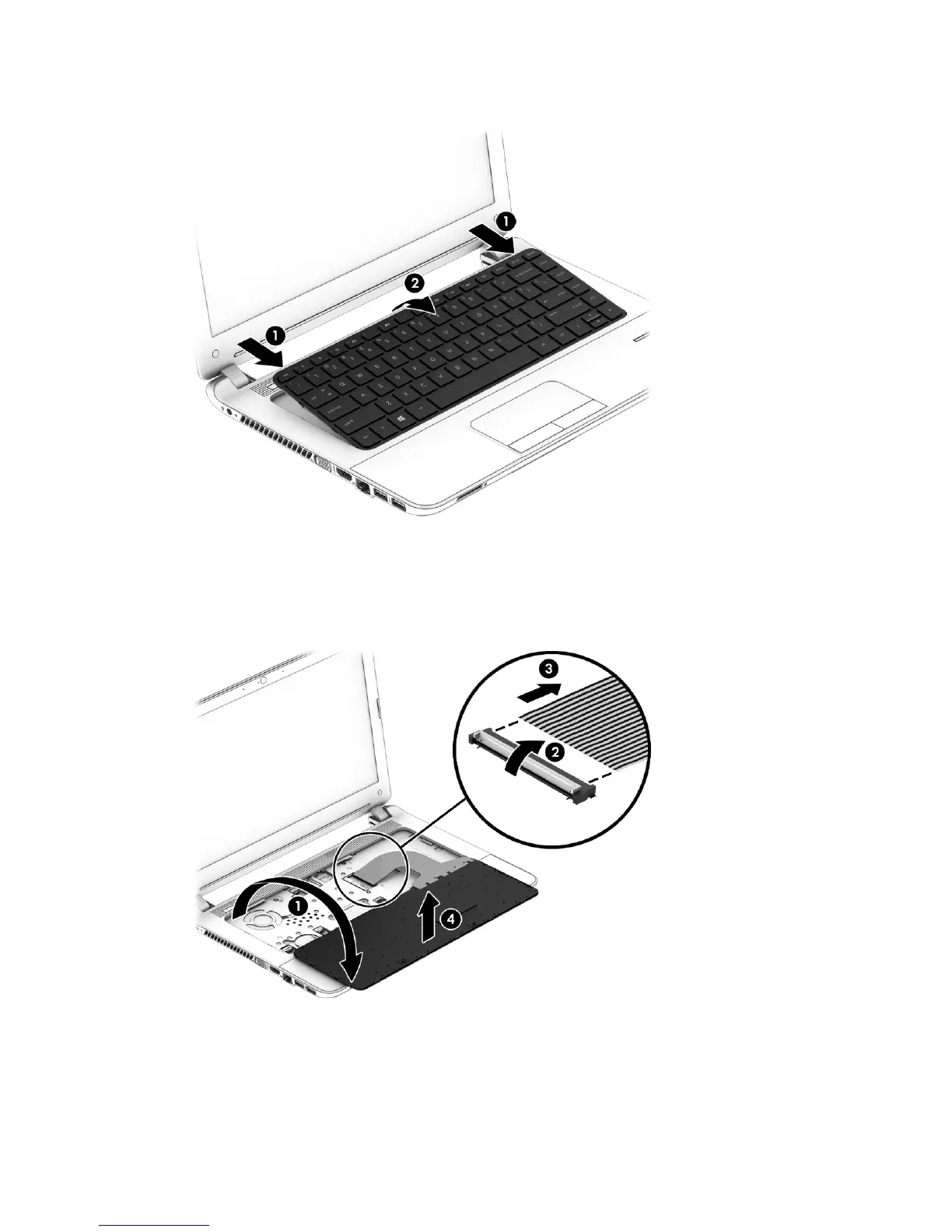

7. Lift the rear edge of the keyboard (2) until it rests at an angle.
8. Swing the keyboard (1) up and forward until it rests upside down on the palm rest.
9. Release the ZIF connector (2) to which the keyboard cable is attached, and then disconnect the
keyboard cable (3) from the system board.
10. Remove the keyboard (4).
Reverse this procedure to install the keyboard.
40 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
