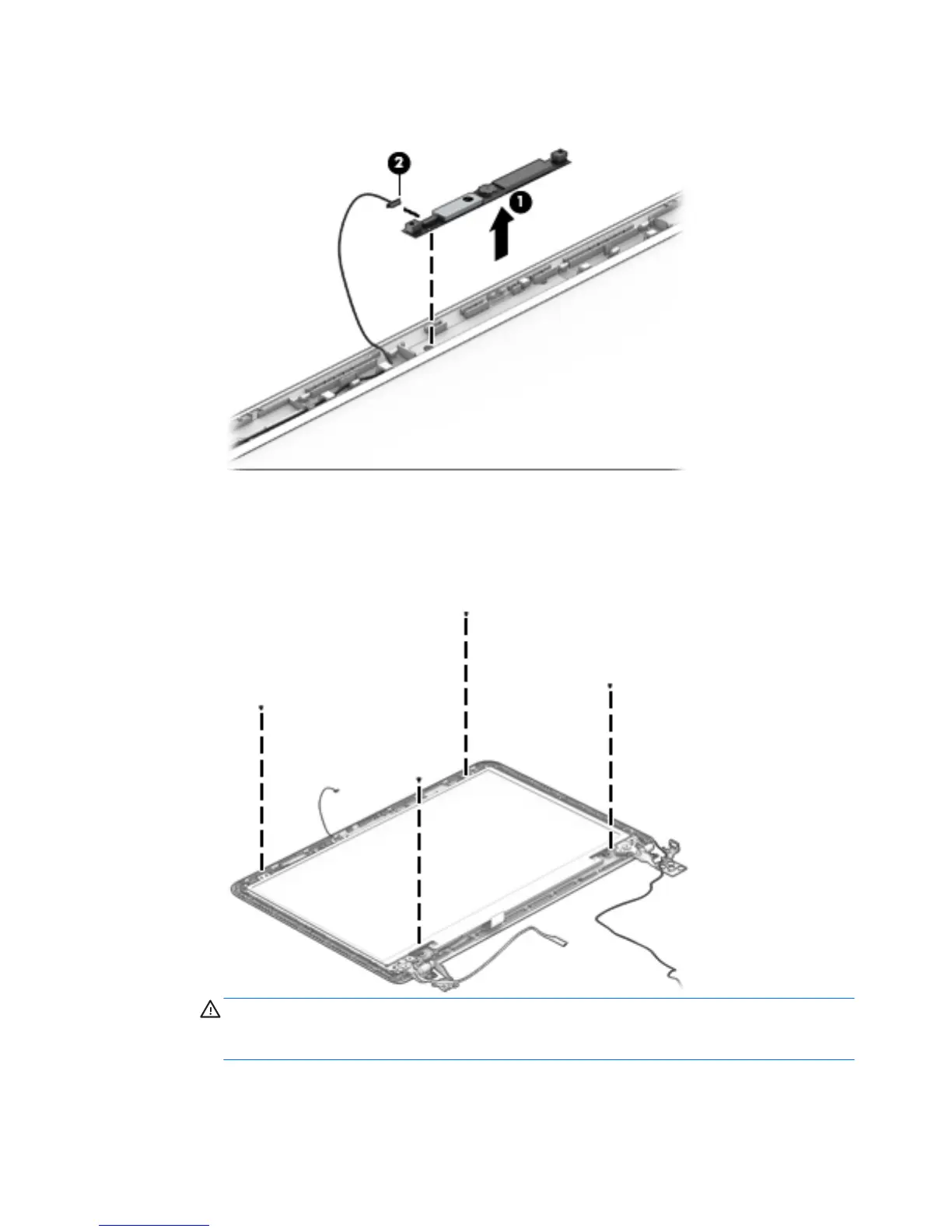

b. Disconnect the webcamera/microphone module cable (2) from the webcamera/
microphone module.
c. Remove the webcamera/microphone module.
The webcamera/microphone module is available using spare part number 746667-001.
8. If it is necessary to replace the display panel:
a. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the display enclosure.
CAUTION: Before turning the display panel upside down, make sure the work surface is clear of
tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to
the display panel.
b. Lift the top edge of the display panel (1) and swing it up and forward until it rests upside down in
front of the display enclosure.
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
