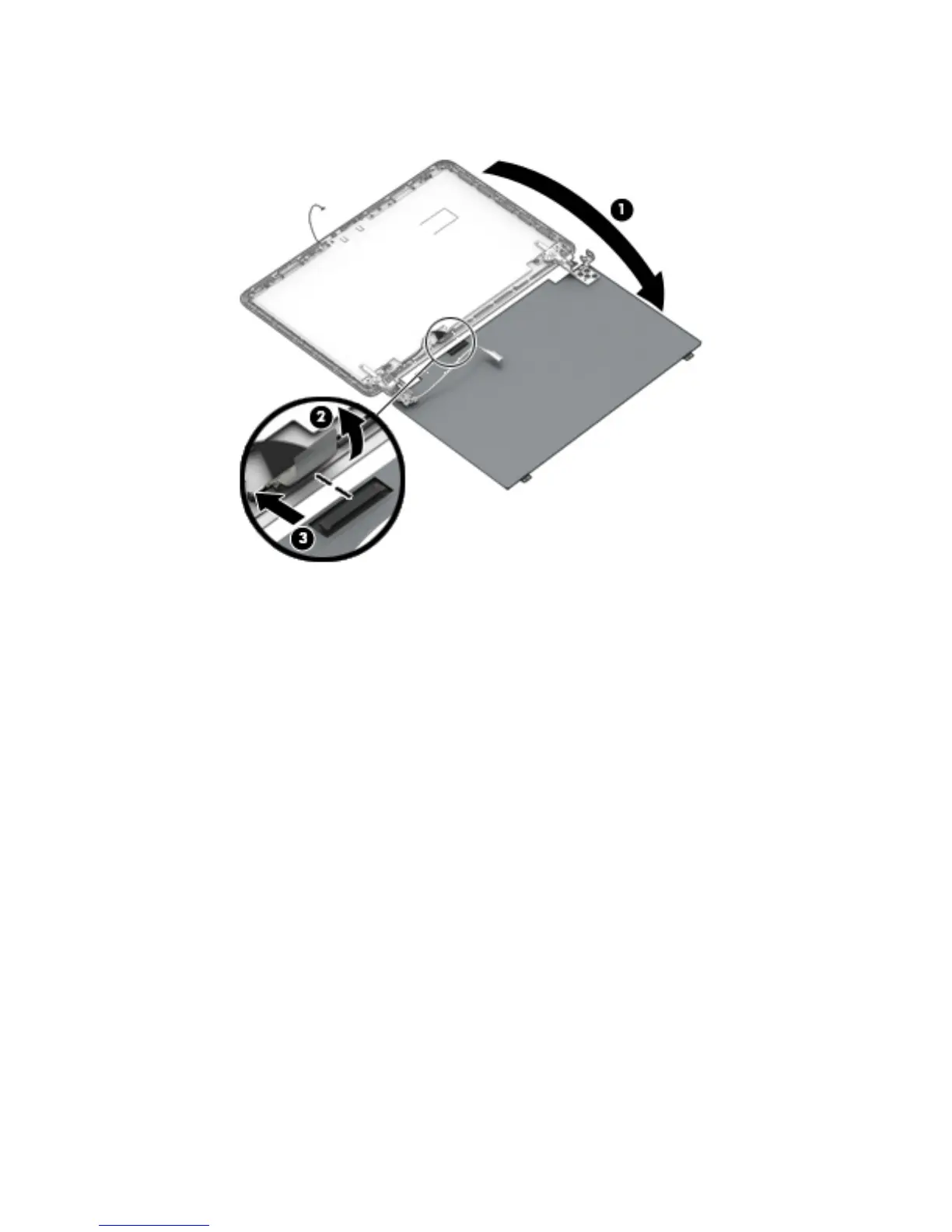

c. Release the adhesive strip (2) that secures the display panel cable connector to the display panel.
d. Disconnect the display panel cable (3) from the display panel.
e. Remove the display panel.
The display panel is available using spare part number 754891-001.
9. If it is necessary to replace the display panel cable:
a. Release the display panel cable from the clips (1) and routing channel built into the the display
enclosure.
Component replacement procedures 67
