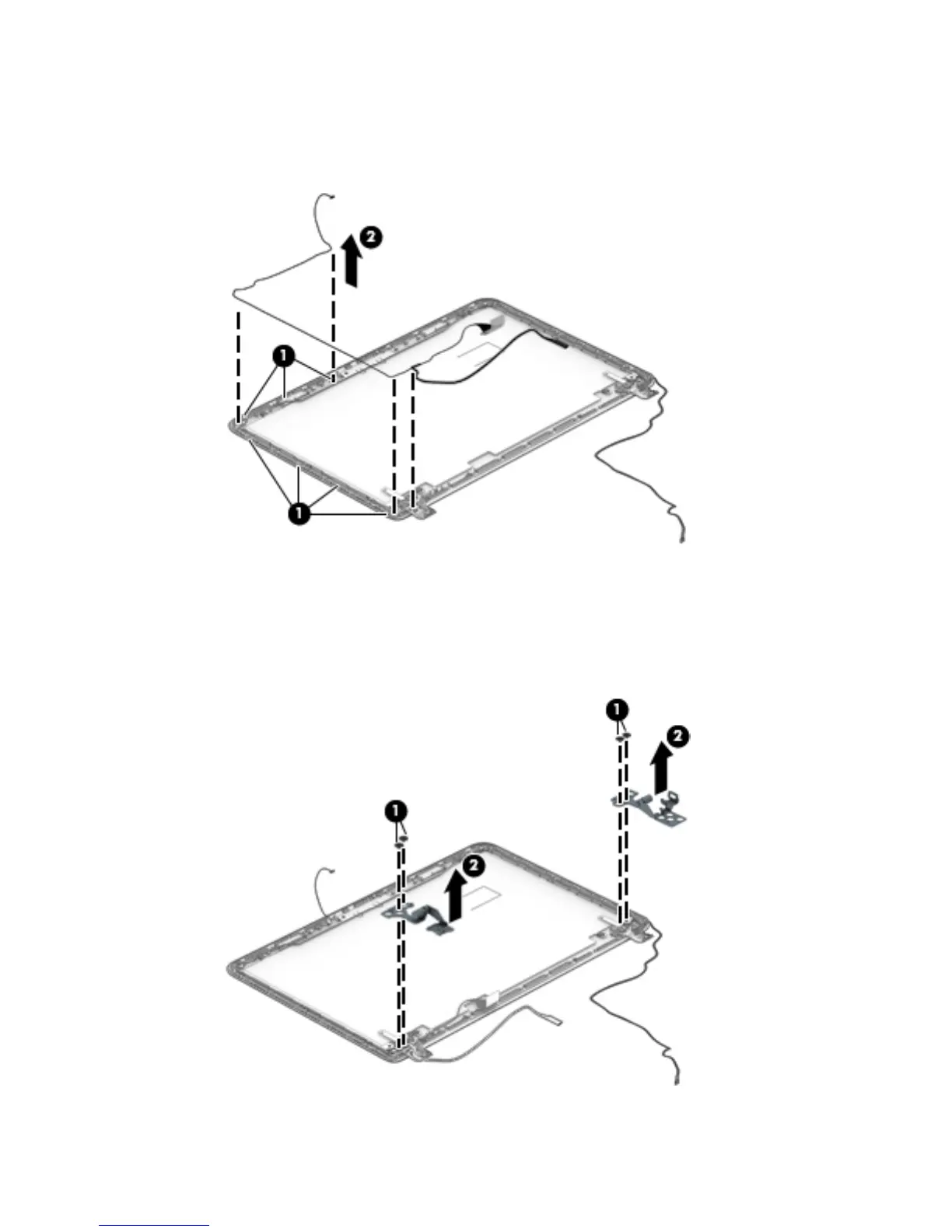

b. Remove the display panel cable (2).
The display panel cable is available using spare part numbers 746664-001 (for use only on
computer models equipped with a webcamera) and 752585-001 (for use only on computer models
not equipped with a webcamera).
10. If it is necessary to replace the display hinges:
a. Remove the four Phillips PM2.5×3.25 broad head screws (1) that secure the display hinges to the
display enclosure.
b. Remove the display hinges (2).
The display hinges are included in the Display Hinge Kit, spare part number 746666-001.
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
