11. If it is necessary to replace the WLAN antenna cables and transceivers:

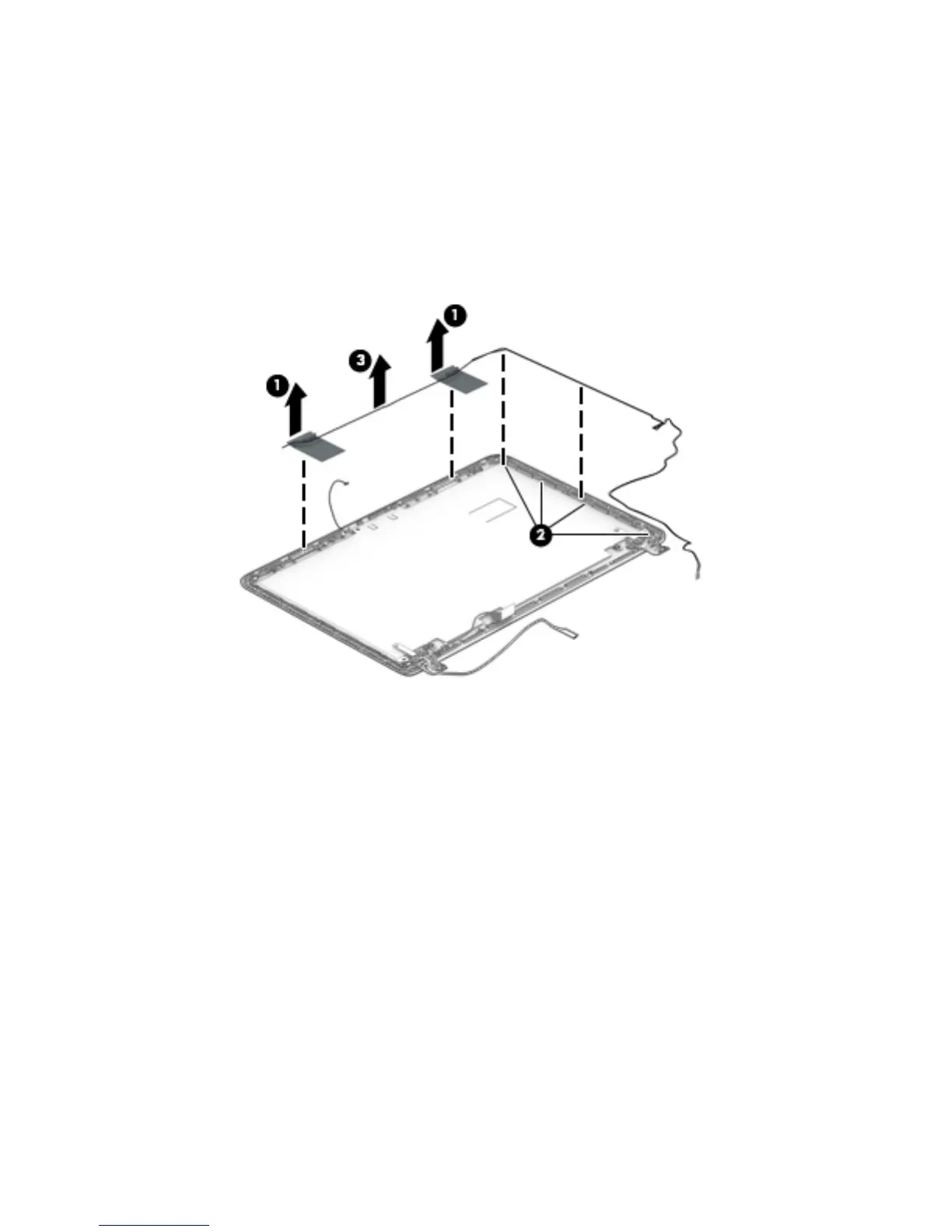

a. Detach the WLAN antenna transceivers (1) from the display enclosure. (The WLAN antenna
transceivers are attached to the display enclosure with double-sided adhesive.)
b. Release the WLAN antenna cables from the clips (2) and routing channel built into the top edge
and right side of the display enclosure.
c. Remove the WLAN antenna cables and transceivers (3).
The WLAN antenna cables and transceivers are included in the Antenna Kit, spare part number
746665-001.
Reverse this procedure to reassemble install the display assembly.
Component replacement procedures 69
