IPv4 Access Control Lists (ACLs)

Enable ACL “Deny” Logging

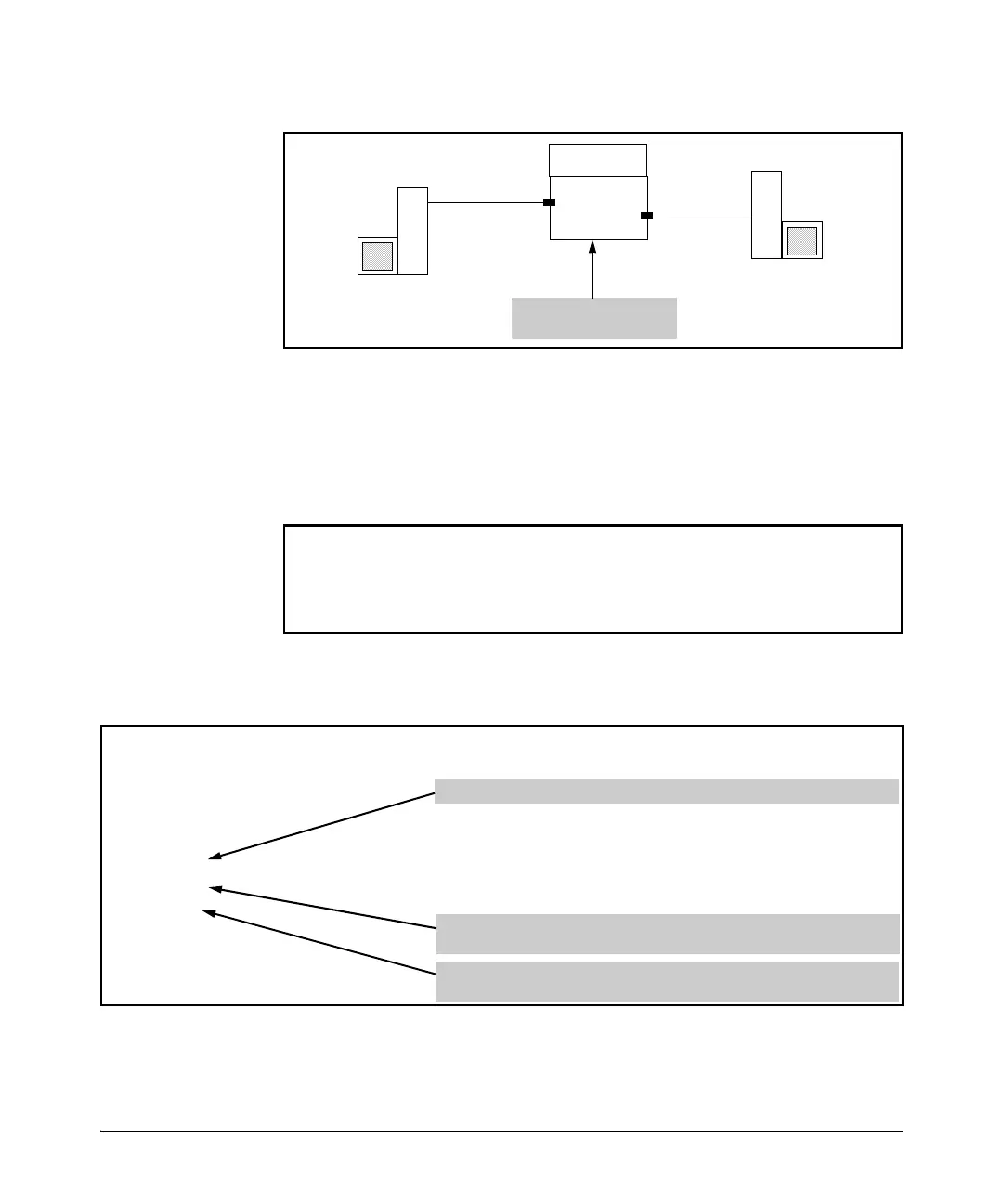

Figure 10-51. Application to Filter Traffic Inbound on Port B2

Using the topology in figure 10-51, a workstation at FE80::20:117 on port B2

attempting to ping and Telnet to the workstation at FE80::20:2 is filtered

through the PACL instance of the “V6-01” ACL assigned to port B2, resulting

in the following:

Figure 10-52. Ping and Telnet from FE80::20:117 to FE80::20:2 Filtered by the

Assignment of “V6-01” as a PACL on Port B2

Figure 10-53. Resulting ACE Hits on ACL “V6-01”

FE80::20:2

ACL “V6-01” assigned as

a PACL on port B2.

VLAN 20

FE80::20:1

5400zl Switch

FE80::20:117

Port

HP Switch# ping6 fe80::20:2%vlan20

fe80:0000:0000:0000:0000:0000:0020:0002 is alive, time = 5 ms

HP Switch# telnet fe80::20:2%vlan20

Telnet failed: Connection timed out.

HP Switch#

HP Switch# show statistics aclv6 IP-01 port b2

Hit Counts for ACL IPV6-ACL

Total

( 1) 10 permit icmp fe80::20:3/128 fe80::20:2/128 128

( 5) 20 deny tcp ::/0 fe80::20:2/128 eq 23 log

( 4) 30 permit ipv6 ::/0 ::/0

HP Switch#

Indicates denied attempts to Telnet to FE80::20:2 via the instance of the “V6-

01” PACL assignment on port B2.

Shows the succesful ping permitted by ACE 10.

Indicates permitted attempts to reach any accessible destination via the

instance of the “V6-01” PACL assignment on port B2.
