Configuring Port-Based and User-Based Access Control (802.1X)
General 802.1X Authenticator Operation

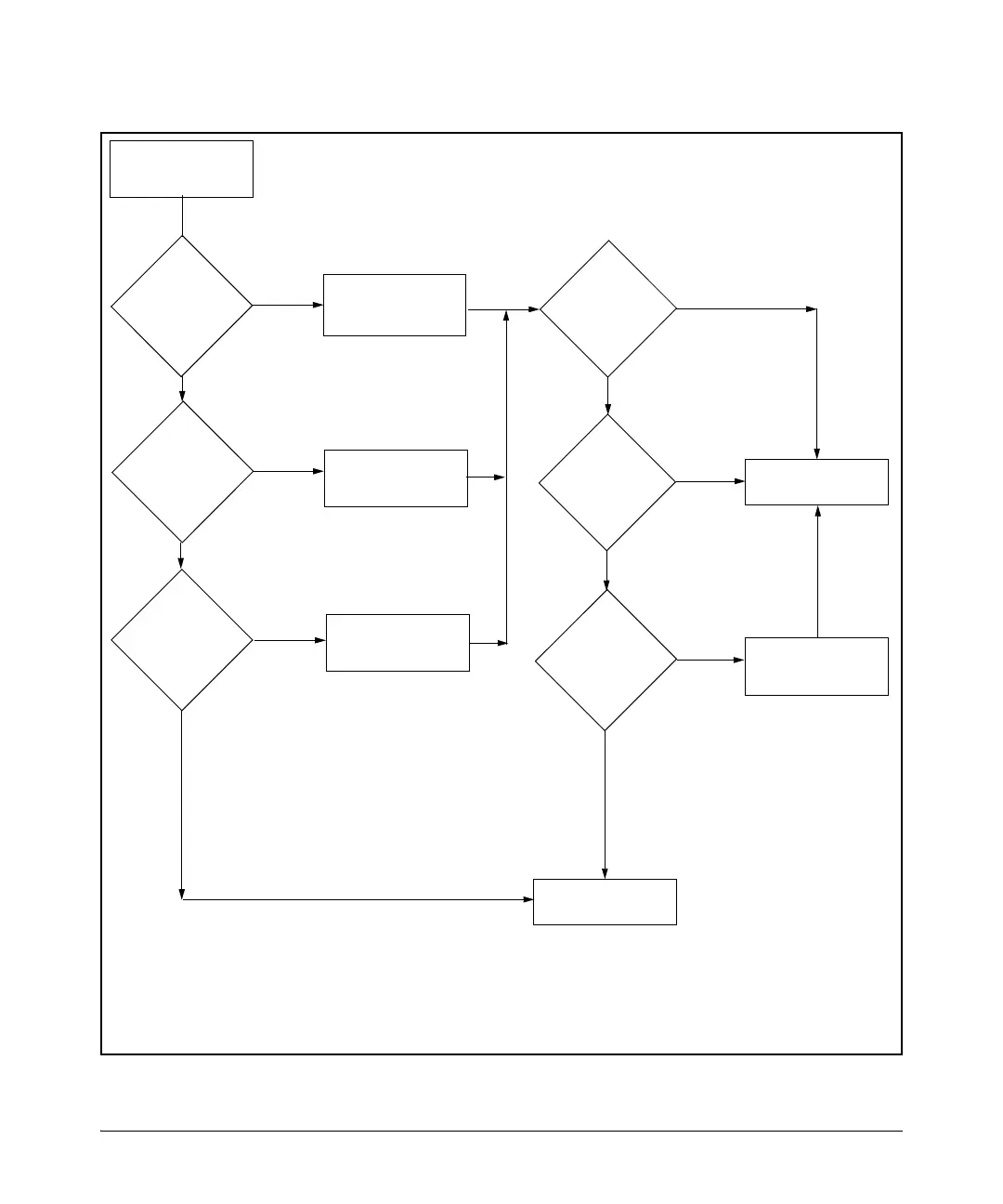

Figure 13-1. Priority of VLAN Assignment for an Authenticated Client
No
Yes
New Client
Authenticated
Untagged
VLAN
Configured
On Port ?
RADIUS-
Assigned
VLAN?
Authorized
VLAN
Configured?
Another
(Old) Client
Already Using
Port
?
Are All Old
Clients On
Unauthorized
VLAN?
No
No
Yes
Yes
Assign New Client
to RADIUS-
Specified VLAN
Assign New Client
to Authorized VLAN
Configured on Port
Assign New Client
to Untagged VLAN
Configured On Port
Yes
New
Client VLAN
Same As Old
Client VLAN?
No
Drop All Clients
Using Unauthorized
VLAN
No
Reject New Client
On Port
Yes
Accept New Client
On Port
Yes
No

HP 3500yl Series Specifications

General

Input Voltage	100-240 VAC
Ports	24/48 x 10/100/1000 ports (depending on model)
Uplink Ports	4 x SFP ports
Layer	Layer 3
Management	CLI, Web, SNMP
Routing Protocol	RIP, OSPF, BGP
Operating Temperature	0°C to 45°C
Stacking	Yes
Memory	512 MB
VLAN Support	Yes
Layer 3 Routing	Yes
Security Features	ACLs, 802.1X
Power Supply	Internal
Power over Ethernet (PoE)	Optional
