6. If it is necessary to replace the display bezel or any of the display assembly subcomponents:

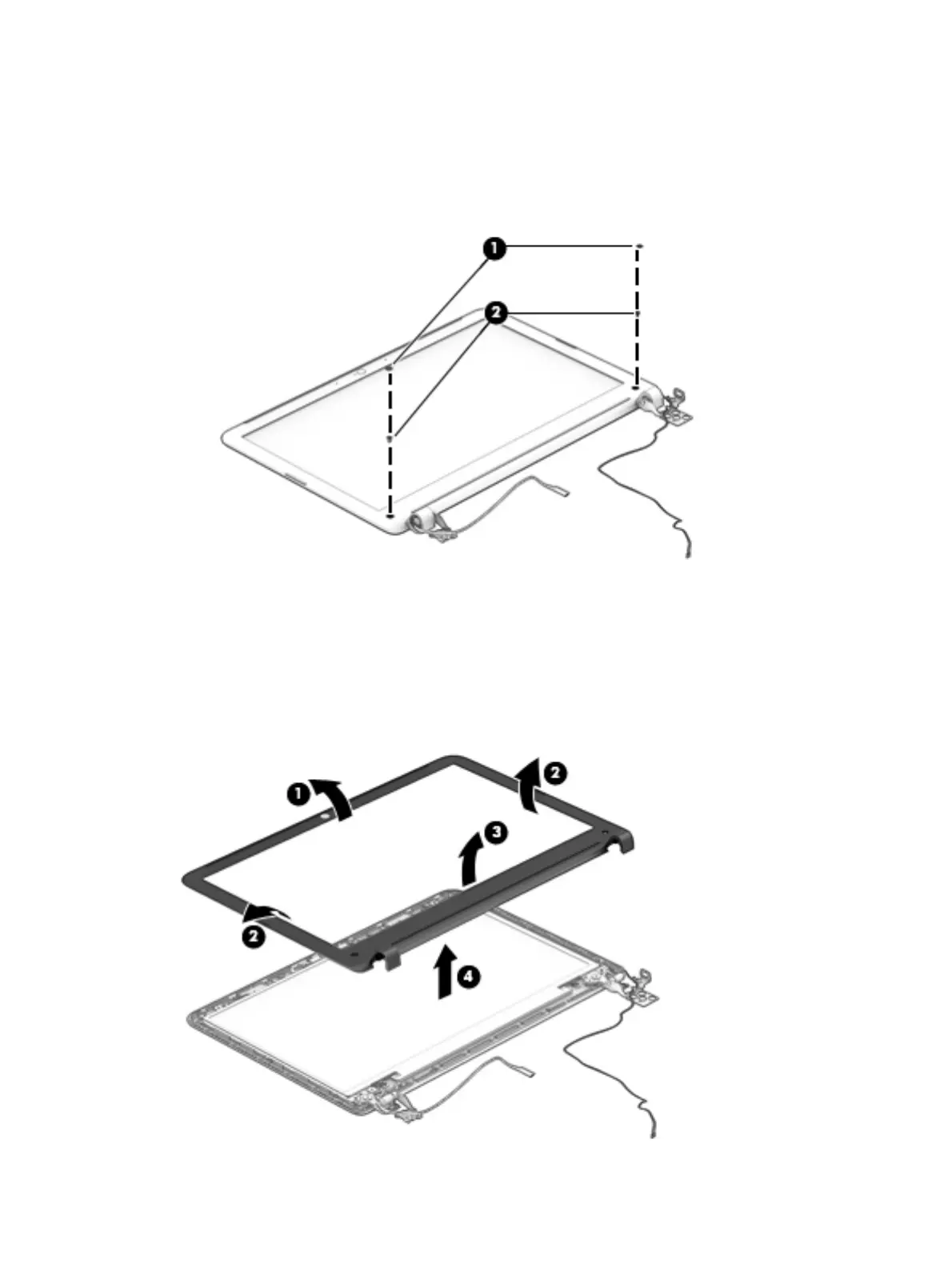

a. Remove the two display bezel screw covers (1).
b. Remove the two Phillips PM2.0×3.75 screws (2) that secure the display bezel to the
display assembly.
c. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom
edge (3) of the display bezel until the bezel disengages from the display enclosure.
d. Remove the display bezel (4).
The display bezel is available using spare part numbers 758055-001 (for use only on
computer models equipped with a webcamera) and 758056-001 (for use only on computer
models not equipped with a webcamera).
96 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
