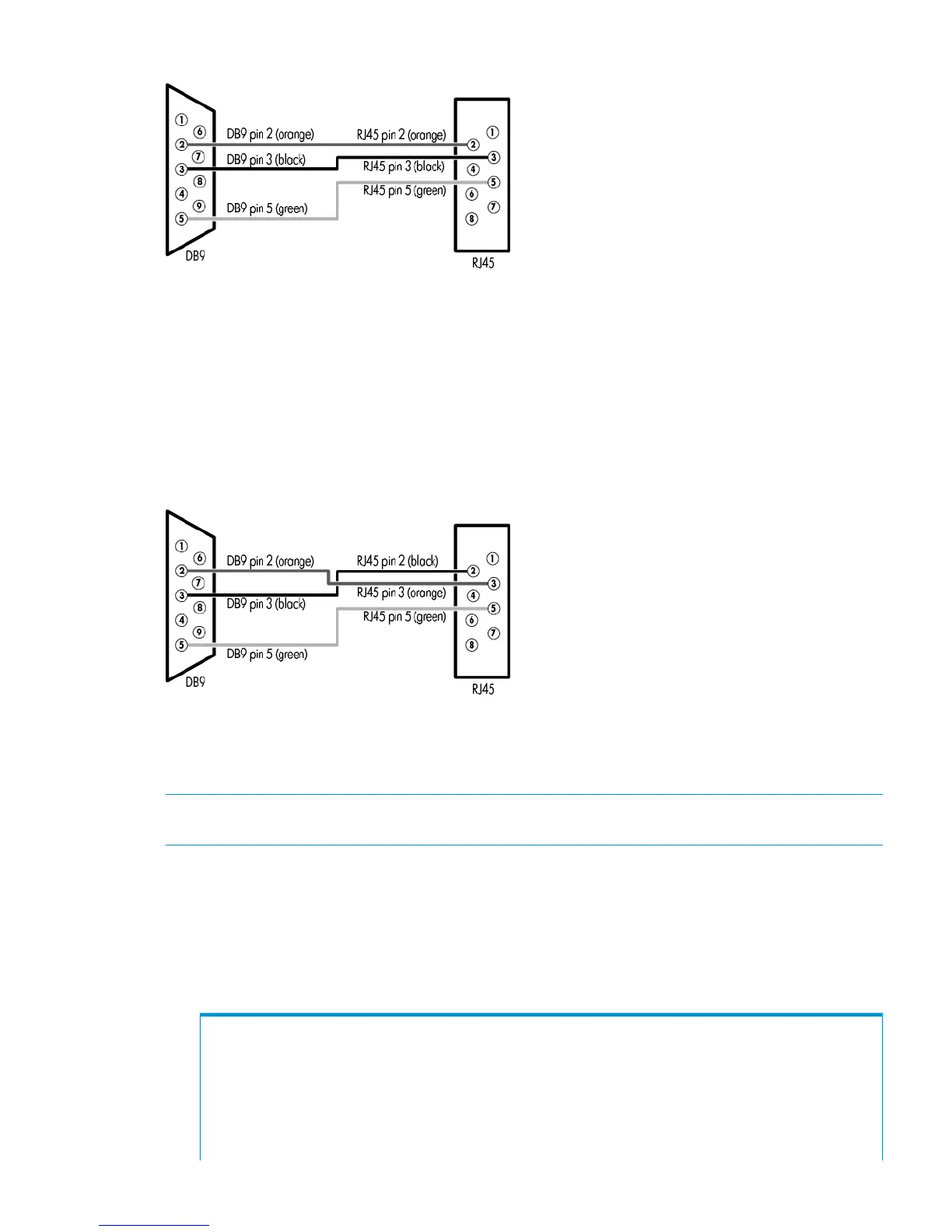

Figure 44 Maintenance PC Connector Pin-outs
Service Processor Connector Pin-outs
Use at the SP end of a standard Ethernet cable and in conjunction with the laptop adapter (PN
180-0055-01) to allow serial connection to the SP.
DB9 (Female) RJ45
• Pin 2-Pin 3 (orange)
• Pin 3-Pin 2 (black)
• Pin 5-Pin 5 (green)
Figure 45 Service Processor Connector Pin-outs
Manually Initializing the Storage System Software
Use the following procedures to manually set up the storage system and SP when access to the
wizards is not available.
NOTE: You must physically connect a laptop to the SP to complete these procedures. See the
section “Connecting a Laptop to the SP” in the HP 3PAR StoreServ 7000 Storage Installation Guide.
Manually Setting up the Storage System
The Out-of-the-Box (OOTB) script guides you through setting up and configuring the storage system
software:
1. Connect the PC to the controller node 0 through a serial cable and log in with user ID
console.
2. From the Console Menu, select option 1, Out of The Box Procedure.
3PAR Console Menu 1400293-1 3.1.2.xxx
1. Out Of The Box Procedure
2. Run ootb-stress-analyzer
3. Re-enter network configuration
4. Update the CBIOS
5. Enable or disable CLI error injections
6. Perform an IDE rescue
Manually Initializing the Storage System Software 45
