HP 3PAR StoreServ 7400 2-node Administrator's Manual

• Service time (Svt_ms)
• Wait time (Wtt_ms)
• Size of the I/O requests (IOSz_KB)
• Number of rejected I/O requests (Rej)
• Averaged QoS queue length (Qlen)
• Averaged wait queue length (WQlen)

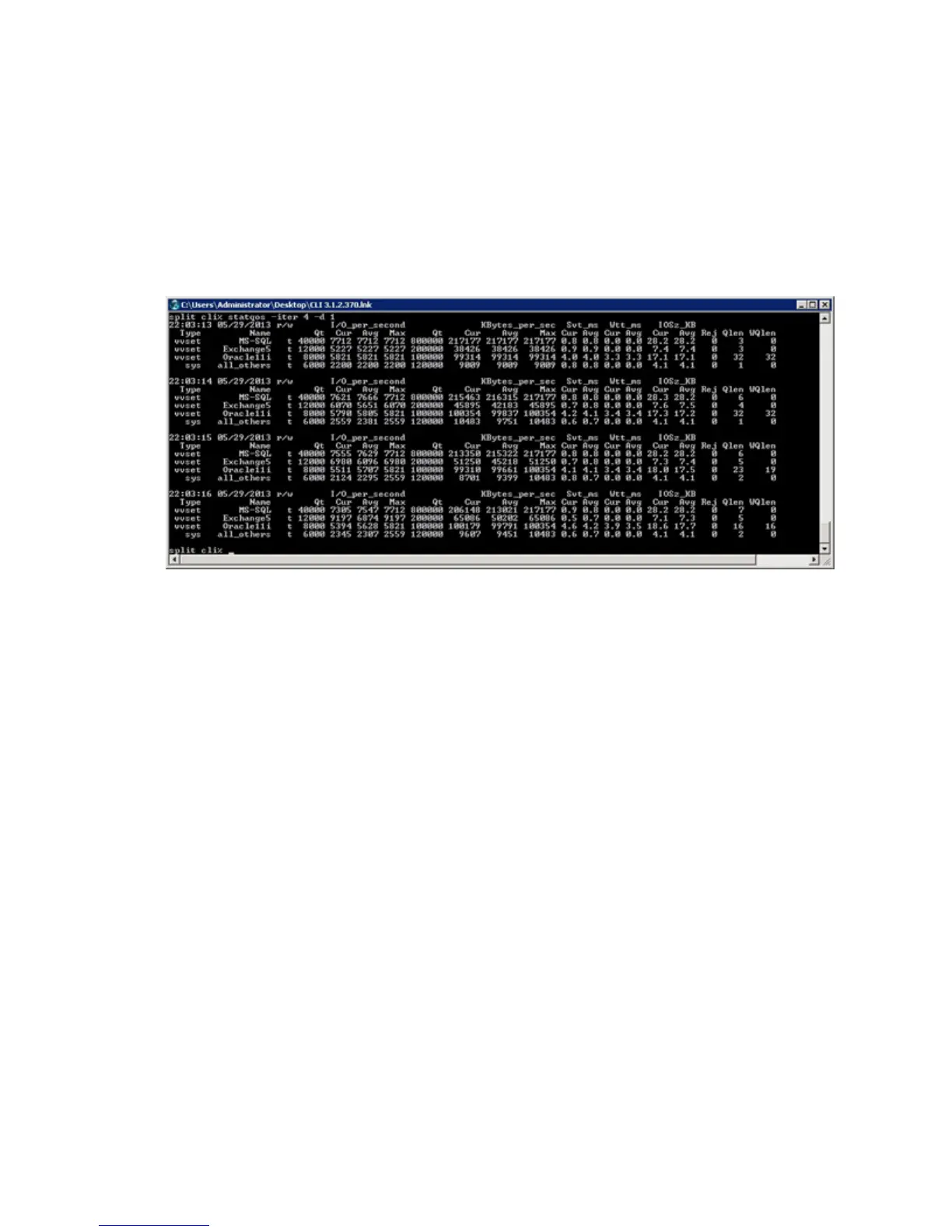

Figure 20 (page 165) shows sample output for the statqos command.
Figure 20 Run-time Statistics Shown by the statqos Command
The column headers in Figure 20 (page 165) show:
Type QoS target type (vvset or sys)
Name QoS target name; also the name of the VVset on which the rule is
defined
I/O_per_second IOPS cap, set by the userQt
Cur Current IOPS
Avg Average IOPS over all iterations of the statqos command so
far
Max Maximum IOPS over all iterations of the statqos command
so far
Kbytes_per_second IOPS cap, set by the userQt
Cur Current IOPS
Avg Average IOPS over all iterations of the statqos command so
far
Max Maximum IOPS over all iterations of the statqos command
so far
Svt_ms Total service time of I/Os processed by QoS (including wait time and
the real service time)
Wtt_ms Wait time of I/Os delayed by QoS
IOSz_KB I/O block size in KB (1 KB = 1000 bytes)
Rej Number of I/Os rejected by QoS
WQlen Number of I/Os delayed by QoS
Using HP 3PAR Priority Optimization 165

HP 3PAR StoreServ 7400 2-node Specifications

General

Node Count	2
Category	Storage
Maximum Raw Capacity	1.2 PB
Storage Capacity	1.2 PB
Operating System	HP 3PAR OS
Power Supply	Redundant Power Supplies
Model	StoreServ 7400
Drive Types Supported	SSD, SAS
Drive Types	SSD, SAS
Host Interfaces	16 Gb Fibre Channel, 10 Gb iSCSI
Host Connectivity	Fibre Channel, iSCSI
Host Interface	16 Gb Fibre Channel, 10 Gb iSCSI
RAID Levels	RAID 1, RAID 5, RAID 6
RAID Level	0, 1, 5, 6
Management Interface	CLI
Memory	64 GB
Cache Memory	64 GB
Data Services	Thin Provisioning, Deduplication, Compression, Snapshots, Replication
Form Factor	Rack-mounted
Installed Devices / Modules Qty	2
Storage Controller Type	Active/Active
