3 Illustrated parts catalog

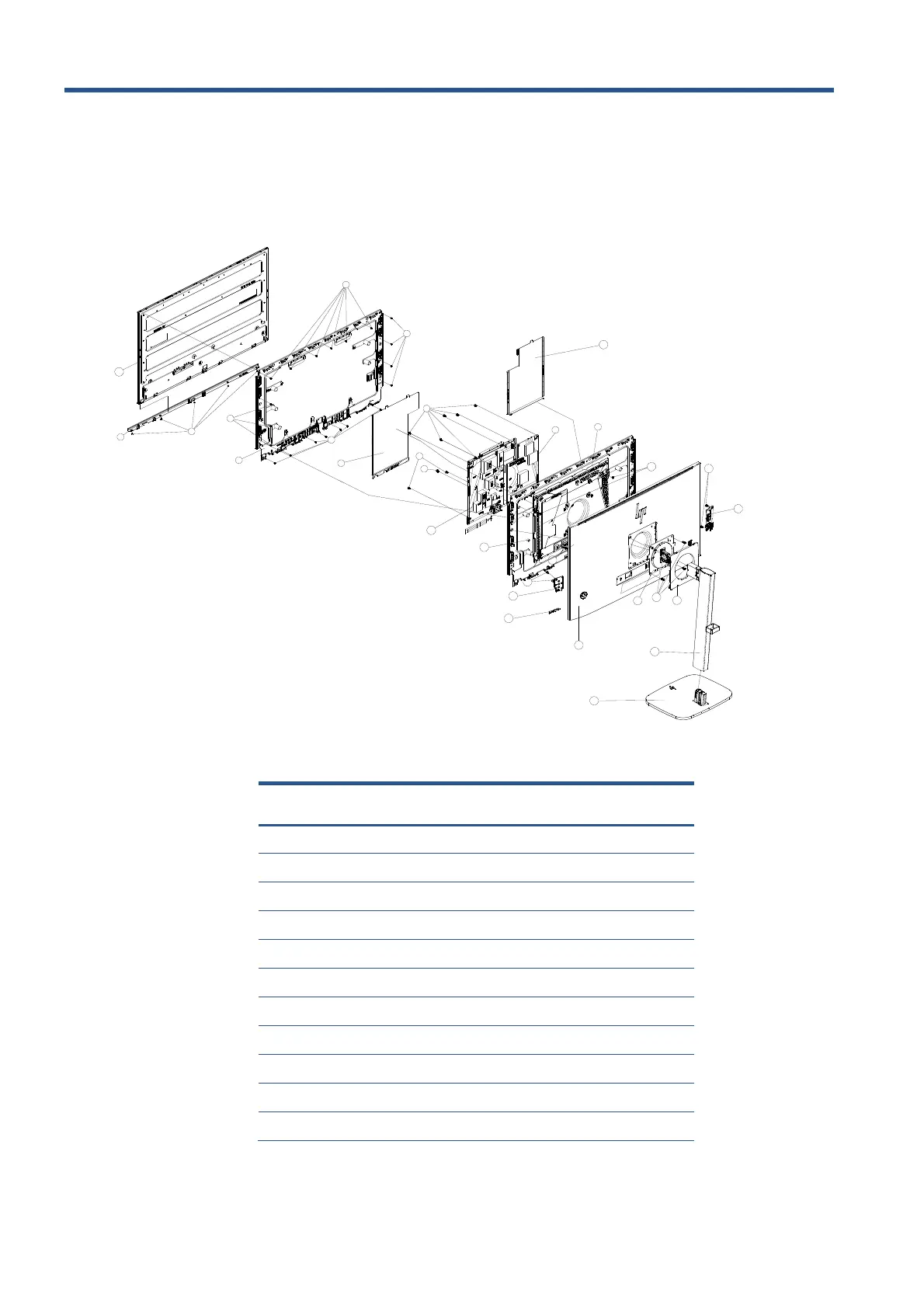

To identify the monitor major components, use this illustration and table.
1
2
4
4
3
4
4
5
6
8
7
7
9
13
12
14
15
16
17
18
19
10
12
12
11
6
20
21
22
23
24

Item Description Qty
1 BEZEL_BTM 1
2 SCREW M2 2 5
3 MIDDLE_FRAME 1
4 SCREW M3 3.5 20
5 MAINFRAME 1
6 RUBBER PAD φ8.1xT6 1
7 SCREW D3 6 8
8 SCREW M4 6 1
9 INSULATING SHEET BPC V0 1
10 INSULATING SHEET BPC V0 229.6*171.8 1
11 PANEL 1
