HP 527pu - Connector Repair

17


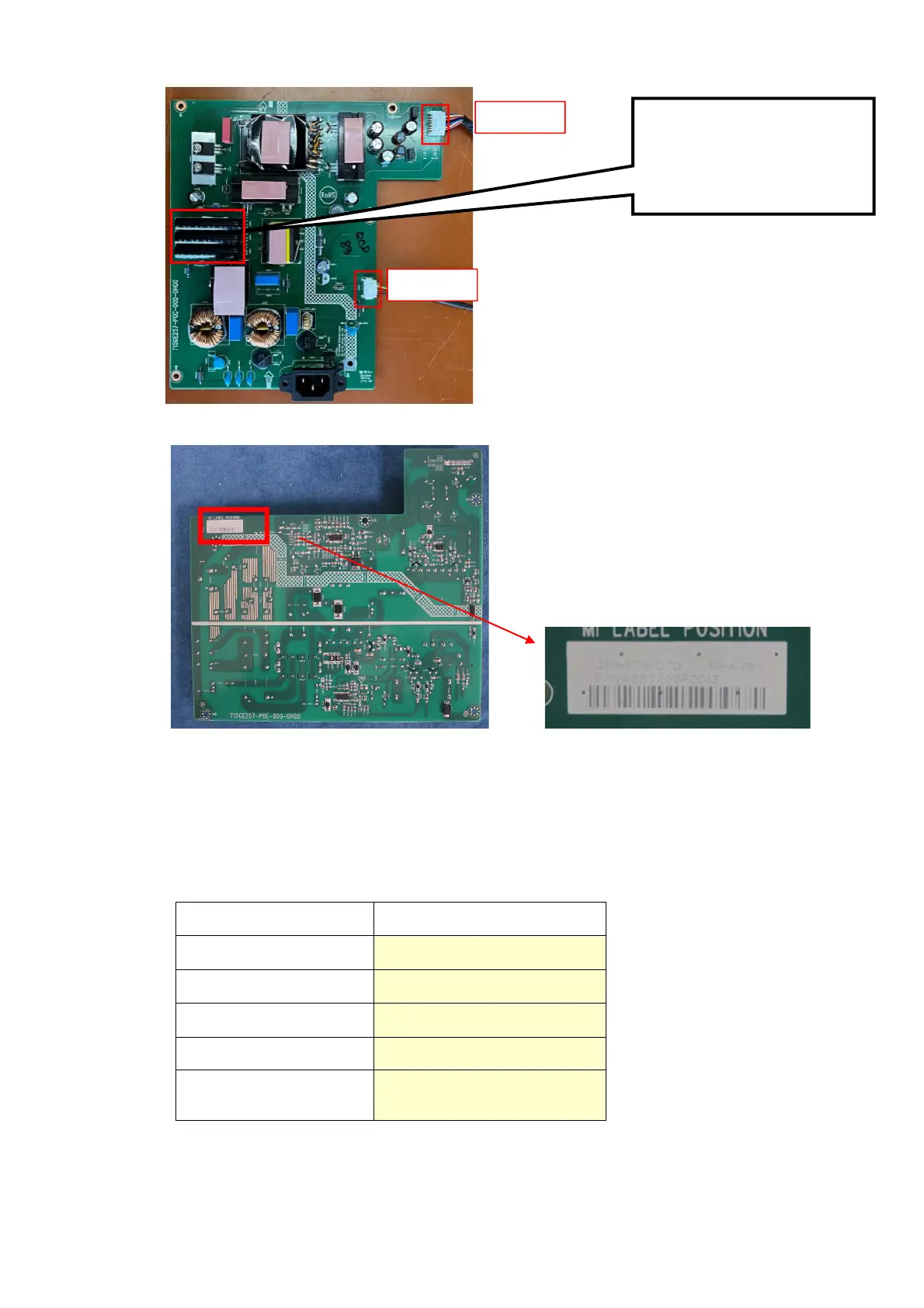

2) Locate the part number location on the board

Connector repair
This procedure includes HDMI/DP1/Type-c 1/DP2/RJ45/USB 1/Type-c 2 connectors.
The connectors are on the main board (board part number CBPR3TEHPQ1)
The connectors’ identifiers are as follows:
Connector Location
HDMI CN502
DP1 CN501
Type-c 1 CN102
DP2 CN503
RJ45 CN140
Warning: After unplugging the
power supply, the capacitance
is still charged, do not touch
and discharge the capacitor.
CN9101
CN8601
