DP2 connector CN503

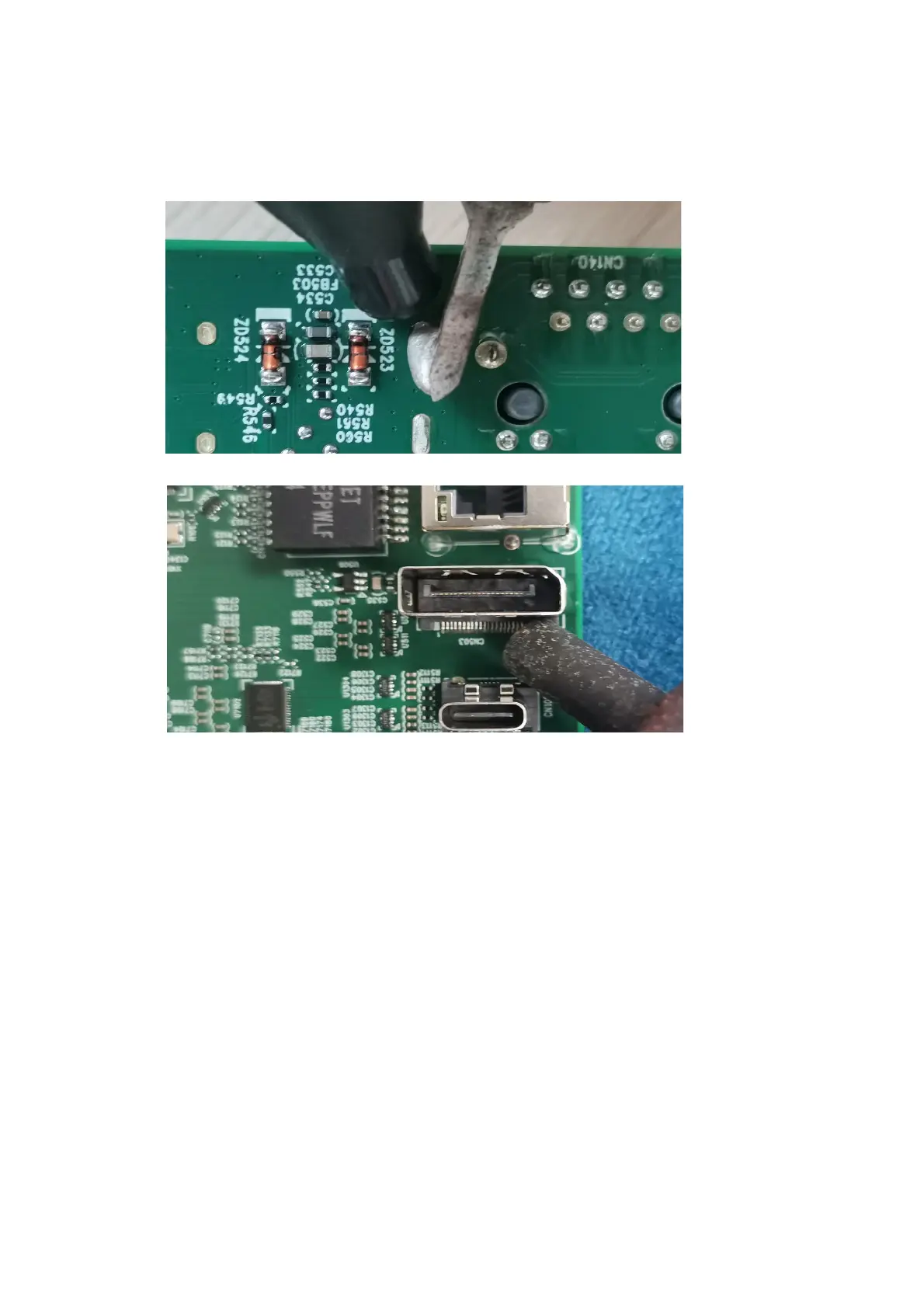

Repair the DP2 connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the DP2 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
5) Solder the new component.
