Operating Information
Model 8756A
CURSOR/\ ON/OFF alternately turns the CURSOR/\ ON, as shown in
{b), and OFF, as shown in {a). When ON, the-rast set position
of the CURSOR {regardless of whether the CURSOR was ON or OFF)
is marked by the /\ symbol.
Rotating the Knob moves the CURSOR {+ symbol), and the
amplitude readings in the MODE LABELS and ACTIVE ENTRY AREA are
now relative to the /\ symbol position.
If either the 8350B Sweep Oscillator or the 8340A Synthesized
Sweeper HP-IB is connected to the 8756 SYSTEM INTERFACE, the
absolute value frequency difference between the /\ symbol
position and the + symbol position are annotated-rn the
FREQUENCY LABELS and also in the ACTIVE ENTRY AREA. When
Alternate Sweep is selected, both CURSOR/\ frequencies will
appear for each sweep in the FREQUENCY LABELS.
CURSOR MAX 1 positions
the
CURSOR
{+ symbol)
to
the maximum
value point on the Channel
1 trace.
CURSOR MIN 1 positions
the CURSOR
{+ symbol) to the minimum
value point on the Channel
1
trace.
CURSOR MAX 2 positions
the CURSOR
{+ symbol) to the
maximum
value point on the Channel
2 trace.
CURSOR MIN 2 positions
the
CURSOR
{+ symbol)
to the minimum
value point on
the Channel
2 trace.
Both the MAX and MIN functions may be used with either CURSOR
or CURSOR/\ selected.

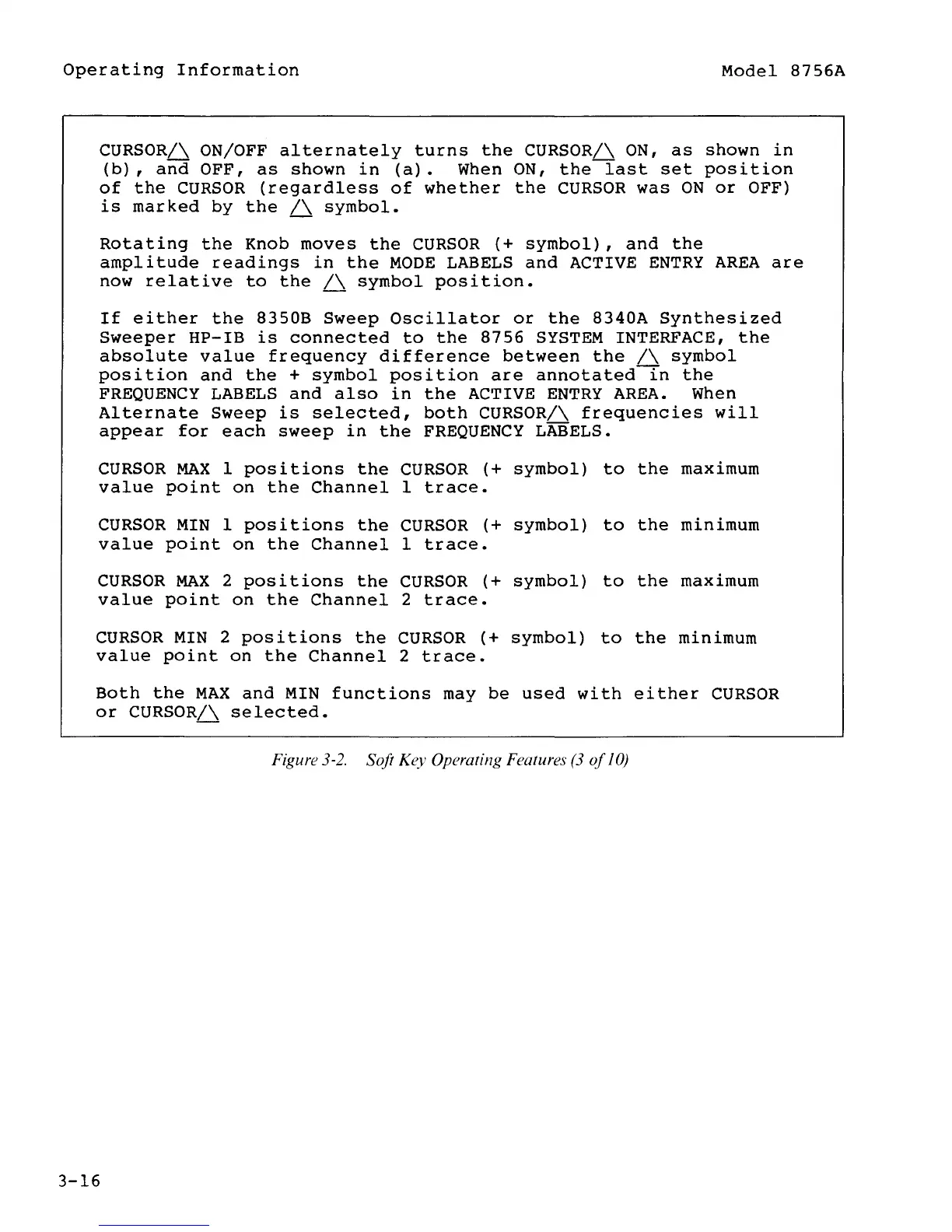

Figure 3-2. Soft Key Operating Features (3 of 10)
3-16
