Horizontal
Repetitive/Real Time Softkey
6 Press the Stop/Single key to stop the acquisition. Then, press the
Clear display key.
7 Press the Stop/Single key to acquire a single-shot acquisition.
In the Repetitive Single-Shot Exercise, only the 40 raw data points that were
captured are displayed at the 2 ns/div sweep speed. Even though 40 points
are still captured in the real-time mode, the interpolator fills in the remaining
461 points so that 501 points are displayed on the screen.

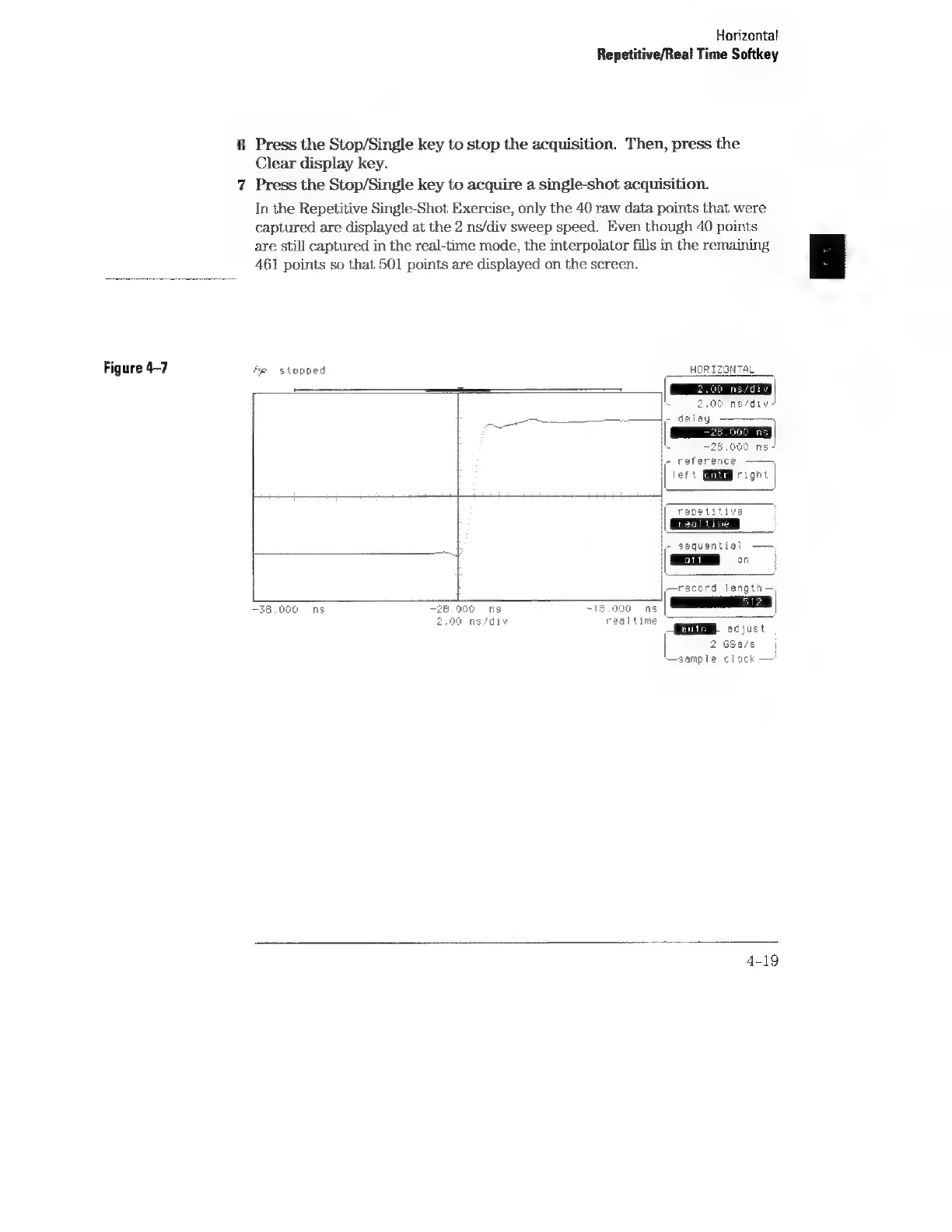

Figure 4-7 4p stopped HORIZONTAL
—35 000)
ns
~18.000 ns
realtime
repetitive
- sequential ——
corecard length—
ee
IN. adjust
2 S5a/s
—sample clock —
