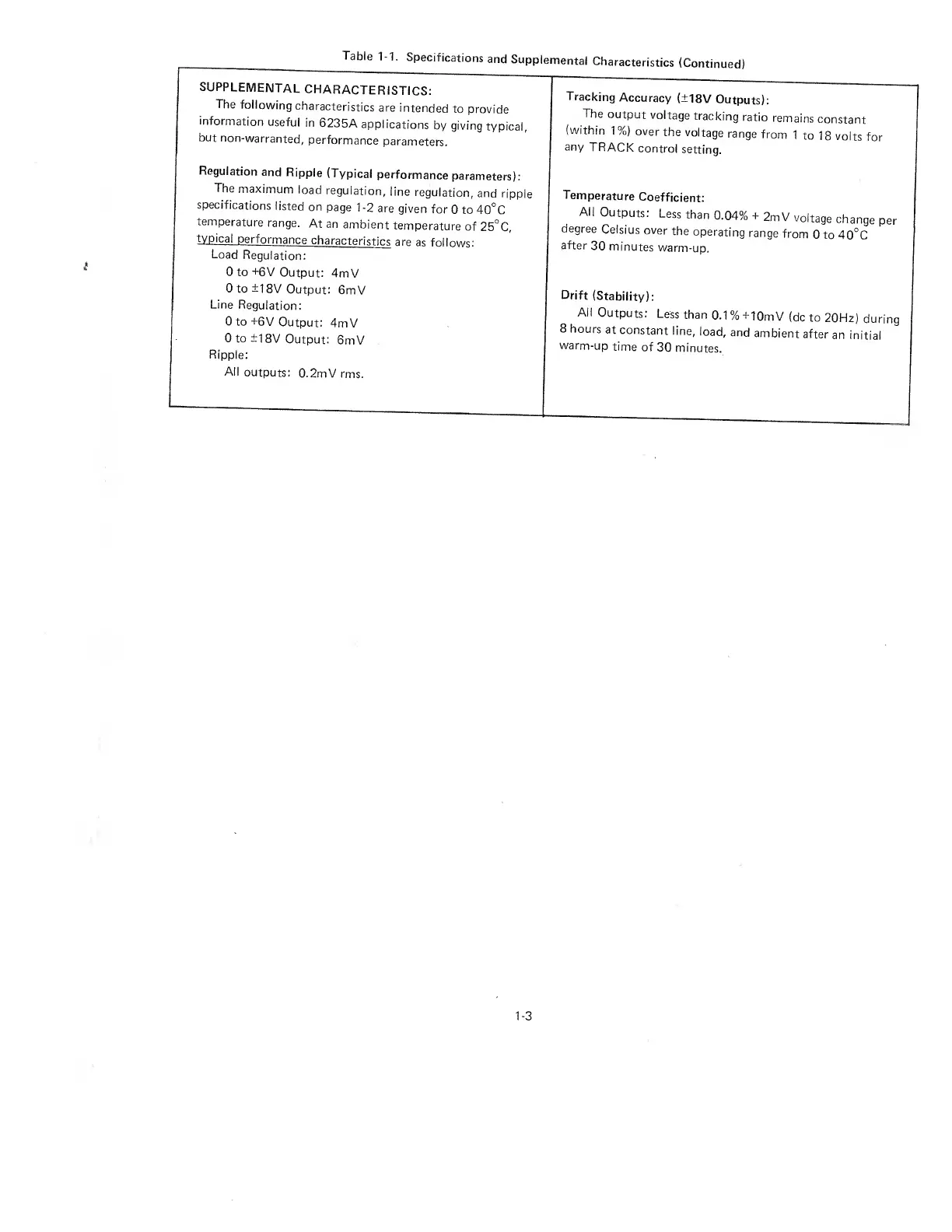

Table 1 - 1 . Specifications and Supplemental Characteristics (Continued)
SUPPLEMENTAL CHARACTERISTICS:
The following characteristics are intended to provide
information useful in 6235A applications by giving typical,
but non-warranted, performance parameters.
Regulation and Ripple (Typical performance parameters):
The maximum load regulation, line regulation, and ripple
specifications listed on page 1-2 are given for 0 to 40°C
temperature range. At an ambient temperature of 25°C,
ty pical performance characteristics are as follows:
Load Regulation:
0 to +6V Output: 4mV
0 to ±18V Output: 6mV
Line Regulation:
0 to+6V Output: 4mV
0 to ±18V Output: 6mV
Ripple:
All outputs: 0.2mV rms.
Tracking Accuracy (±18V Outputs):
The output voltage tracking ratio remains constant
(within 1 %) over the voltage range from 1 to 18 volts for
any TRACK control setting.
Temperature Coefficient:
All Outputs: Less than 0.04% + 2mV voltage change per
degree Celsius over the operating range from 0 to 40°C
after 30 minutes warm-up.
Drift (Stability):
All Outputs: Less than 0.1%+10mV (dc to 20Hz) during
8 hours at constant line, load, and ambient after an initial
warm-up time of 30 minutes.
1-3
