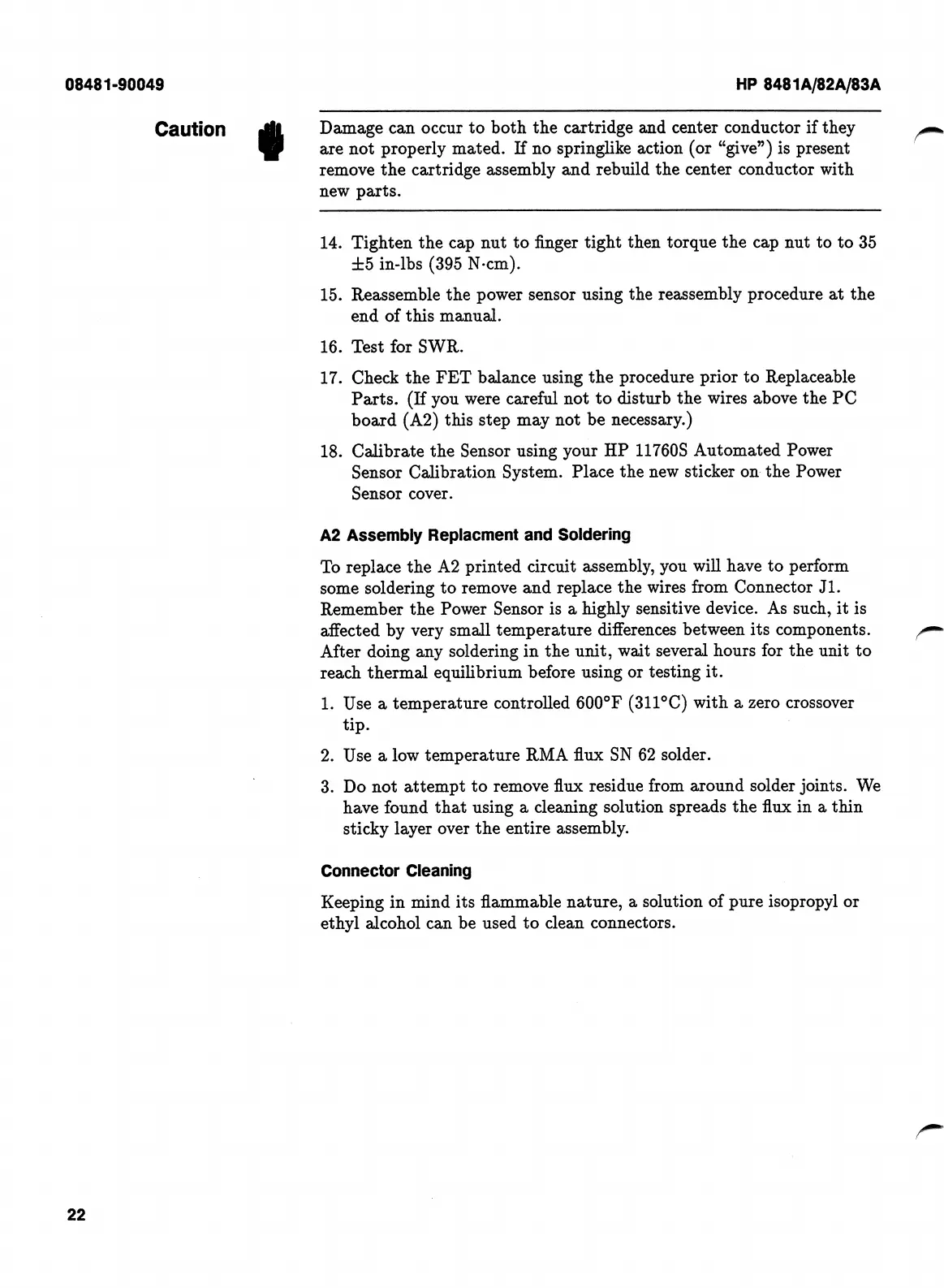

HP
8481A/82A/83A
08481-90049
Damage
can
occur
to
both
the
cartridge
and
center
conductor
if
they
are
not
properly
mated.
If
no
springlike
action
(or
“give”)
is
present
remove
the
cartridge
assembly
and
rebuild
the
center
conductor
with
new
parts.
Caution
14.
Tighten
the
cap
nut
to
finger
tight
then
torque
the
cap
nut
to
to
35
±5
in-lbs
(395
N-cm).
15.
Reassemble
the
power
sensor
using
the
rea.ssembly
procedure
at
the
end
of
this
manual.
16.
Test
for
SWR.
17.
Check
the
FET
balance
using
the
procedure
prior
to
Replaceable
Parts.
(If
you
were
careful
not
to
disturb
the
wires
above
the
PC
board
(A2)
this
step
may
not
be
necessary.)
18.
Calibrate
the
Sensor
using
your
HP
11760S
Automated
Power
Sensor
Calibration
System.
Place
the
new
sticker
on
the
Power
Sensor
cover.
A2
Assembly
Replacment
and
Soldering
To
replace
the
A2
printed
circuit
assembly,
you
will
have
to
perform
some
soldering
to
remove
and
replace
the
wires
from
Connector
Jl.
Remember
the
Power
Sensor
is
a
highly
sensitive
device.
As
such,
it
is
affected
by
very
small
temperature
differences
between
its
components.
After
doing
any
soldering
in
the
unit,
wait
several
hours
for
the
unit
to
reach
thermal
equilibrium
before
using
or
testing
it.
1.
Use
a
temperature
controlled
600°F
(311°C)
with
a
zero
crossover
tip.
2.
Use
a
low
temperature
RMA
flux
SN
62
solder.
3.
Do
not
attempt
to
remove
flux
residue
from
around
solder
joints.
We
have
found
that
using
a
cleaning
solution
spreads
the
flux
in
a
thin
sticky
layer
over
the
entire
assembly.
Connector
Cleaning
Keeping
in
mind
its
flammable
nature,
a
solution
of
pure
isopropyl
or
ethyl
alcohol
can
be
used
to
clean
connectors.
22
