Procedure 2. Al Front Frame/Al8 CRT
Warning
The voltage potential at
A8AlW3
is
+9
kV.
Failure to discharge
A8AlW3
correctly may result in
severe electrical shock
to personnel and damage to the
instrument.
CONDUCTIVE
SHAFT
\
\
A6AlW3
CL I P LEAD
\
INSULATED
HANDLE

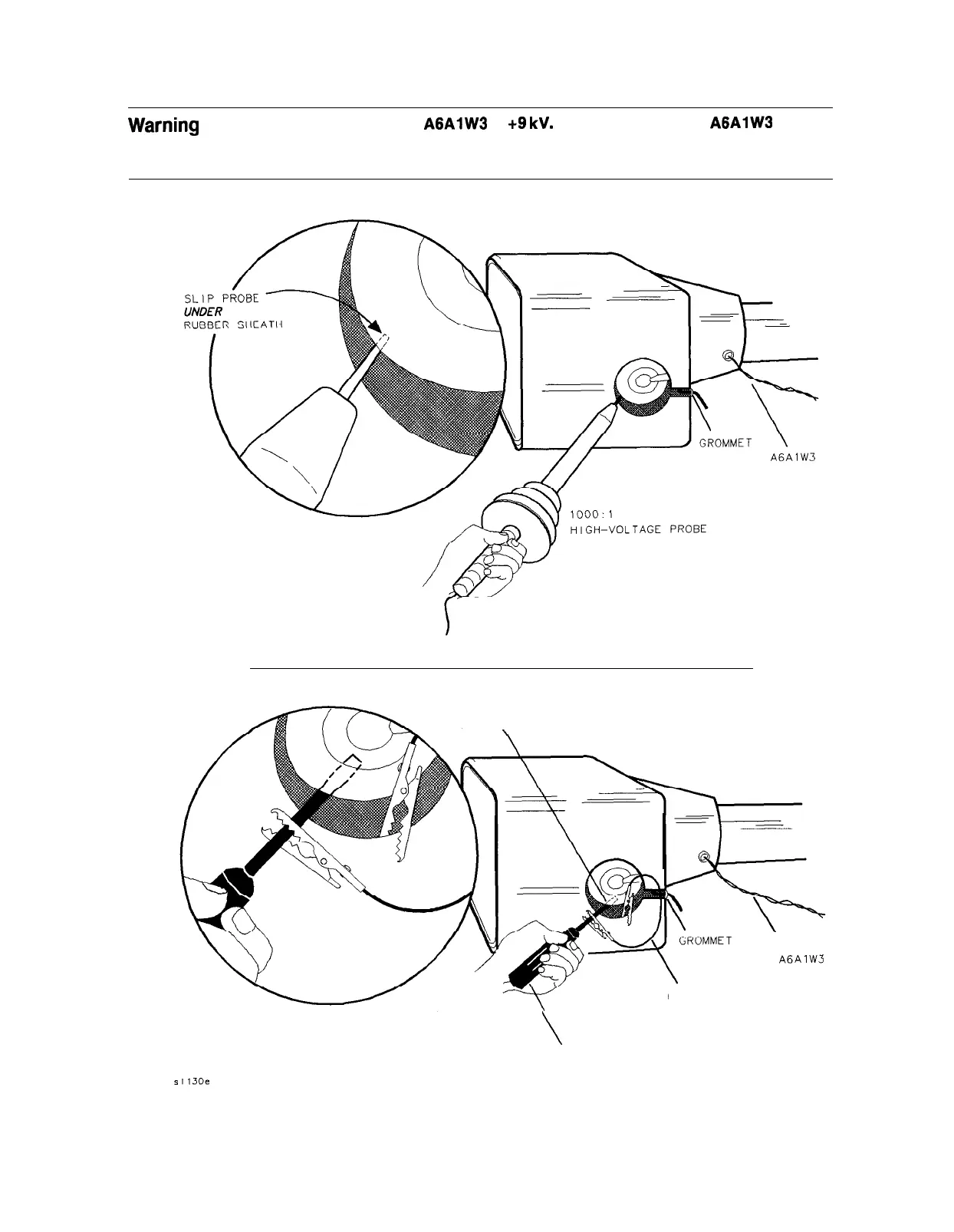

Figure 4-2. Discharging High Voltage on the CRT
Assembly Replacement 4-7
131
133
Table of Contents
Table of Contents
8
Figures
18
Gate Times
22
General Information
24
Serial Numbers and Repair Information
24
Instrument Variations
25
HP 85629B Test and Adjustment Module
26
Service Kit
27
Electrostatic Discharge
27
Reducing Potential for ESD Damage
28
Static-Safe Accessories
29
Returning Instruments for Service
29
Original Packaging
29
Service Tag
29
T Her Packaging
30
Recommended Test Equipment
32
Sales and Service Offices
39
Adjustment Procedures
41
Introduction
41
Adjustable and Factory-Selected Components
42
Safety Considerations
42
Test Equipment
42
Which Adjustments Should be Performed
42
Adjustment Tools
43
Instrument Service Position
43
Adjustable Components
46
Factory Selected Components
48
Using the TAM
49
Adjustment Indicator
49
Test Equipment
49
TAM Adjustments
50
Required Test Equipment for TAM
51
Front End Cal (Adjustment)
52
High Voltage Power Supply Adjustment
53
Display Adjustment
55
Display Adjustment Setup
55
CRT Adjust Pattern
57
IF Bandpass Adjustment
61
IF Bandpass Adjustment Setup
61
TAM Connector Pin Locations
62
Factory-Selected LC Filter Capacitors
63
Factory-Selected XTAL Filter Capacitors
64
Capacitor Part Numbers
65
IF Amplitude Adjustment Setup
66
IF Amplitude Adjustments
66
IF Amplitude Adjustment Locations
67
DC Log Adjustment Setup
70
DC Log Amplifier Adjustments
70
DC Log Adjustment Locations
71
Sampling Oscillator Adjustment
74
TAM Connector Pin Locations
75
YTO Adjustment
77
YTO Adjustment Setup
77
First lo Distribution Amplifier Adjustment Setup
80
LO Distribution Amplifier Adjustment
80
TAM Connector Pin Locations
81
Frequency Response Adjustment
83
Frequency Response Adjustment Setup
84
Calibrator Amplitude Adjustment
87
Calibrator Amplitude Adjustment Setup
87
Mhz Reference Adjustment-OCXO (Non-Option 103)
88
Mhz Reference Adjustment-TCXO (Option 103)
91
Demodulator Adjustment
93
Demodulator Adjustment Setup
93
Demodulator Adjustment Locations
95
External Mixer Bias Adjustment (Non-Option 327)
96
External Mixer Bias Adjustment Setup
96
External Mixer Amplitude Adjustment (Non-Option 327)
97
External Mixer Amplitude Adjustment Setup
97
Conversion Loss Data
99
RYTHM Adjustment Setup
100
Required Test Equipment Summary
109
Hinged Assemblies
129
A2, A3, A4, and A5 Assembly Removal
141
Assembly Cables (1 of 2)
142
Power Supply Cover
149
Manufacturers Code List
183
Replaceable Parts
192
Automatic Fault Isolation References
279
TAM Tests Versus A3 Test Connectors
280
LP/Q Truth Table
307
Control Word at Primary Address (U3 and U4)
308
TAM Tests Versus Test Connectors
320
TAM Tests Versus Test Connectors
321
Sweep Width Settings
324
Gate Times
371
Automatic Fault Isolation References
378
TAM Tests Versus Test Connectors
381
Center Frequency Tuning Values
383
Sampling Oscillator Test Frequencies
387
Sampling Oscillator PLL Divide Numbers
395
Main Coil Coarse and Fine Dacs Voltages
403
Sweep Signal Destination Versus Span
410
Harmonic Mixing Number Versus Center Frequency
410
Sweep + Tune Multiplier Values
441
Automatic Fault Isolation References
454
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HP 8562E and is the answer not in the manual?
