Procedure 5.
A2, A3, A4, and A5 Assemblies
12. Secure the assemblies using the eight screws removed in “Removal,” step 3. See
Figure 4-7.
AlAlWl
A3 J602
A19Wl
w4
SK133

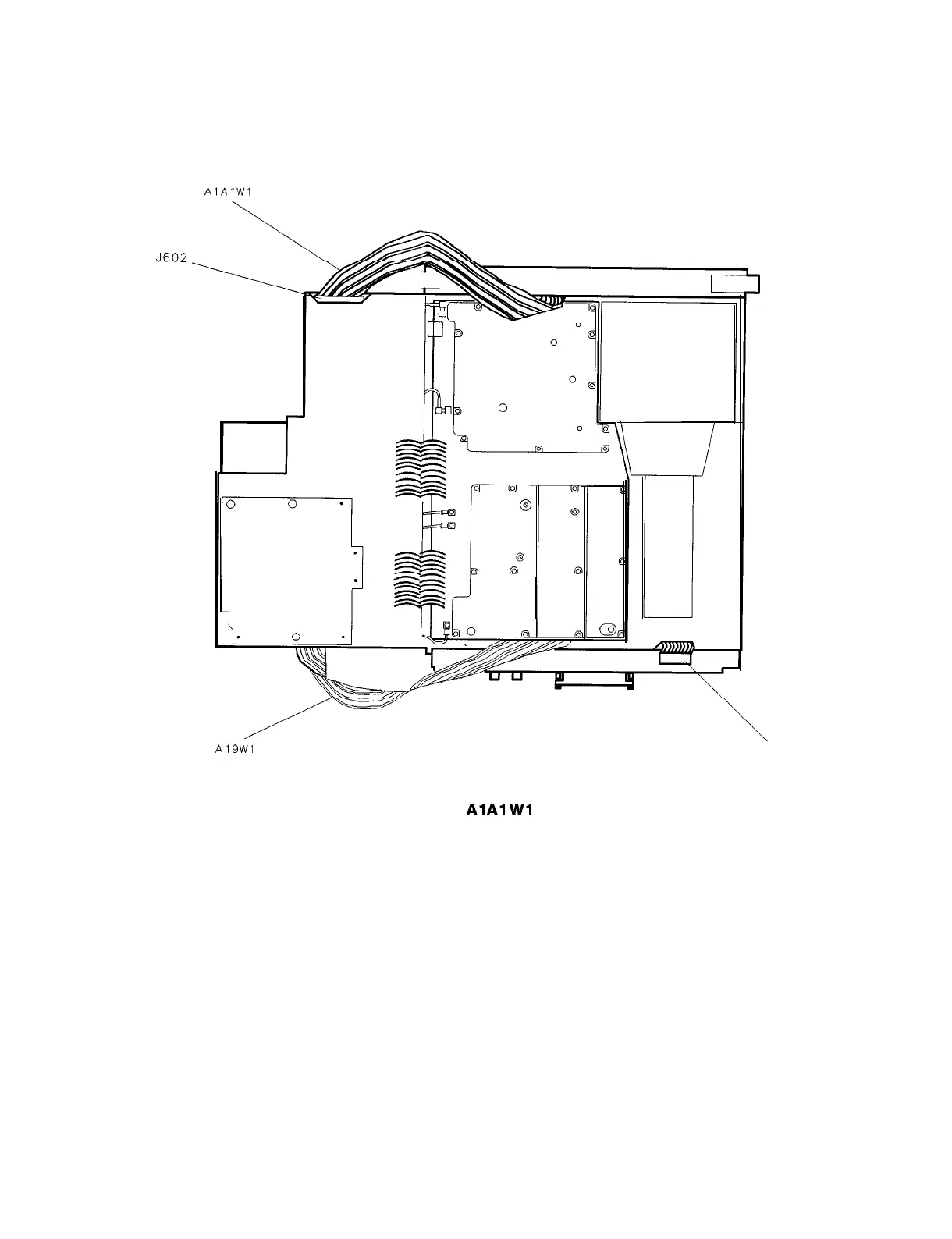

Figure 4-10. HP-IB and AlAl Wl Cable Placement
4-20 Assembly Replacement
