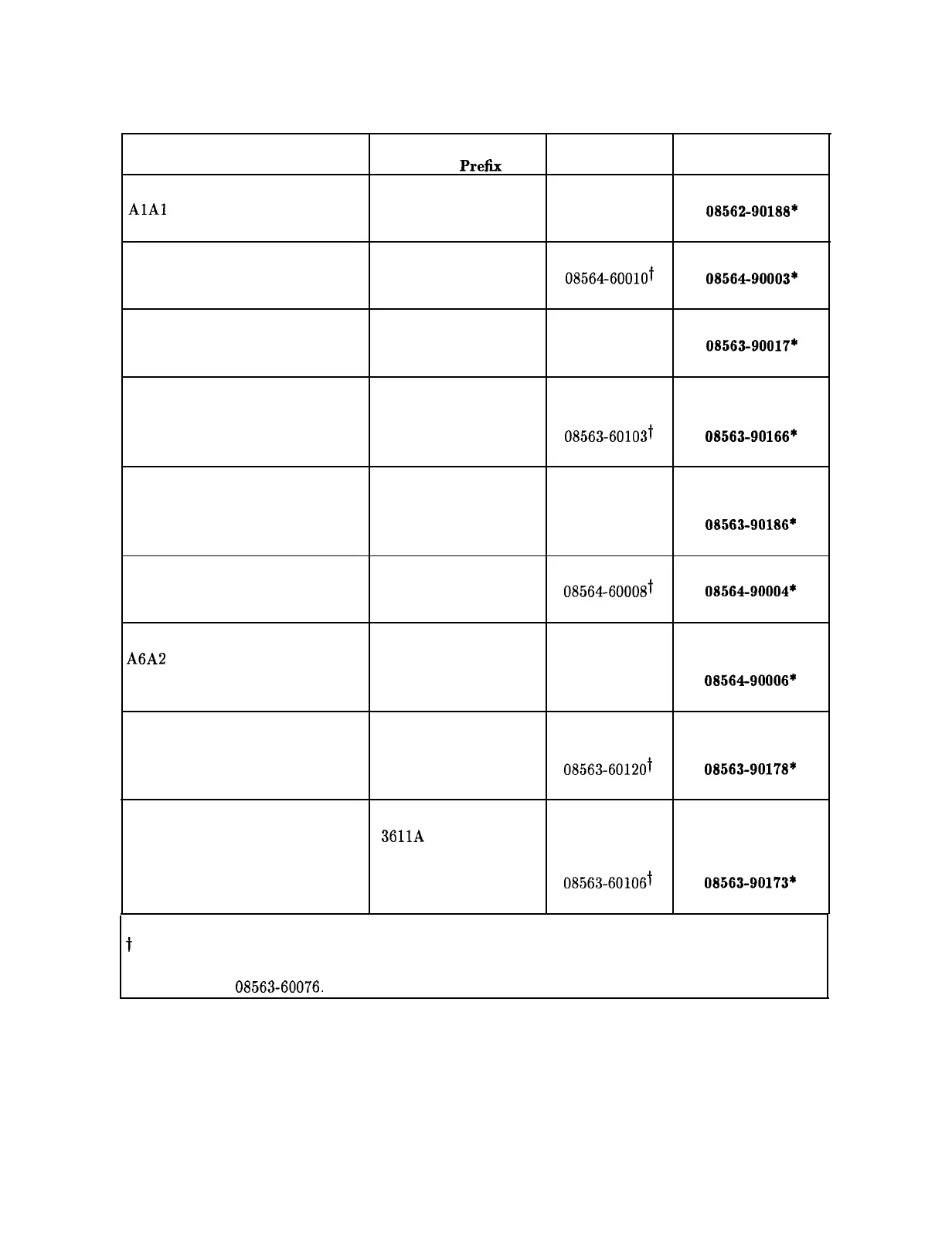

Table A-l. HP 8562 Spectrum Analyzer Documented Assemblies
Board Assembly
Instrument
Assembly
CLIP Part Number
Serial Prefix
Part Number
AlAl Keyboard
3611A and above
08562-60140 08562-90188*
A2 Controller Assembly
3611A and above
08564-60010t 08564-90003*
A3 Interface Assembly
3611A and above
08563-60098
08563-90017*
A4 Log Amplifier/Cal Osc
3611A through 3724A
08563-60076 0856390119
3728A and above
08563-60103t
08563-90166*
A5 IF Filter
3611A through 3720A 08563-60023 08563-90058
3724A and above 08563-60123
08563-90186*
A6 Power Supply 3611A and above
08564-60008t
08564-90004*
A6A2 Regulator Board 3611A through 3743A 08564-60009 0856490006
3745A and above 08564-60026
0856490006*
Al4 Frequency Control 3611A through 3632A
3711A and above
08563-60090
0856390152
08563-60120t
08563-90178*
Al5 RF Board (Option 103)
(with SIG ID)
3611A through 3632A
3635A through 3720A
3724A and above
08563-60085
08563-90128
08563-60092 08563-90163
08563-60106t
08563-90173*
* Denotes the current version of board assembly.
t Denotes refurbished board assemblies available. Refurbished board assembly part numbers have
9 as the second digit of the suffix. For example, 08563-69076 is the refurbished part number for
board assembly 08563-60076.
