Chapter 5, Advanced Operations
Status Reporting
Hardware Status Register #1 Group
The Hardware Status Register #1 Group contains information about the Test Set’s
hardware. This status group is accessed using the STATus commands. The
Hardware Status Register #1 Group uses 16-bit registers and includes a Condition
Register, Transition Filters, an Event Register, an Enable Register, and a
Summary Message. Refer to the
"Status Reporting Structure Overview" on page
260
section for a discussion of status register operation. Figure 16 shows the
structure and STATus commands for the Hardware Status Register #1 Group.

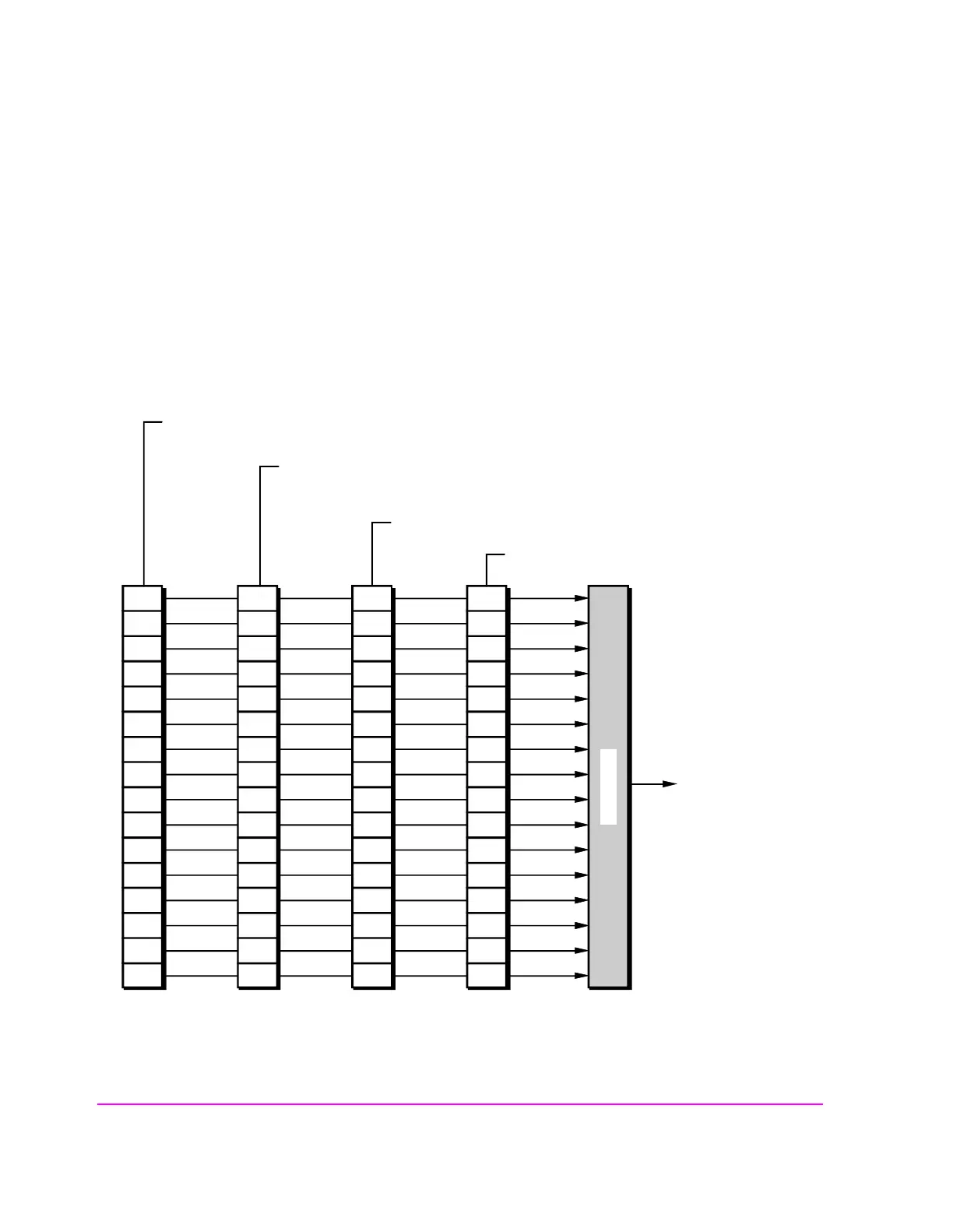

Figure 16 Hardware Status Register #1 Group
0
:STATus: HARDware1: ENABle
?
<integer>
:STATus: HARDware1: EVENt ?
:STATus: HARDware1
:PTRansition
:NTRansition
?
<integer>
?
<integer>
:STATus: HARDware1: CONDition ?
Summary Message Bit
Condition
Register
Transition
Filter Registers
Event
Register
Enable
Register
1
2
3
4
5
6
7
8
9
10
11
12
13
14
L
o
g
i
c
a
l
O
R
15
ch4drw13.drw
(to bit 0 of Status
Byte Register)
