Chapter 7, IBASIC Controller
Interfacing to the IBASIC Controller using Serial Ports

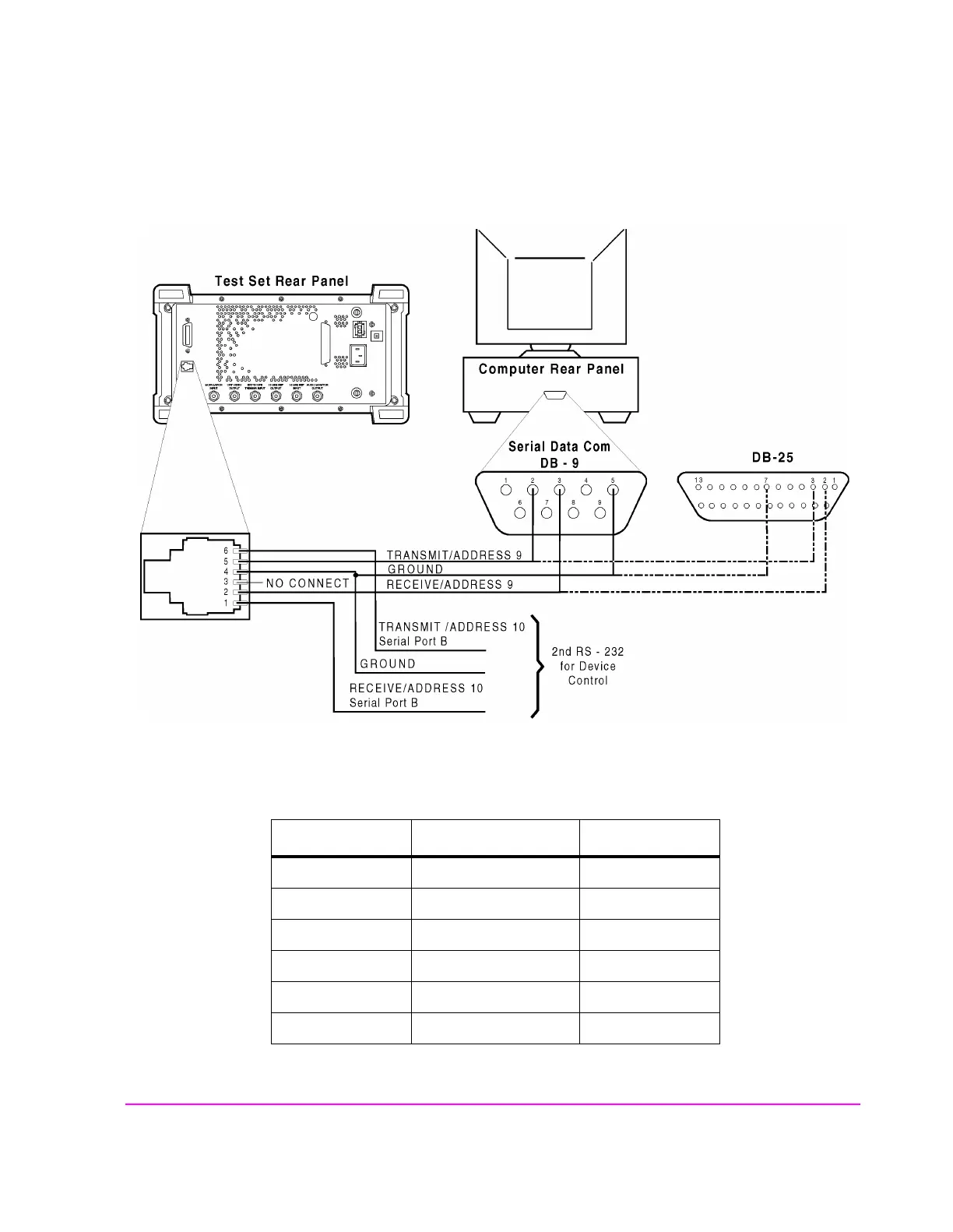

Figure 26 Connecting the Test Set Serial Port to a PC or Terminal
Table 39 Port 9 or Port 10 serial cable connections
RJ-11 pins Signal DB-9 pins
6 Transmit/Address 10 2
5 Transmit/Address 9 2
4Ground5
3not used
2 Receive/Address 9 3
1 Receive/Address 10 3
ch6drw4.drw
