Figure 10-5.
LOW/HIGH
SPEED=HIGH
III
o
HP

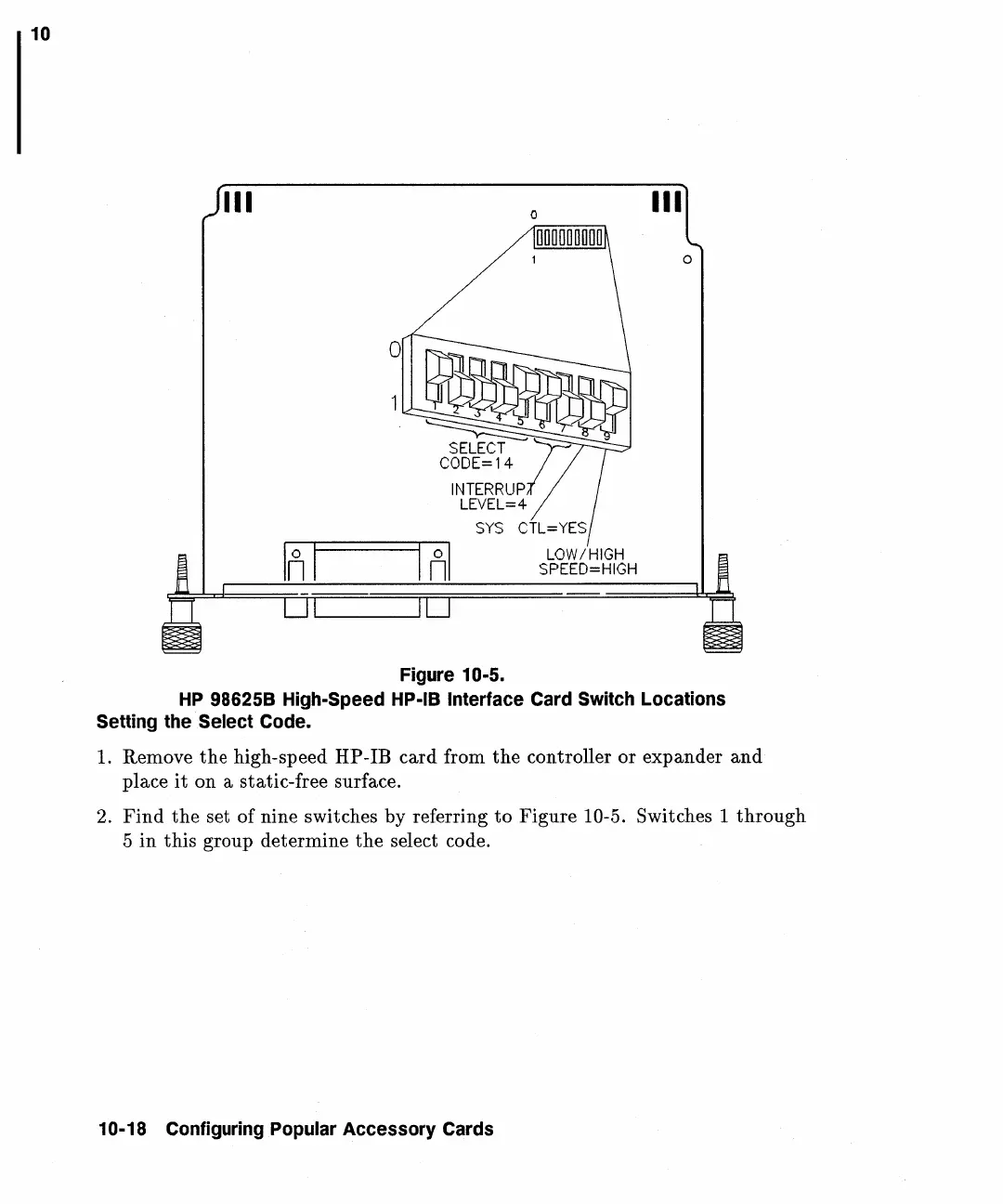

98625B High-Speed HP-IB Interface Card Switch Locations
Setting the
Select Code.
1.
Remove
the
high-speed HP-IB
card
from
the
controller
or
expander
and
place
it
on a static-free surface.
2.
Find
the
set
of
nine switches
by
referring
to
Figure 10-5. Switches 1
through
5
in
this group determine
the
select code.
10-18 Configuring Popular Accessory Cards
