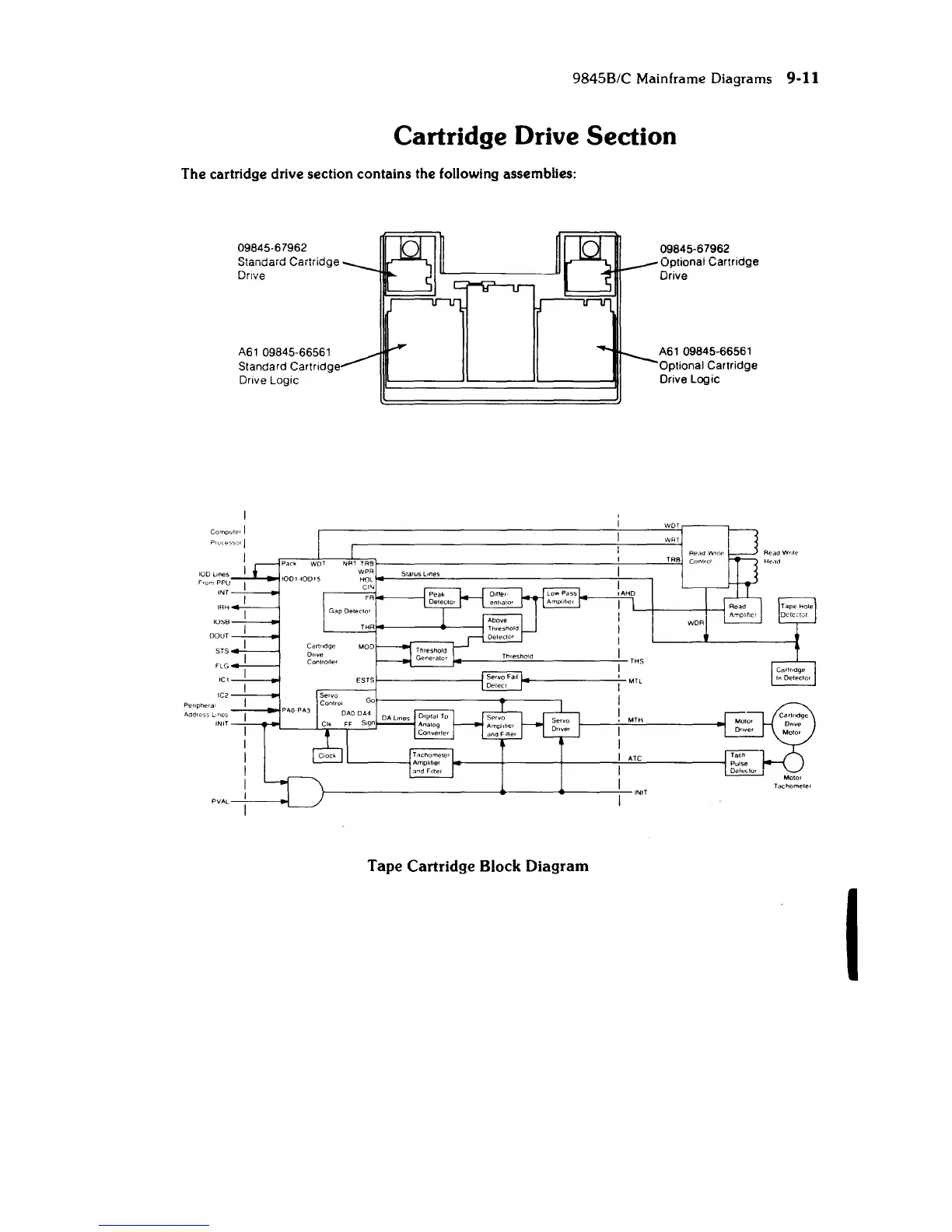

9845B/C Mainframe Diagrams
9-11
Cartridge Drive
Section
The cartridge drive section contains the following assemblies:
From PPU
INT
Peripheral
AddressL,nes
INIT
09845-67962
Standard
Cartridge
Drive
A61
09845-66561
Standard Cartridge
Drive Logic
Tape Cartridge Block
Diagram
09845-67962
Optional Cartridge
Drive
A61
09845-66561
Optional Cartridge
Drive Logic
