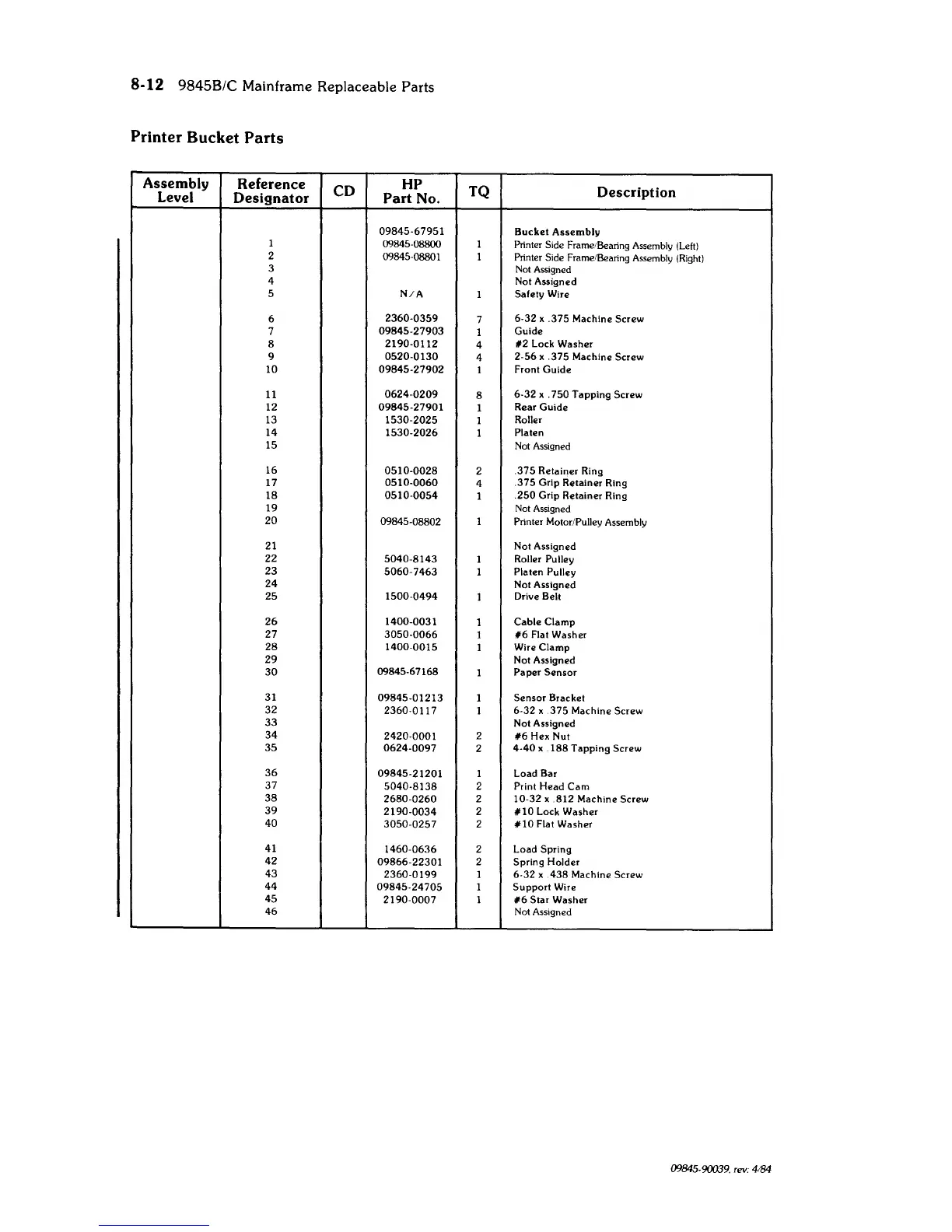

8-12 9845B/C Mainframe Replaceable Parts
Printer Bucket Parts
Assembly
Reference
CD
HP
TQ
Description
Level
Designator
Part No.
09845-67951
Bucket
Assembly
1
09845-08800
1
Printer Side Frame/Bearing
Assembly
(Left)
2
09845-08801
1
Printer Side Frame/Bearing
Assembly
(Right)
3
Not
Assigned
4 Not Assigned
5
N/A
1
Safety Wire
6
2360-0359
7
6-32
x
.375
Machine Screw
7
09845-27903
1
Guide
8
2190-0112
4
#2
Lock Washer
9
0520-0130
4
2-56
x
.375
Machine Screw
10
09845-27902
1
Front Guide
11
0624-0209
8
6-32
x
.750
Tapping
Screw
12
09845-27901
1
Rear GUide
13
1530-2025
1
Roller
14
1530-2026
1
Platen
15
Not
Assigned
16
0510-0028
2
.375
Retainer Ring
17
0510-0060
4
.375
Grip Retainer Ring
18
0510-0054
1
.250
Grip Retainer Ring
19
Not
Assigned
20
09845-08802 1
Printer Motor/Pulley Assembly
21 Not Assigned
22
5040-8143
1
Roller
Pulley
23
5060-7463
1
Platen Pulley
24
Not Assigned
25
1500-0494
1
Drive Belt
26
1400-0031
1
Cable
Clamp
27
3050-0066
1
#6
Flat Washer
28
1400-0015
1
Wire
Clamp
29
Not Assigned
30
09845-67168
1
Paper
Sensor
31
09845-01213
1
Sensor
Bracket
32
2360-0117
1
6-32 x
.375
Machine Screw
33
Not Assigned
34
2420-0001
2
#6
Hex Nut
35
0624-0097
2
4-40
x
.188
Tapping Screw
36
09845-21201
1
Load Bar
37
5040-8138
2 Print
Head
Cam
38
2680-0260
2
10-32
x
.812
Machine Screw
39
2190-0034
2
#10
Lock Washer
40
3050-0257
2
#10
Flat Washer
41
1460-0636
2
Load
Spring
42
09866-22301
2 Spring Holder
43
2360-0199
1
6-32
x
.438
Machine Screw
44
09845-24705
1
Support
Wire
45
2190-0007
1
#6
Star
Washer
46
Not
Assigned
09845-90039. rev:
