HP 9x9KS Series Handbook

For HP Internal Use Only

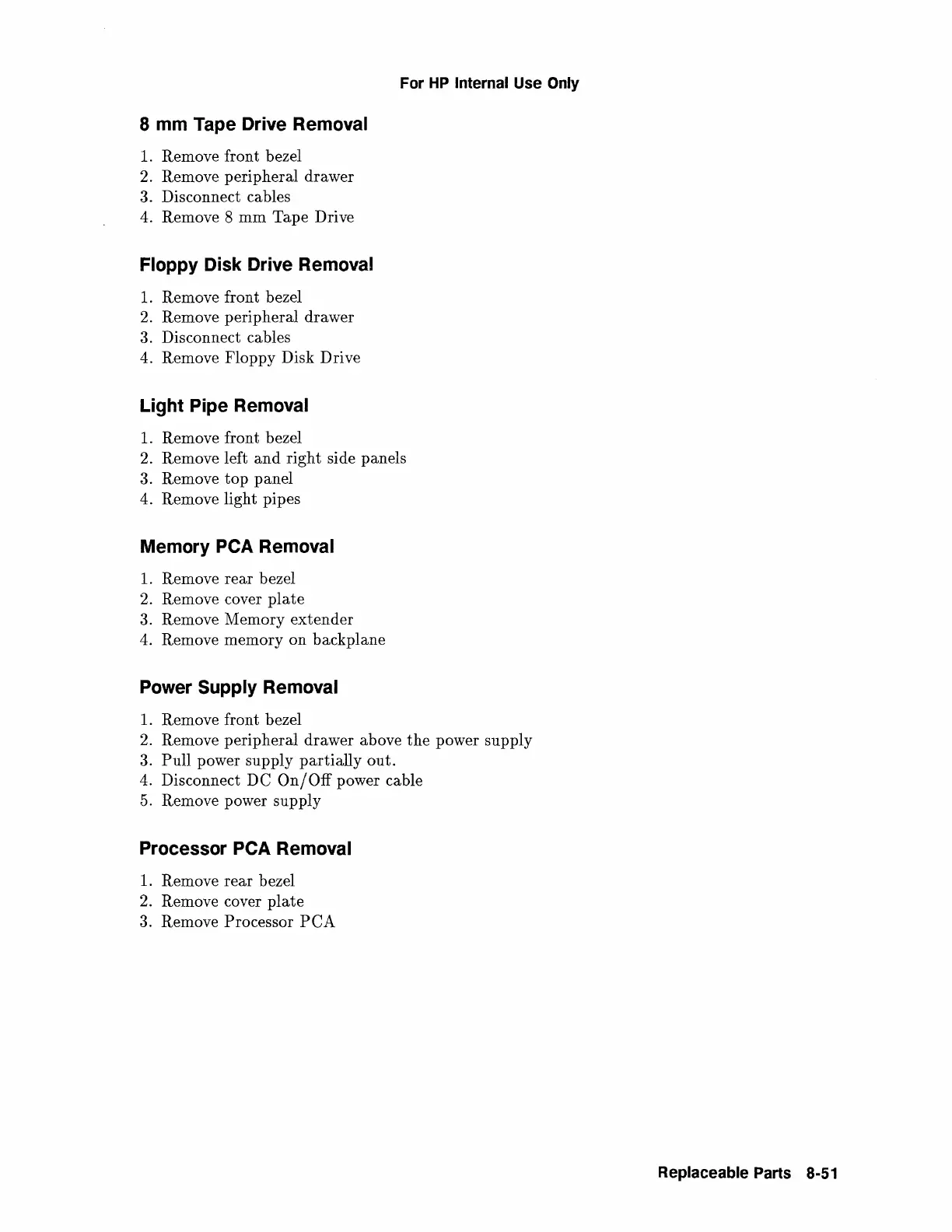

8 mm Tape Drive Removal
1. Remove front bezel
2. Remove peripheral drawer
3. Disconnect cables
4. Remove 8
mm Tape Drive
Floppy Disk Drive Removal
1. Remove front bezel
2. Remove peripheral drawer
3. Disconnect cables
4. Remove Floppy Disk Drive
Light Pipe Removal
1. Remove front bezel
2. Remove left
and right side panels
3. Remove
top panel
4. Remove light pipes
Memory PCA Removal
1. Remove rear bezel
2. Remove cover
plate
3. Remove Memory extender
4. Remove memory on backplane
Power Supply Removal
1. Remove front bezel
2. Remove peripheral drawer above
the power supply
3.
Pull power supply partially out.
4. Disconnect DC On/Off power cable
5. Remove power supply
Processor PCA Removal
1. Remove rear bezel
2. Remove cover
plate
3. Remove Processor PCA
Replaceable Parts 8-51
