HP 9x9KS Series Handbook

For HP Internal Use Only

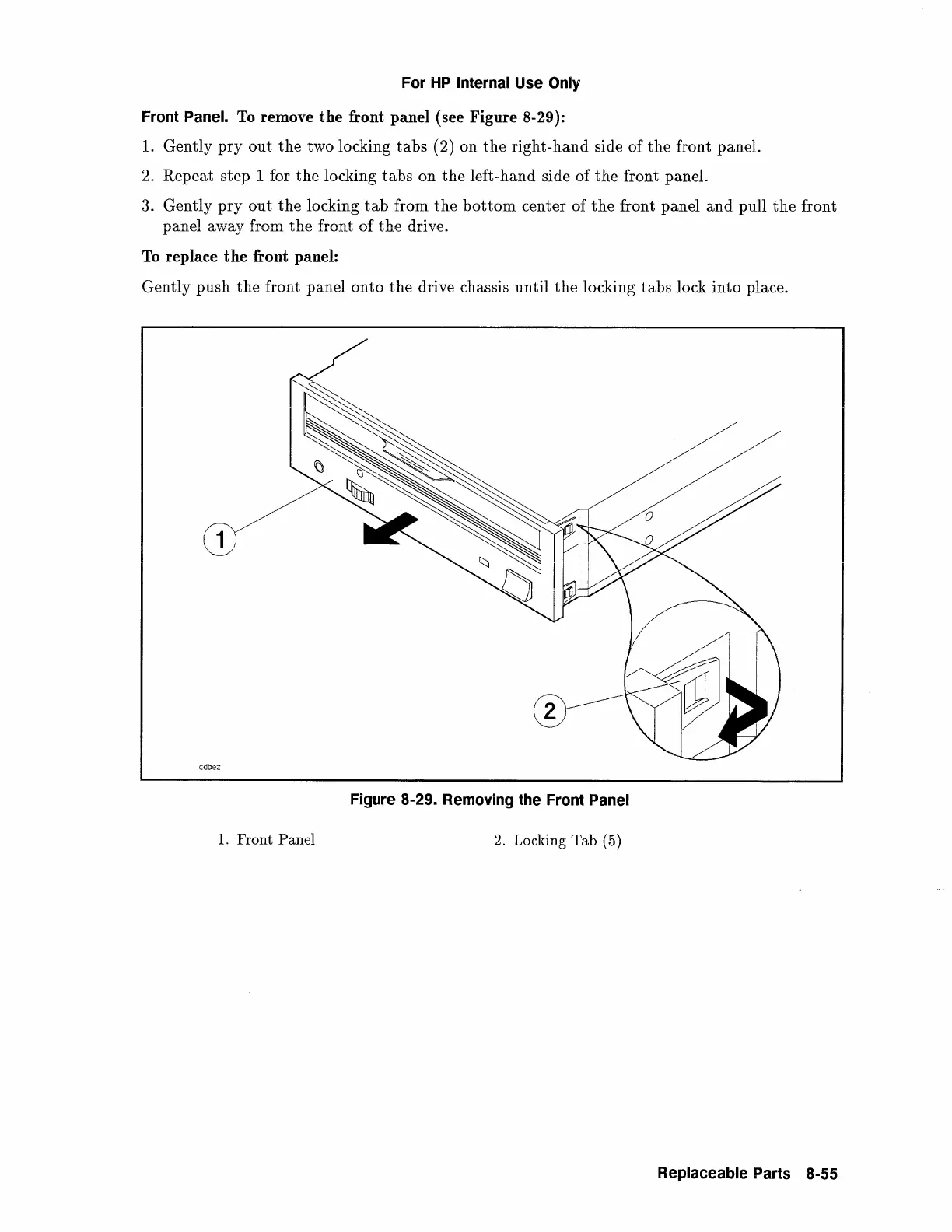

Front Panel. To remove the front panel (see Figure 8-29):
1. Gently pry out the two locking tabs (2) on the right-hand side of the front panel.
2. Repeat step 1 for the locking tabs on the left-hand side of the front panel.
3. Gently pry out the locking tab from the bottom center of the front panel and pull the front
panel
a\x;ay from the front of the drive.
To replace the front panel:
Gently push the front panel onto the drive chassis until the locking tabs lock into place.
cdbez
Figure 8-29. Removing the Front Panel
1. Front Panel
2. Locking Tab (5)
Replaceable Parts 8-55
