, For
HP
Internal Use
Only

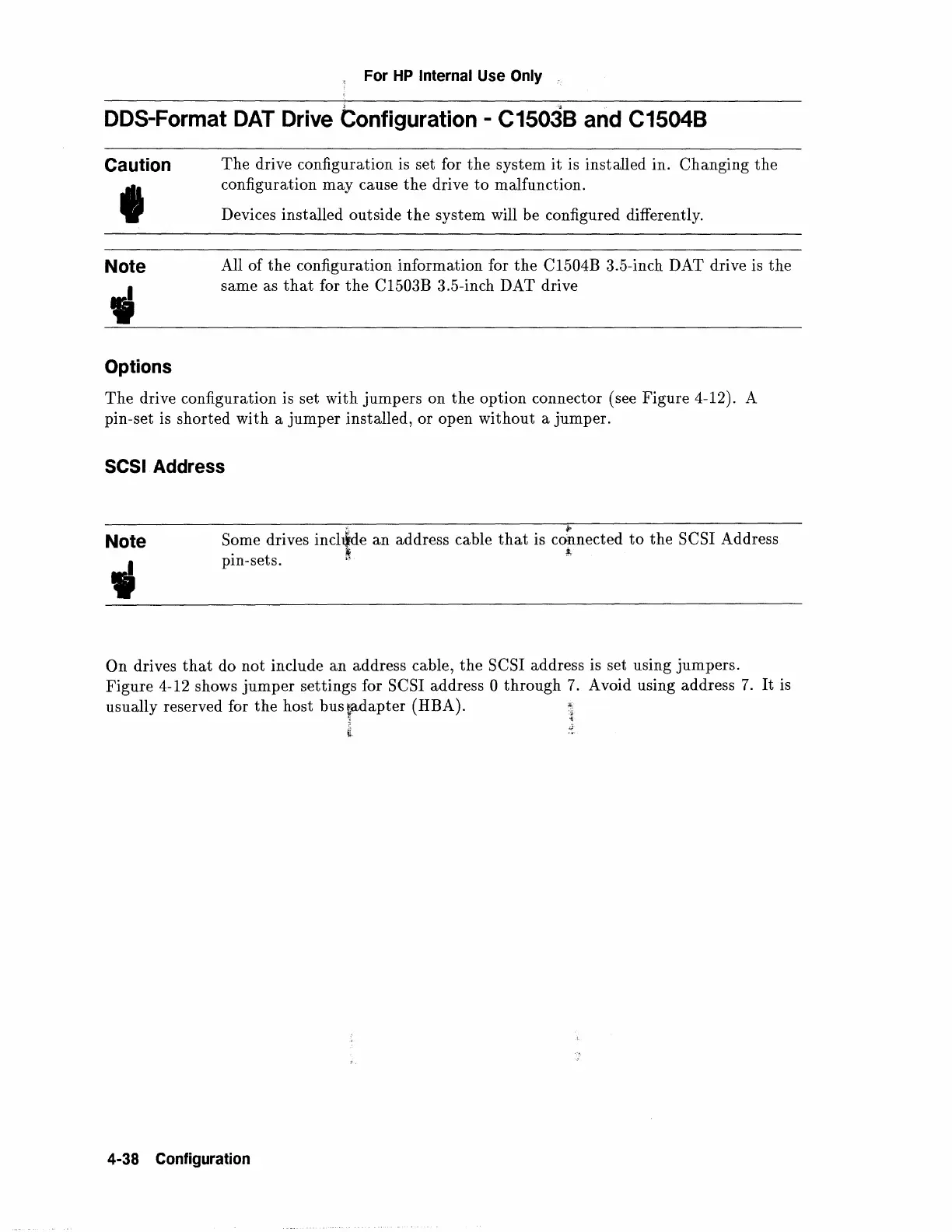

DDS-Format
OAT
Drive
Configuration- C1503B
and
C1504B
Caution
'
Note
•
Options
The
drive configuration is set for
the
system
it
is installed in. Changing
the
configuration
may
cause
the
drive
to
malfunction.
Devices installed outside
the
system will be configured differently.
All of
the
configuration information for
the
C1504B 3.5-inch DAT drive is
the
same as
that
for
the
C1503B 3.5-inch DAT drive
The
drive configuration is set with
jumpers
on
the
option connector (see Figure 4-12). A
pin-set is shorted
with
a
jumper
installed,
or
open
without
a
jumper.
SCSI Address
Note
~
.
Some drives inchide
an
address cable
that
is connected
to
the
SCSI Address
•
pin-sets .
~
~
On drives
that
do not include
an
address cable,
the
SCSI address is set using jumpers.
Figure 4-12 shows
jumper
settings for SCSI address 0
through
7.
Avoid using address
7.
It
is
usually reserved for
the
host
busrdapter
(HBA).
i
4-38 Configuration
