HP 9x9KS Series Handbook

For HP Internal Use Only
~'~'~'
~"'~'
"~'~'
~'
0
2
4
6
~'~"'
"~"'
dmadd
3
5
7

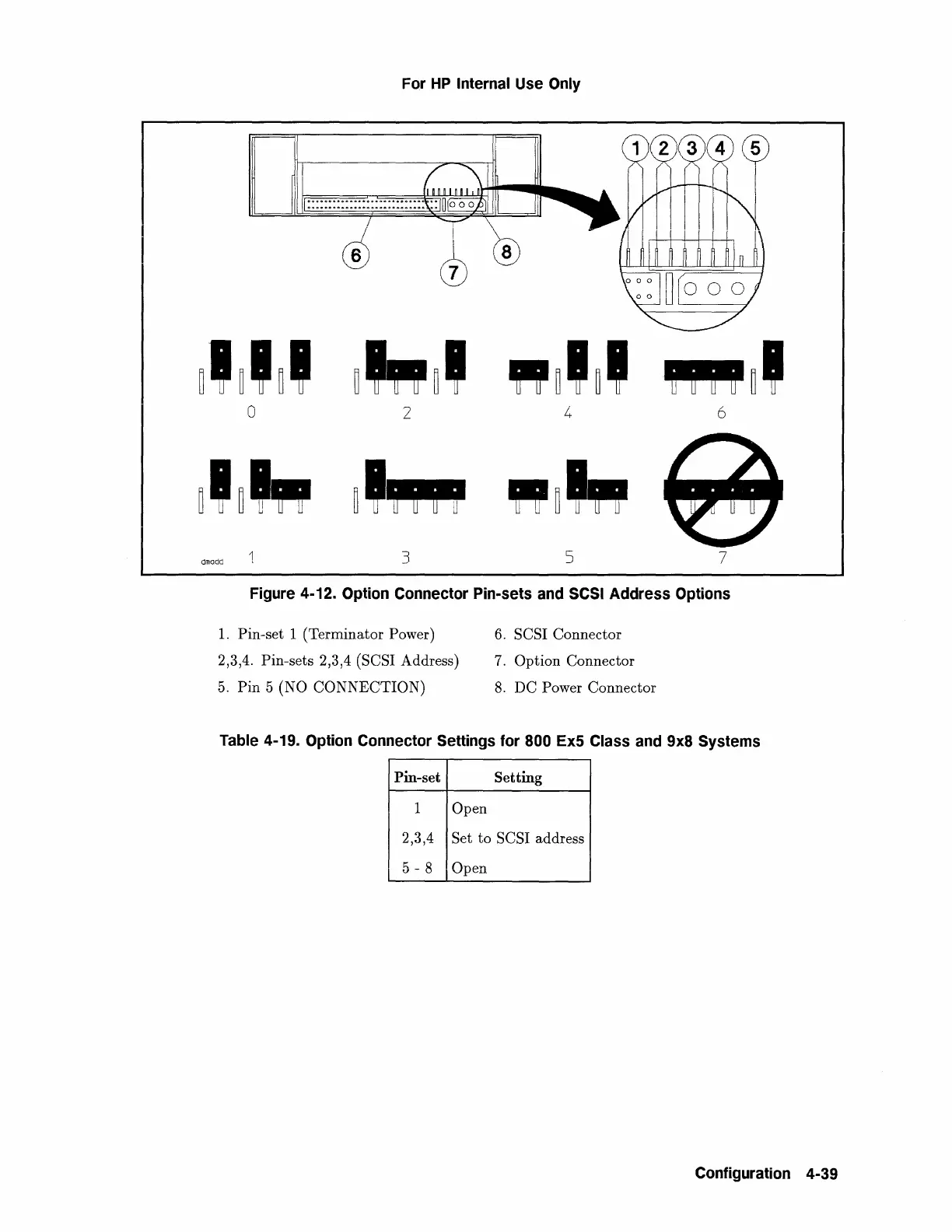

Figure 4-12. Option Connector Pin-sets and SCSI Address Options
1. Pin-set 1 (Terminator Power)
6. SCSI Connector
2,3,4. Pin-sets 2,3,4
(SCSI Address) 7. Option Connector
5. Pin 5 (NO CONNECTION)
8. DC Power Connector
Table 4-19. Option Connector Settings for 800 Ex5 Class and 9x8 Systems
Pin-set
Setting
1 Open
2,3,4
Set to SCSI address
5-8 Open
Configuration 4-39
