A4576
6-1
Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

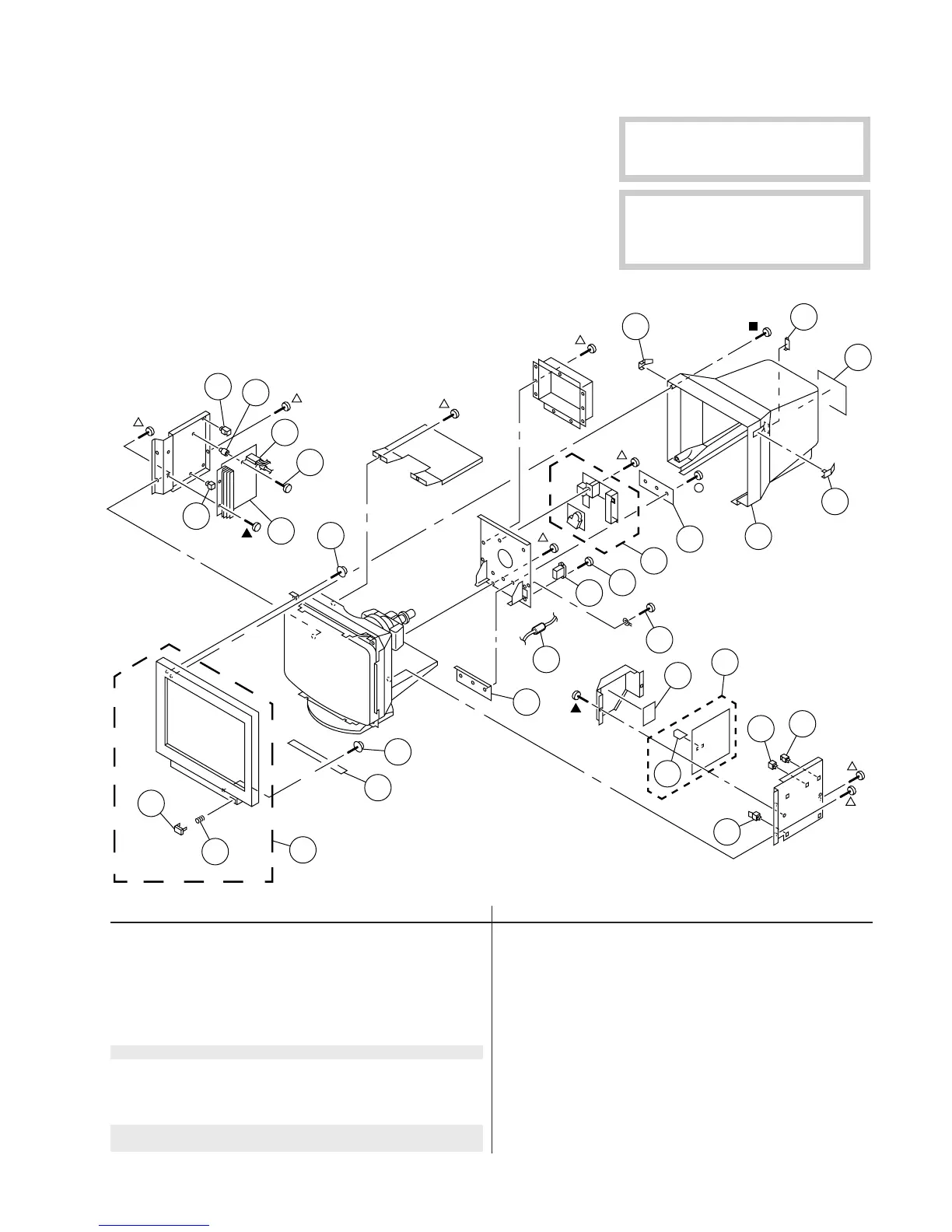

SECTION 6
EXPLODED VIEWS
6-1. CHASSIS
4 7-685-647-79 +BVTP 3X10
p 7-685-663-71 +BVTP 4X16
® 7-685-872-09 +BVTT 3X8
¢ 7-685-881-09 +BVTT 4X8
Les composants identifiés per un tramé
et une marque
¡
sont critiques pour la
sécurité. Ne les remplacer que par une
piéce portant le numéro spécifié.
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
15 4-062-115-01 SCREW +P 3.5X20 TYPE2
16 * 4-060-359-01 HOLDER, PRINTED CIRCUIT BOARD
17 * 3-701-903-11 HOLDER, PRINTED CIRCUIT BOARD
18 * 4-382-848-01 HOLDER, PRINTED CIRCUIT BOARD
19 * 3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD
20 * 8-933-277-00 G BOARD, COMPLETE 21
21 * 8-933-269-00 GA BOARD, COMPLETE
22 4-061-604-21 CABINET
23 4-061-605-21 COVER, SCREW
24 * 4-060-358-31 COVER, ECS
25 * 4-063-330-01 LABEL, INFORMATION
26 1-543-793-11 FILTER, CLAMP (FERRITE CORE)
27 * 4-061-694-02 SHEET, INSULATE
1 * X-4035-300-1 BEZEL ASSY 2, 3
2 * 4-061-970-11 BUTTON, POWER
3 4-042-593-01 SPRING, COMPRESSION
4 * 8-933-283-00 H BOARD, COMPLETE
5 4-029-432-01 SCREW (3X12), (+) BVWHTP
6 4-365-808-01 SCREW (5), TAPPING
7 * 1-694-382-11 TERMINAL BOARD ASSY, I/O
8 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
9 ¡ 1-251-382-11 INLET, AC 3P(WITH NOISE FILTE)
10 4-052-345-01 SCREW, (3X8) (+K), TAPPING
11 4-062-901-02 SHEET, CONNECTOR
12 * 8-933-275-00 A BOARD, COMPLETE
13 * 8-933-295-00 D BOARD, COMPLETE
14 ¡ X-4035-170-1 TRANSFORMER ASSY, FLYBACK
(NX-4142//J1D4)
10
11
21
1
12
22
2
13
23
3
14
24
15
25
5
16
6
17
7
18
26
19
9
20
4
17
18
8
23
27
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
