3.2 Determine Hole Locations for Installation
Determine the hole locations for mounting the outer slides, cable retainer, and
cable guides. The hole locations vary according to the type of cabinet into
which you are mounting the I/O drawer.

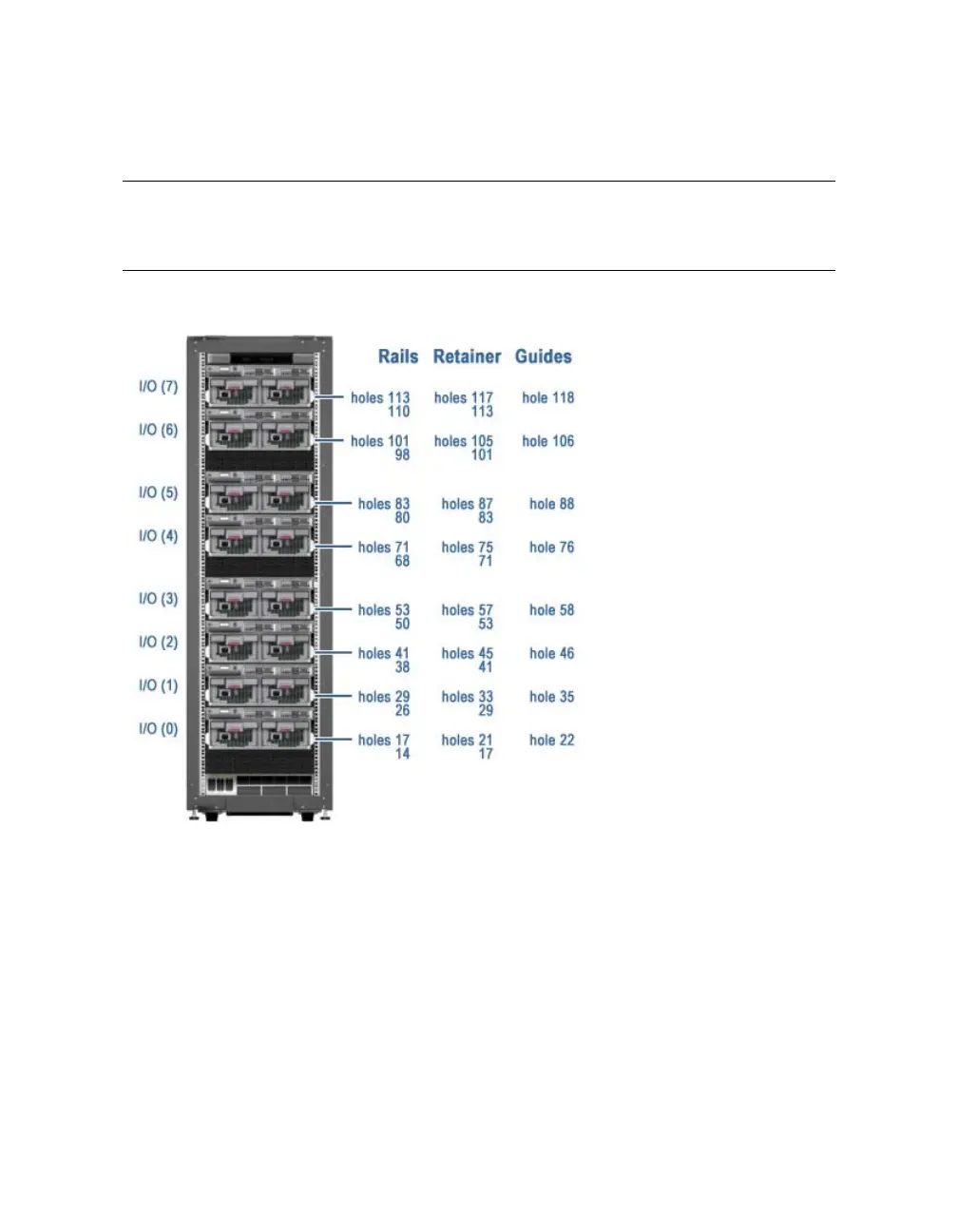

Figure 3–2 Hole Locations for GS1280 Systems (Front View)
3-4 hp AlphaServer ES47/ES80/GS1280 I/O Drawer Upgrade
