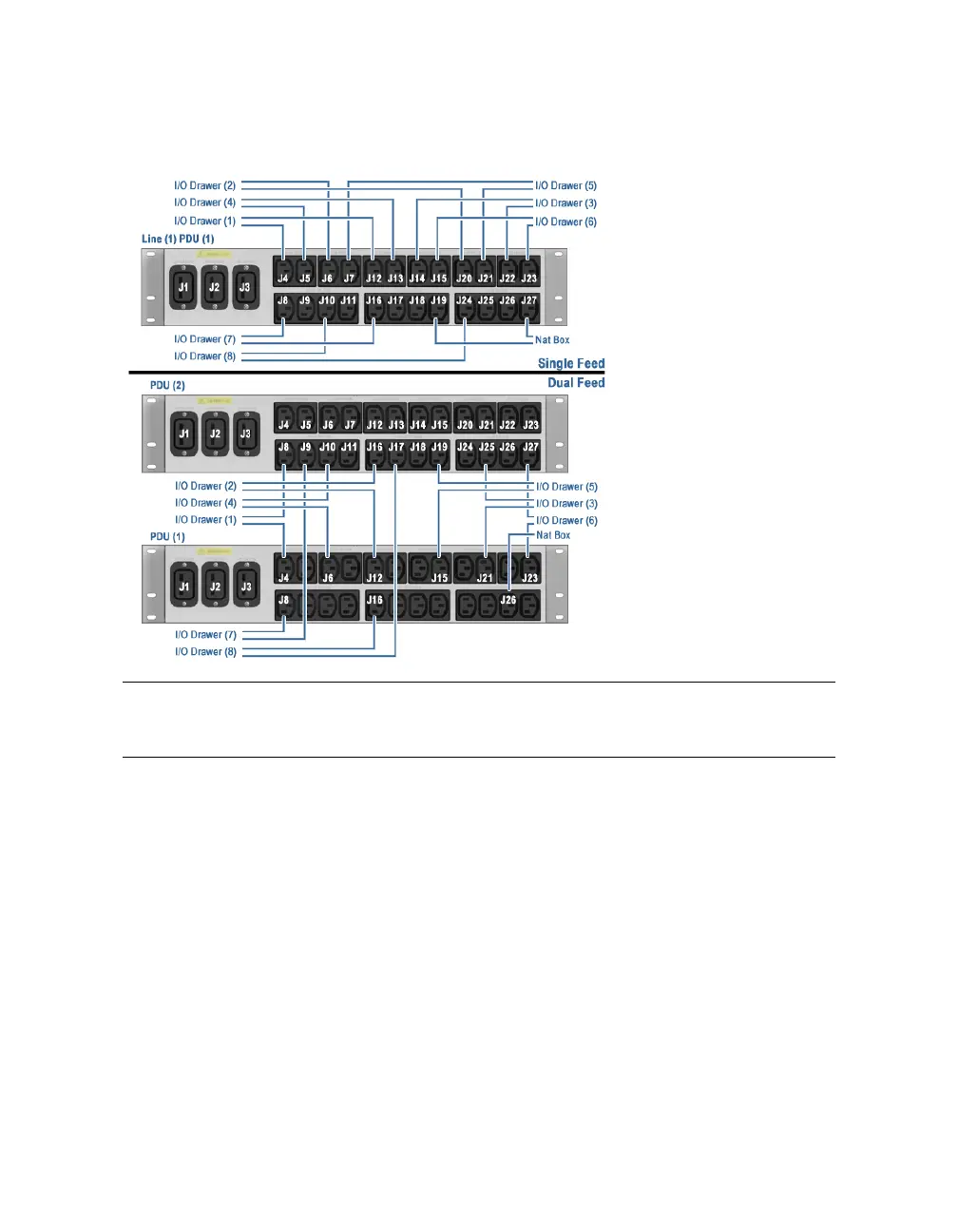

Figure 3–17 PDU Connections
Note: Create a proper service loop. Make sure you leave enough Ethernet and power cable
loose to allow full extension when the drawer needs to be serviced.
1. Plug the Ethernet cable into the I/O drawer and route the cable up the right vertical rail
to the HUB. Connect the cable to the HUB.
2. Secure the ground cable to the side of the I/O drawer an M5 x 0.8 x 12mm screw as
shown in Figure 3-16. Route the ground cable to the vertical rail, and, using a self-
tapping 5.5mm x 12mm screw, attach the cable to the rear surface of the vertical rail as
shown.
3. Install the two power cords into the drawer and plug them into the cabinet’s power
distribution unit (PDU) as shown in Figure 3-17.
If the cabinet has a second PDU installed for power redundancy, then plug each cord
into separate PDUs, to configure power redundancy to this newly installed drawer as
shown in Figure 3-17.
4. Slide the drawer in.
Cabling 3-27
