6. Disconnect the CD drive power cable, control cable, and audio cable (if an audio card is
present). See Figure 1-12. Note that these cables are keyed for easy replacement.

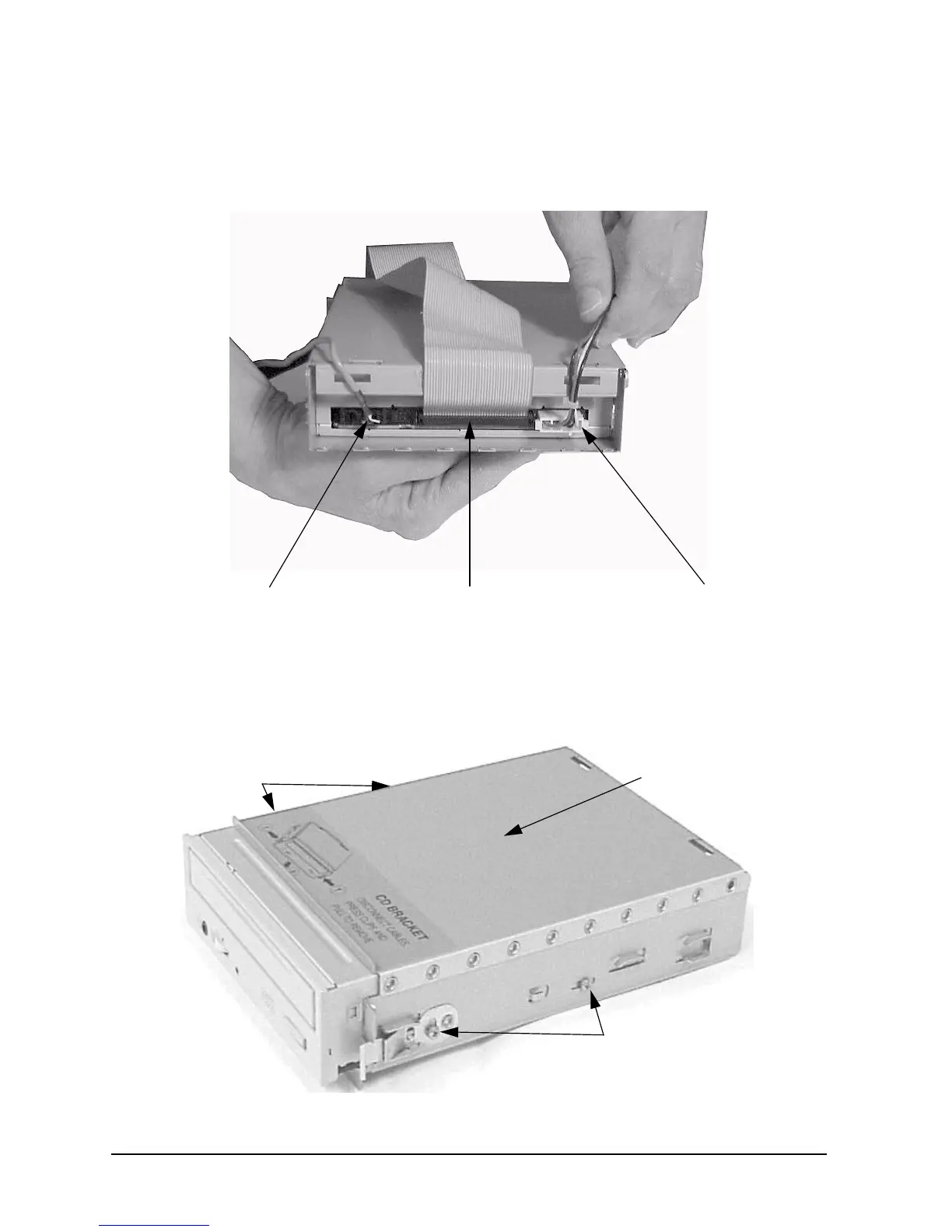

Figure 1-12. Disconnecting the CD Drive’s Cables
7. Unscrew the four CD drive mounting screws located on both sides of the CD drive bay.
See Figure 1-13.
Figure 1-13. Unscrew the Four CD Drive Mounting Screws
Audio Cable
Control Cable
Power Cable
Mounting Screws
Mounting Screws
CD Drive
Bay
