34 Chapter1
Remove/Replace System Components
Removing/Replacing System Components
I/O Card Replacement
This procedure assumes you have replaced the PCI cage backplane board in the system.
1. Replace the PCI backplane board in the PCI cage if you have not already done this.
Otherwise, skip this step. To replace the PCI backplane board, complete the procedure
in the section “PCI Backplane Board Replacement” found in this chapter.
2. Remove the I/O card from its anti-static bag, which protects it from any possible
electro-static discharge.
3. Grasp the I/O card’s bulkhead and the back edge and insert it into its PCI slot. See
Figure 1-33.

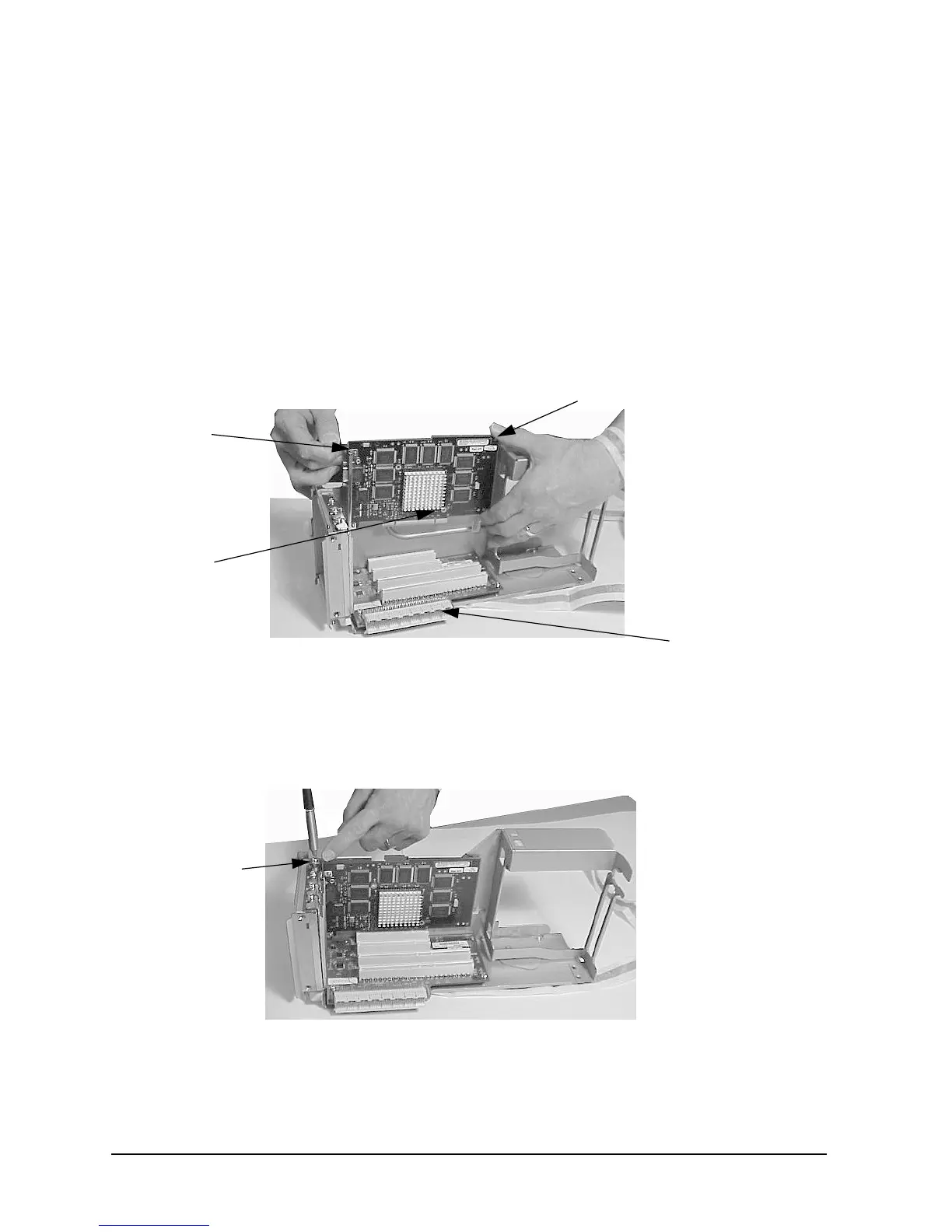

Figure 1-33. Inserting the I/O Card into its PCI Slot
4. Screw in the I/O card’s bulkhead screw to secure it in its PCI card slot. See Figure 1-34.
Figure 1-34. Screwing in the I/O Card’s Bulkhead Screw
I/O Card
I/O Card Slot
Back Edge
I/O Card
Bulkhead
Bulkhead
Screw
