Remove/Replace System Components
Removing/Replacing System Components
5. Remove the fan module from the workstation by tilting it back away from the
workstation chassis and lifting it out of the three fan-module slots on the front part of
the workstation chassis. See Figure 1-68.

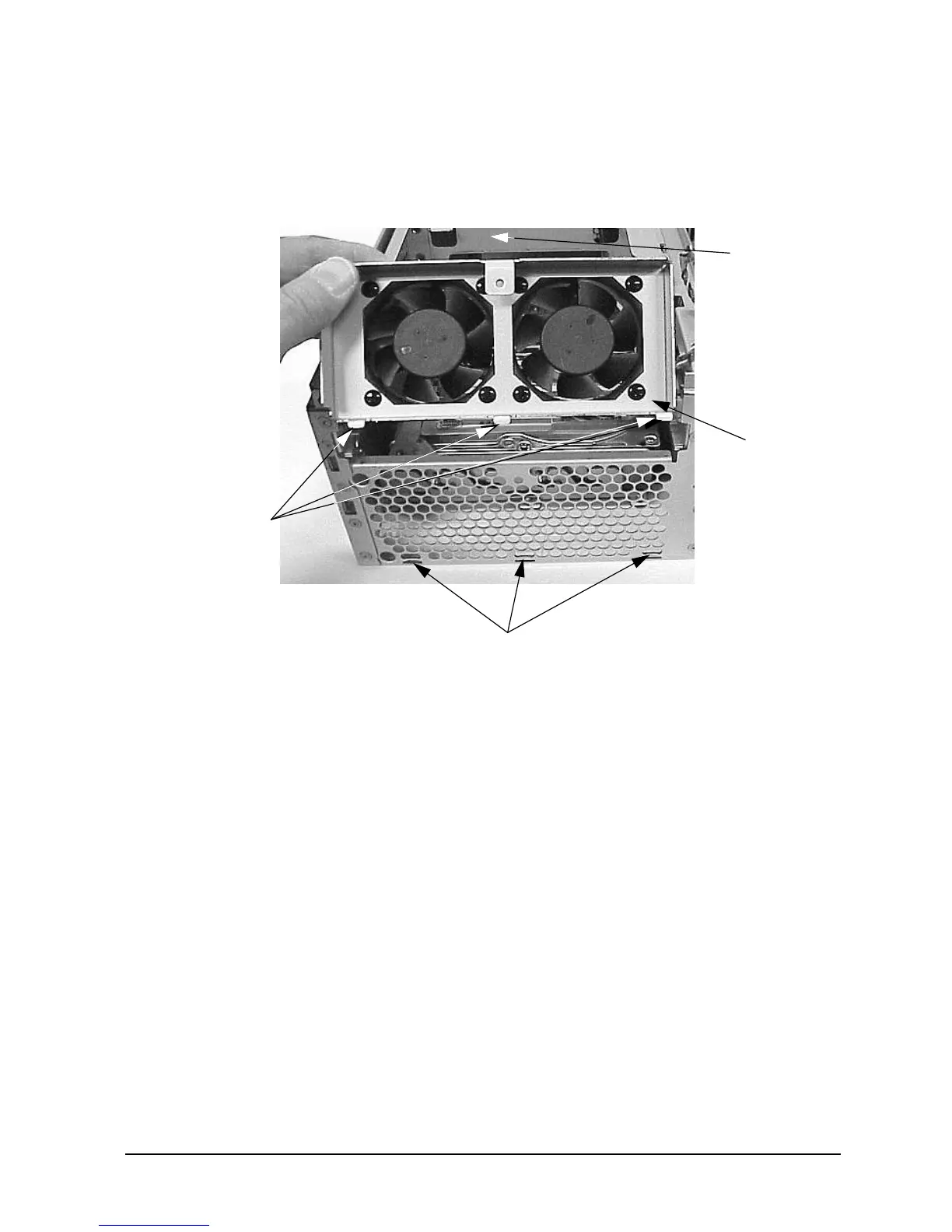

Figure 1-68. Removing the PCI Area Fan Module
Fan-Module Slots
Fan-Module Tabs
Fan Module
PCI Area
