Remove/Replace System Components
Converting Your System for Desktop or Rack-Mount Use
These seven cover locks hold the top and bottom covers to the system chassis. See
Figure 1-91.

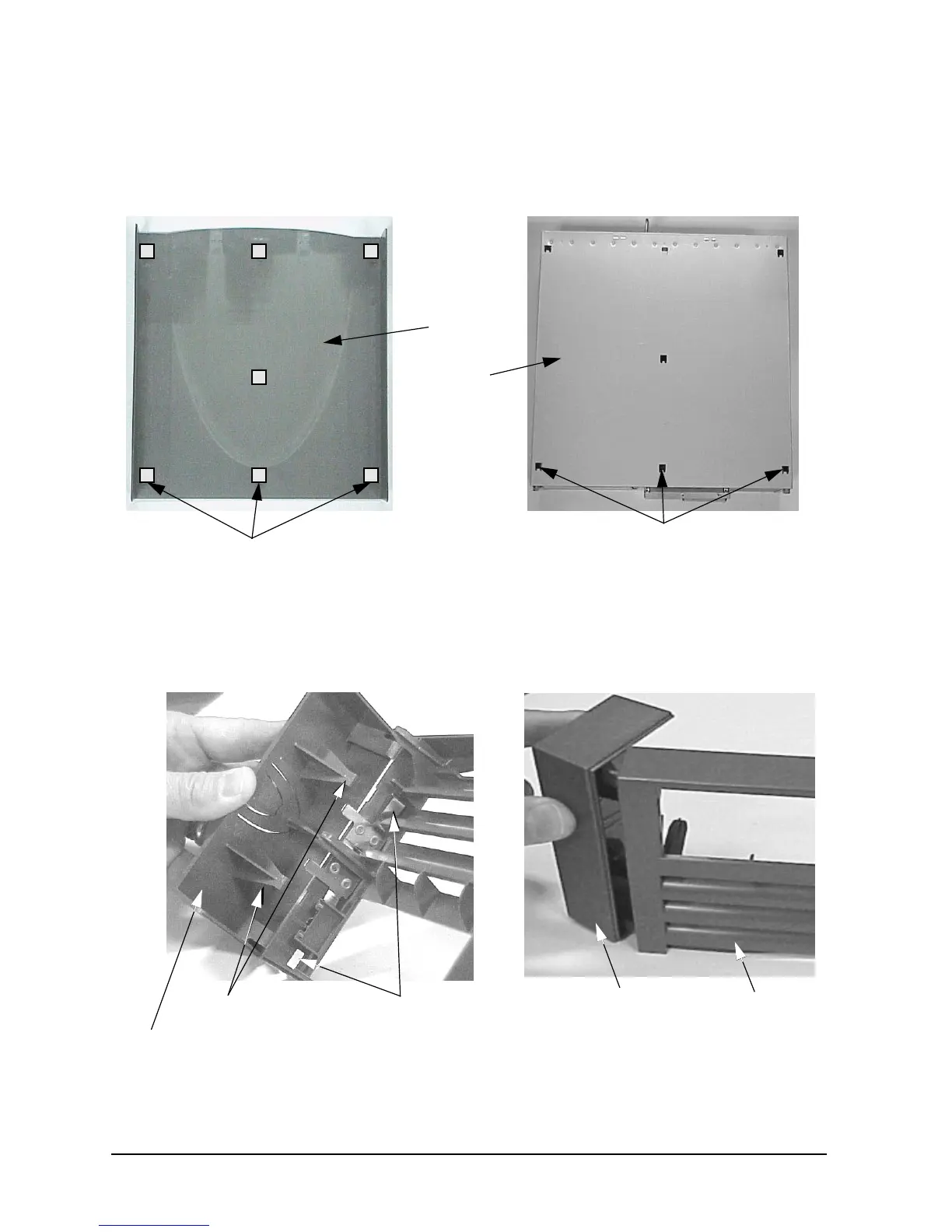

Figure 1-91. Plastic Cover Locks and their Slots on the System Chassis
3. Connect the end caps onto the front bezel by placing the retainer latches in their
appropriate slots and rotating the end caps in place. See Figure 1-92.
Figure 1-92. Connecting the End Caps Onto the Front Bezel
4. Push the bezel with its end caps onto the front of the system. You will feel it snap in
Plastic Cover Locks
Slots for the Cover Locks
System
Chassis
Plastic
Cover
Retainer Latches
Retainer Slots
End Cap
End Cap
Bezel
