HP b2600

Appendix B
DC Power Supply
Removing the DC Power Supply
80
3. Disconnect the power supply cables from the system board by pressing in on the latch retainers
and pull the cable connector out of the system board connector. See Figure B-4

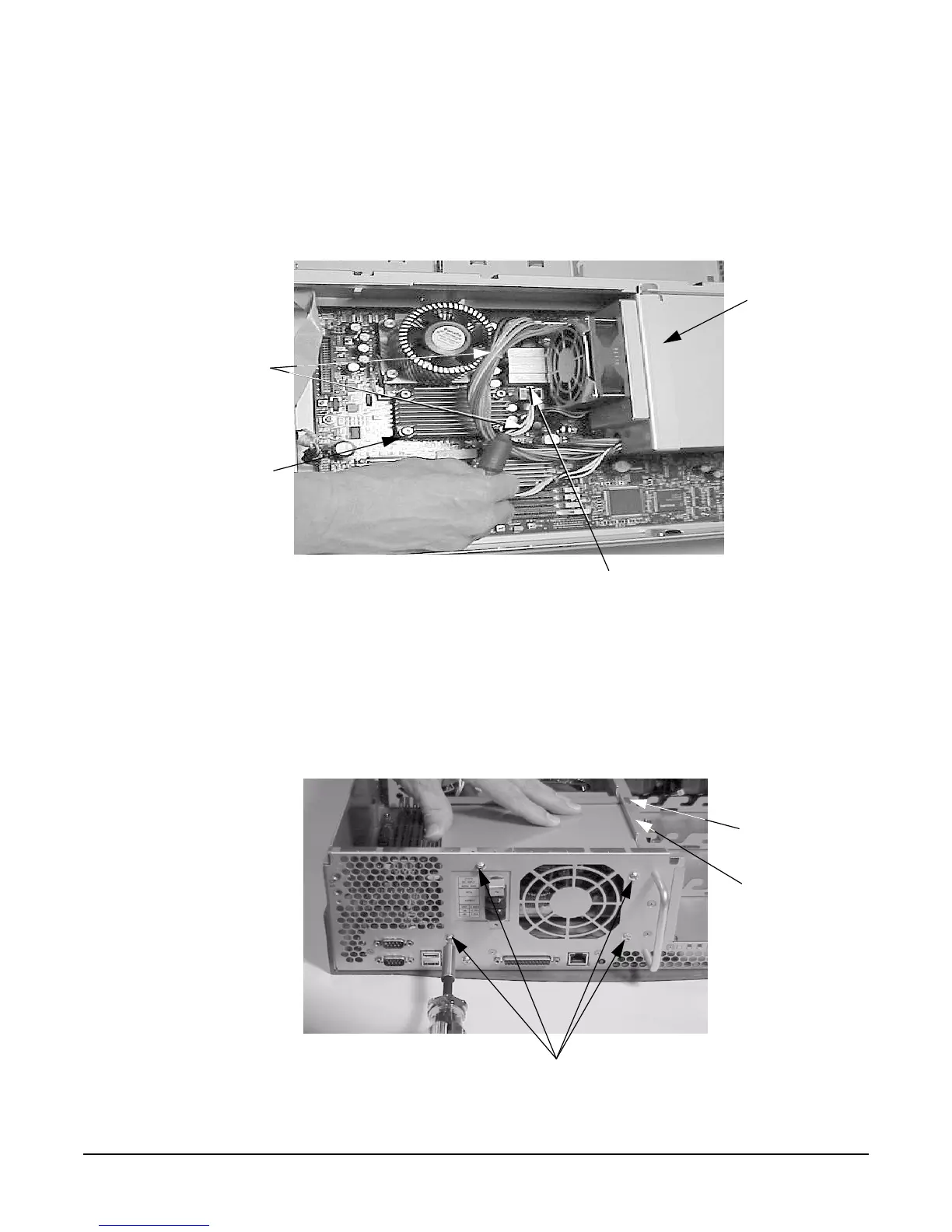

Figure B-4 Disconnect the Power Supply Cables
4. Unscrew the four power supply mounting screws located on the back of the system. See Figure
B-5 Note that there is a power supply support arm that fits into a slot on the system divider
panel. This support arm prevents the supply from falling onto the system board while you are
unscrewing the mounting screws
Figure B-5 Unscrewing the Four Power Supply Mounting Screws
Power Supply
Cables
Power Supply
System Board
Component Heat Sink
Power Supply Mounting Screws
Power Supply
Support Arm
System Divider
Panel
