Appendix C
Remove/Replace DAT Drives
Removing the DAT Drive
88
6. Slide the DAT drive out of the DAT drive bay and disconnect the DAT drive power and SCSI
cables. See
Figure C-5. Note that these cables are keyed for easy replacement.

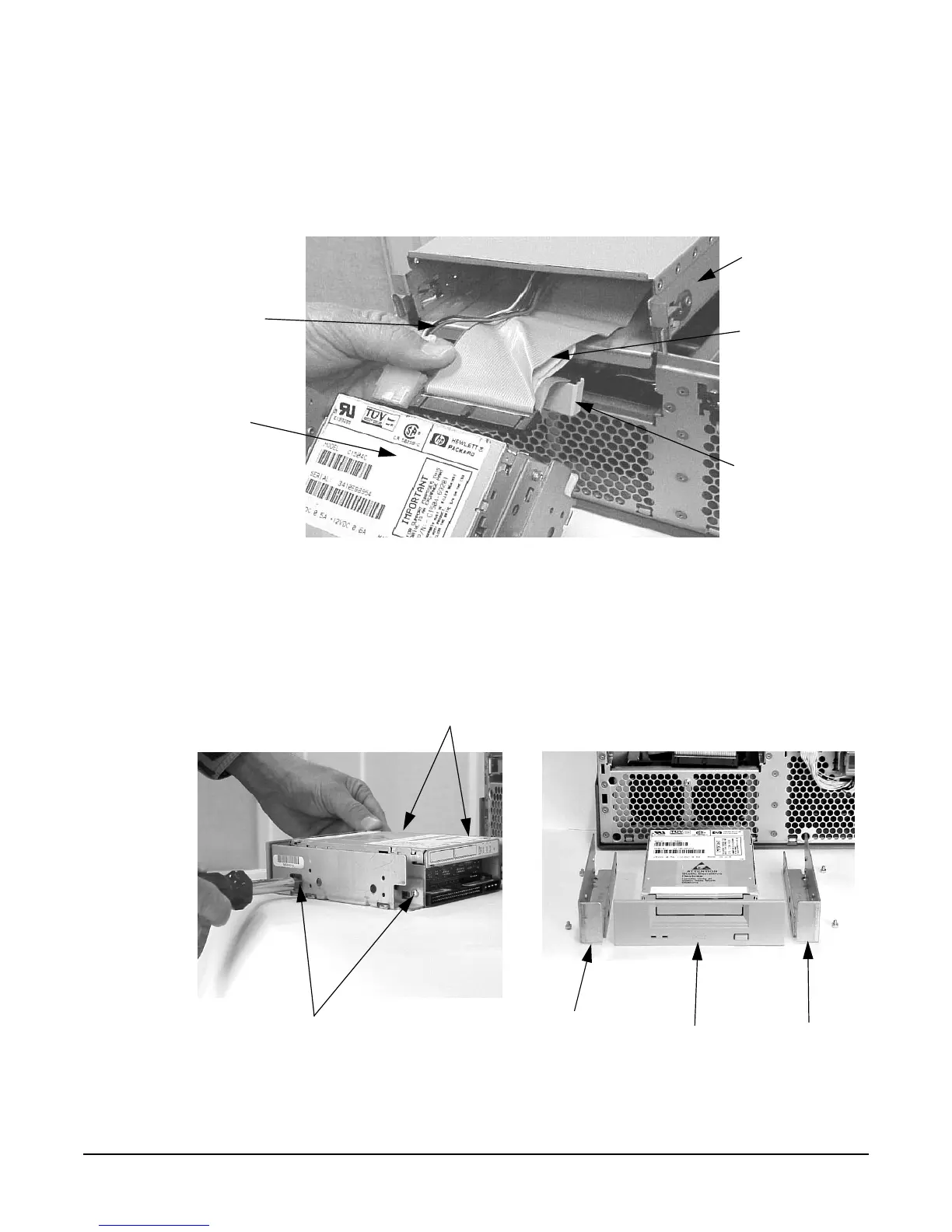

Figure C-5 Disconnecting the DAT Drive’s Cables
7. Unscrew the four bracket mounting screws from the DAT drive and remove the DAT drive’s two
brackets. See
Figure C-6.
Figure C-6 Unscrew the Four DAT Drive Bracket Mounting Screws
DAT Drive
Power Cable
SCSI Cable
DAT Drive Bay
SCSI Terminator
Bracket Mounting Screws
Bracket Mounting Screws
DAT Drive
Bracket
DAT Drive
Bracket DAT Drive
To Next Page
