Appendix C
Remove/Replace DAT Drives
Removing the DAT Drive
90
3. Rotate the PCI cage over so you can see the card(s) inside the PCI cage and observe the SCSI
cable and how it is folded. See
Figure C-8. Next, disconnect the SCSI cables connector from the
SCSI card and note the connection used on the component side of the SCSI card. See
Figure C-8.

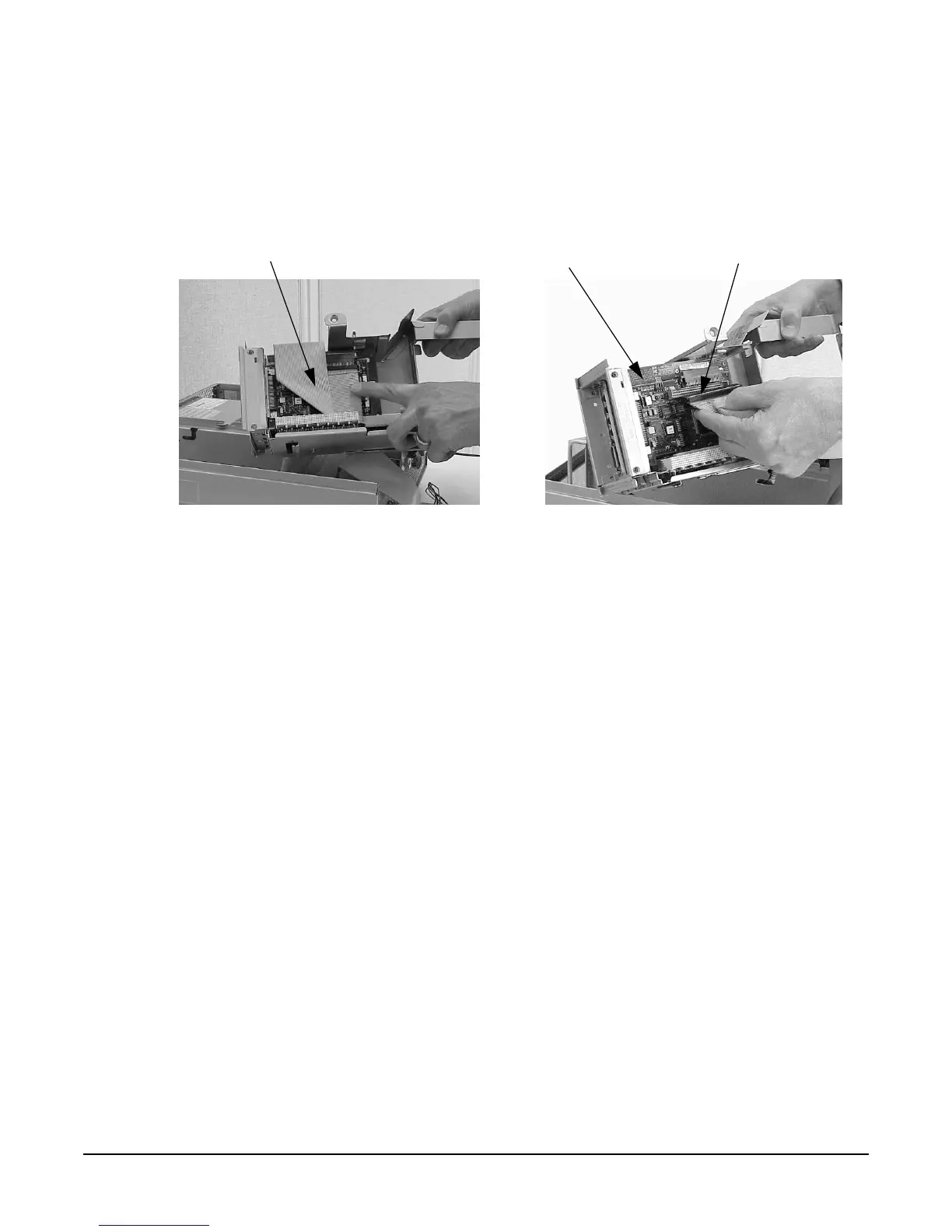

Figure C-8 Disconnection the SCSI Cable
SCSI Card
SCSI Cable Connector
Folded SCSI Cable
To Next Page
