Appendix C

Remove/Replace DAT Drives

Replacing the DAT Drive

95

3. Route the SCSI cable over the exposed edges of the I/O cards as shown in Figure C-16. Grasp hold

of the PCI cage handle and install the PCI cage in the workstation.

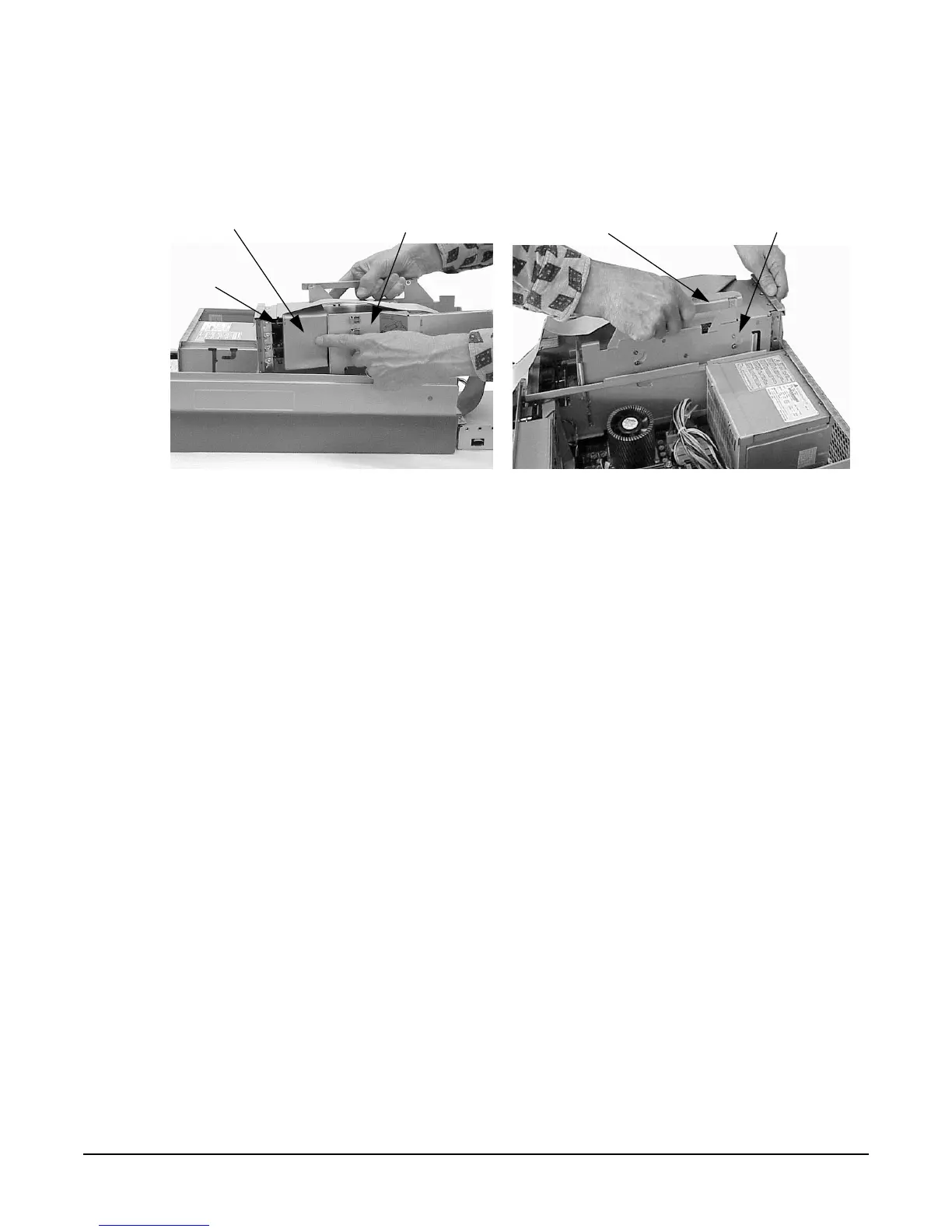

Figure C-16 Routing the SCSI Cable and Installing the PCI Cage

PCI Cage Handle

PCI Cage

SCSI Cable

PCI Cage Cover

I/O Cards
