HP B2600 Workstation Disassembly November 2005
Page 8
9.

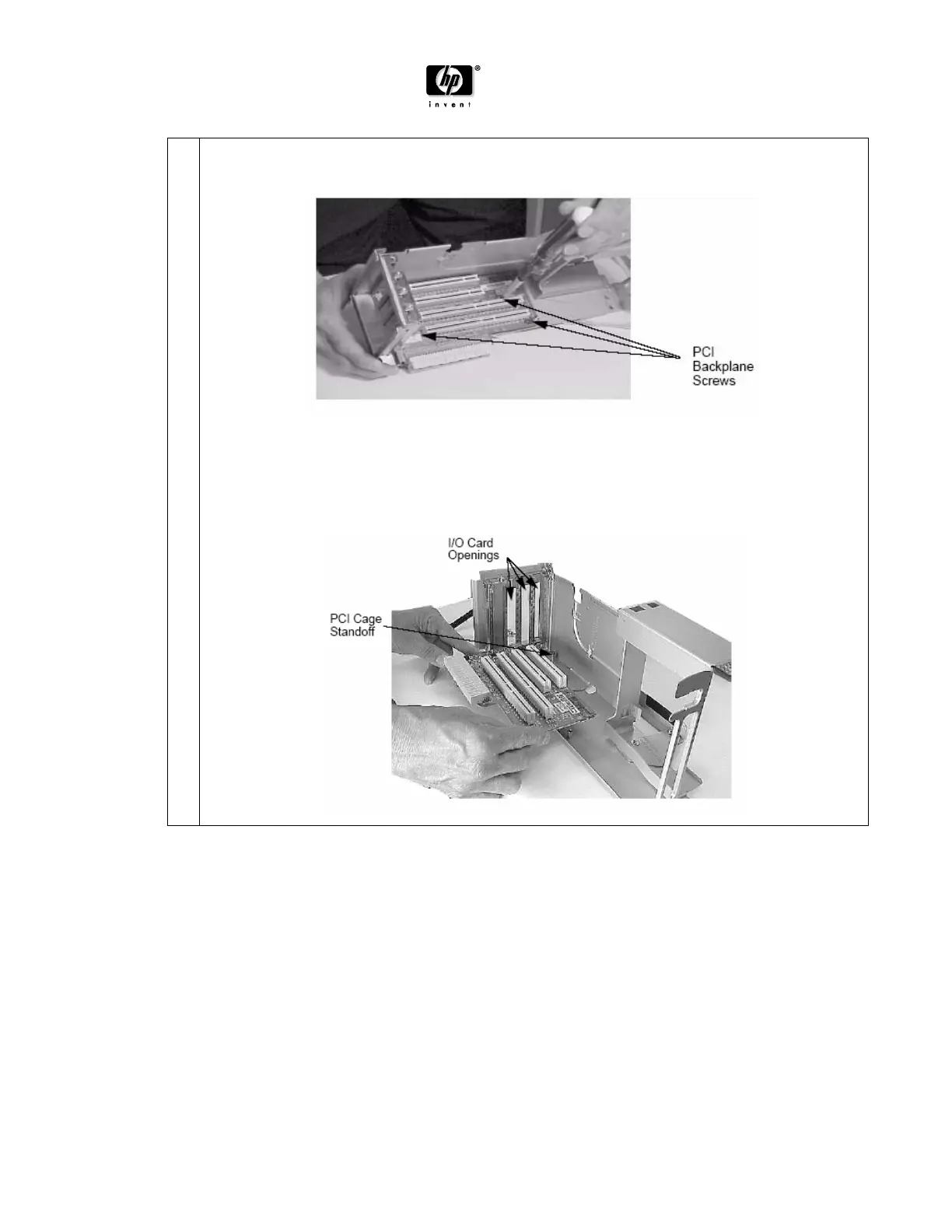

Remove the PCI backplane.
Unscrew the three T-15 Torx screws.
Slide the PCI backplane board away from the PCI cage’s I/O card openings and remove
it from the PCI cage. Note that the PCI backplane board has two elongated slots cut in it that
allow the card to slide in grooves located on the top of two PCI cage standoffs. The PCI
backplane board will stop sliding when it reaches the opposite end of the elongated slot. At
this point, the slot has been enlarged to allow you to lift the PCI backplane board out of the
PCI cage
.
