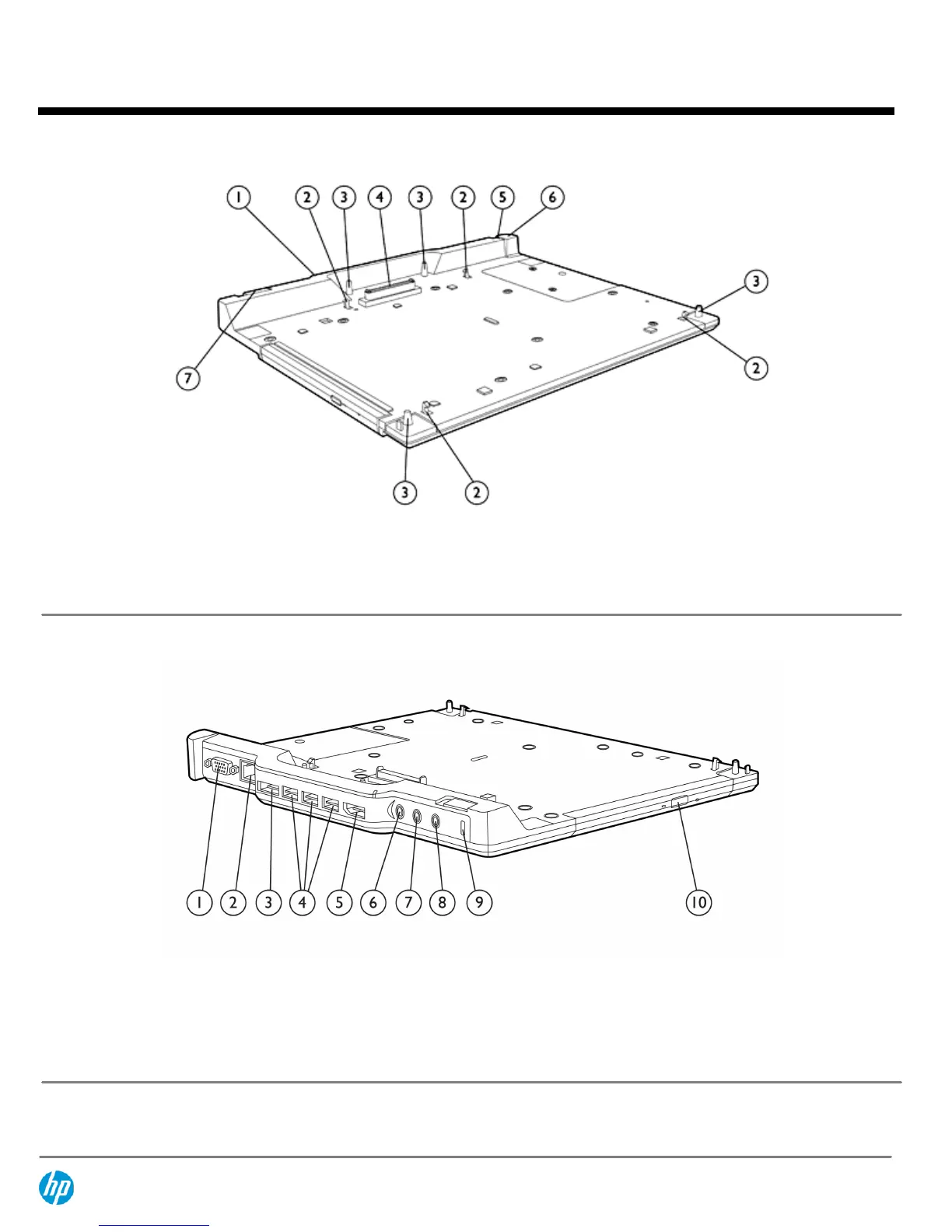

HP 2740 Ultra-Slim Expansion Base
1. AC power connect light 5. Connection light
2. Computer connect/release mechanisms 6. Connection latch
3. Docking posts 7. Cable lock selection slider
4. Docking connector
HP 2740 Ultra-Slim Expansion Base Rear/Right Side
1. VGA port 6. Audio-in jack
2. LAN/Ethernet port 7. Audio-out jack
3. eSATA port 8. Power connector
4. USB 2.0 ports (3) 9. Notebook lock slot
5. DisplayPort 1.1 10. Optical drive
QuickSpecs
HP Ultra-light Docking Stations
Overview
DA - 13639 North America — Version 9 — November 20, 2013 Page 7

HP B9C87AA Specifications

General

Brand	HP
Model	B9C87AA
Category	Docking Station
Language	English
