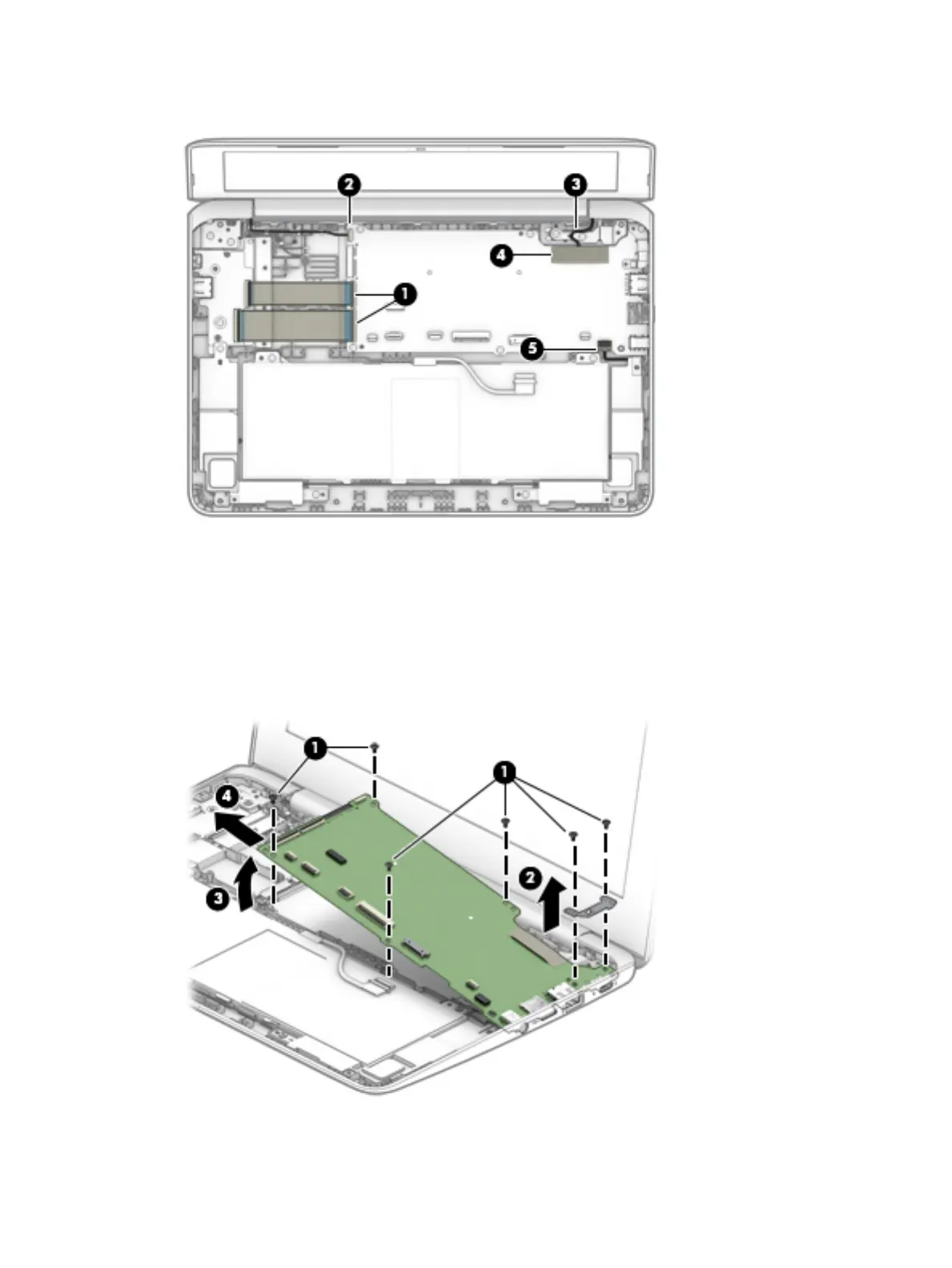

5. Disconnect the speaker cable (5) from the system board.
6. Remove the six Phillips M2.0×4.1 screws (1) that secure the system board to the bottom cover.
7. Remove the system board bracket (2).
The system board bracket is available using spare part number L14359-001.
8. Lift the left edge of the system board (3) until it rests at an angle.
9. Remove the system board (4) by sliding it up and to the left at an angle.
Reverse this procedure to install the system board.
38 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
