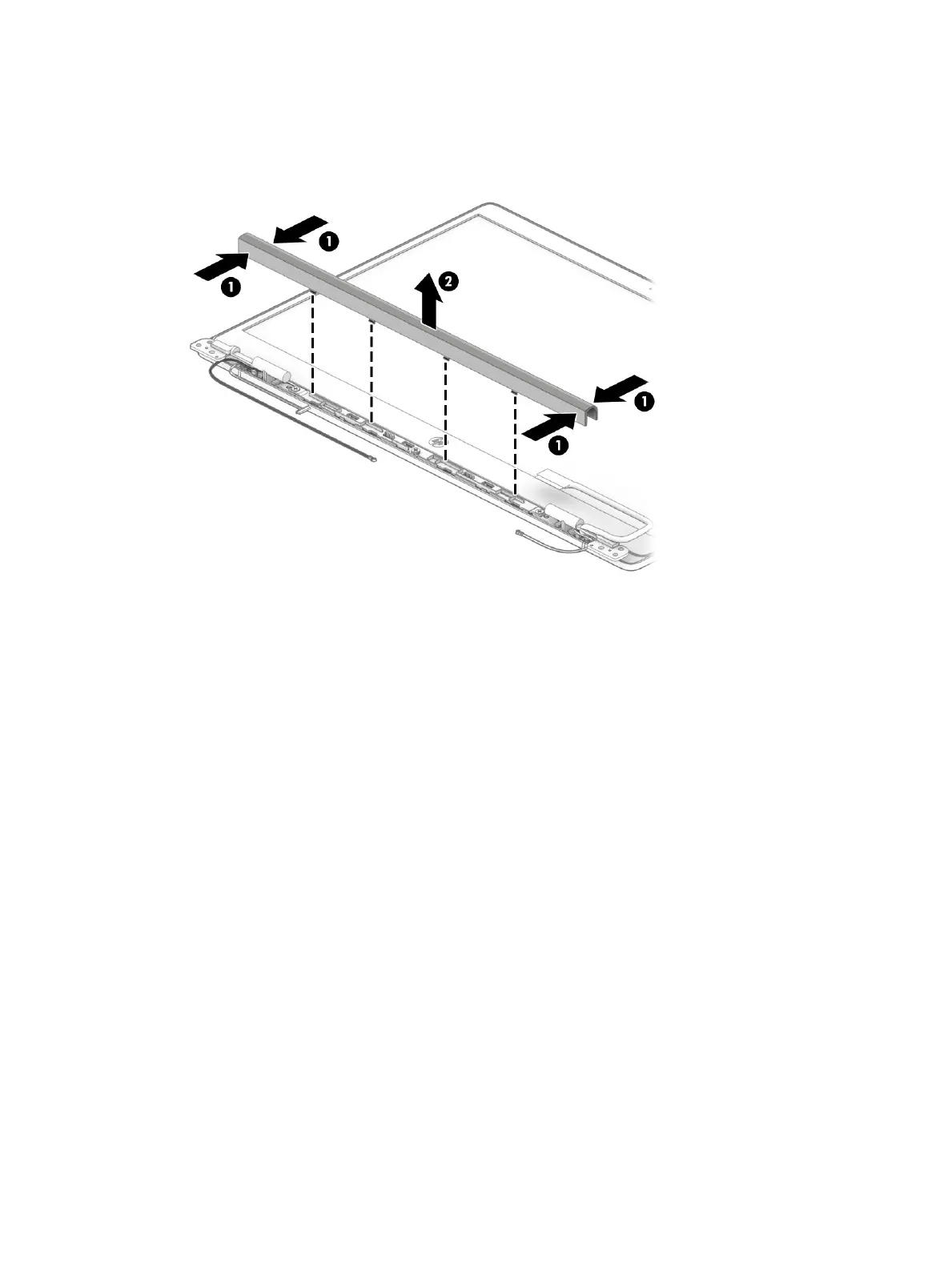

10. If you need to remove the hinge cover, squeeze near both ends of the cover (1), and then pull the cover
o the hinges (2).
The hinge cover is available as spare part number M35760-001.
11. If you need to remove the display panel:
a. Lift the bottom of the panel (1).
b. The display panel is secured to the display enclosure with tape that is installed under the left and
right sides of the panel. To remove the panel, use tweezers to grasp the end of the tape (2). While
turning the tweezers, wrap the tape around the tweezers (3) as you continue to pull the tape out
from behind the display panel (4). You must pull the tape multiple times before it is completely
removed.
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
